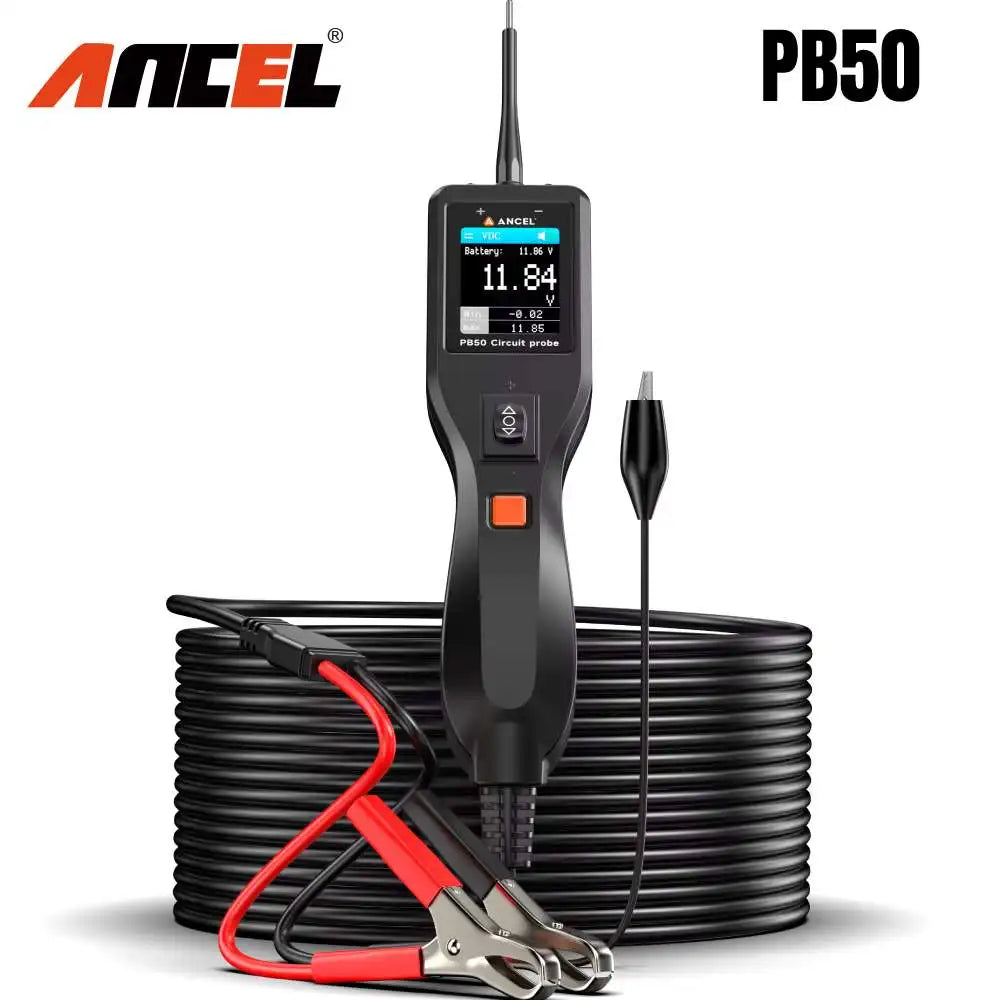

ANCEL PB50 12/24V Car Electric Circuit Tester Probe Pen Tester Voltage Resistant Test Voltage Power Probe Kit Car Battery Tester

With the PB50 probe tester, you can check voltage and ground signals in a typical DC circuit. However, the kicker is that you can also use it to send voltage and ground signals. It works like a test light that can power circuits or provide a good known ground. This way, you can effectively test components and circuits without having to break out the old alligator clips and jumper wires. You can power or ground a circuit directly through the top of the device.

ANCEL PB50 Product Function:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

✔️DC voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

✔️AC voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. Voltage and frequency.

✔️Resistance

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

✔️Diode

In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reversebias.

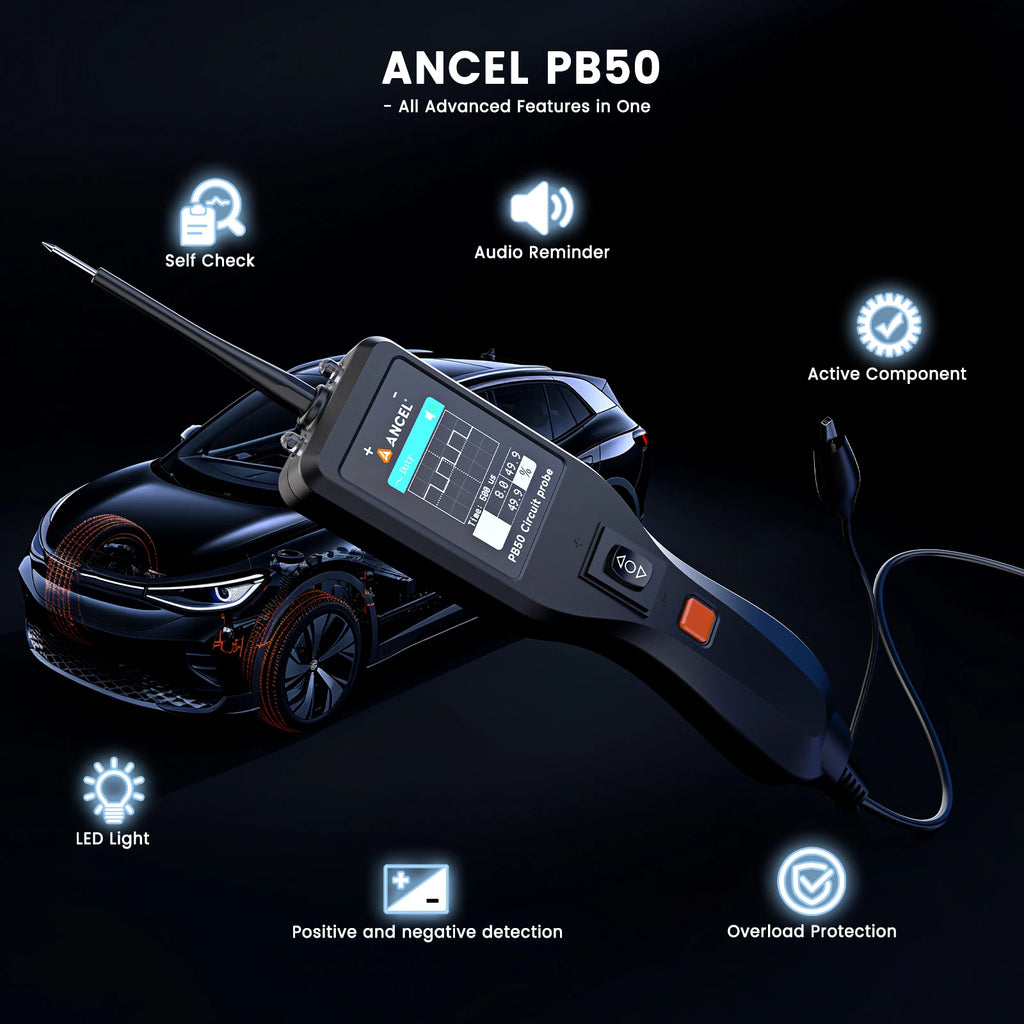

ANCEL PB50 Electrical System Circuit Tester Functions:

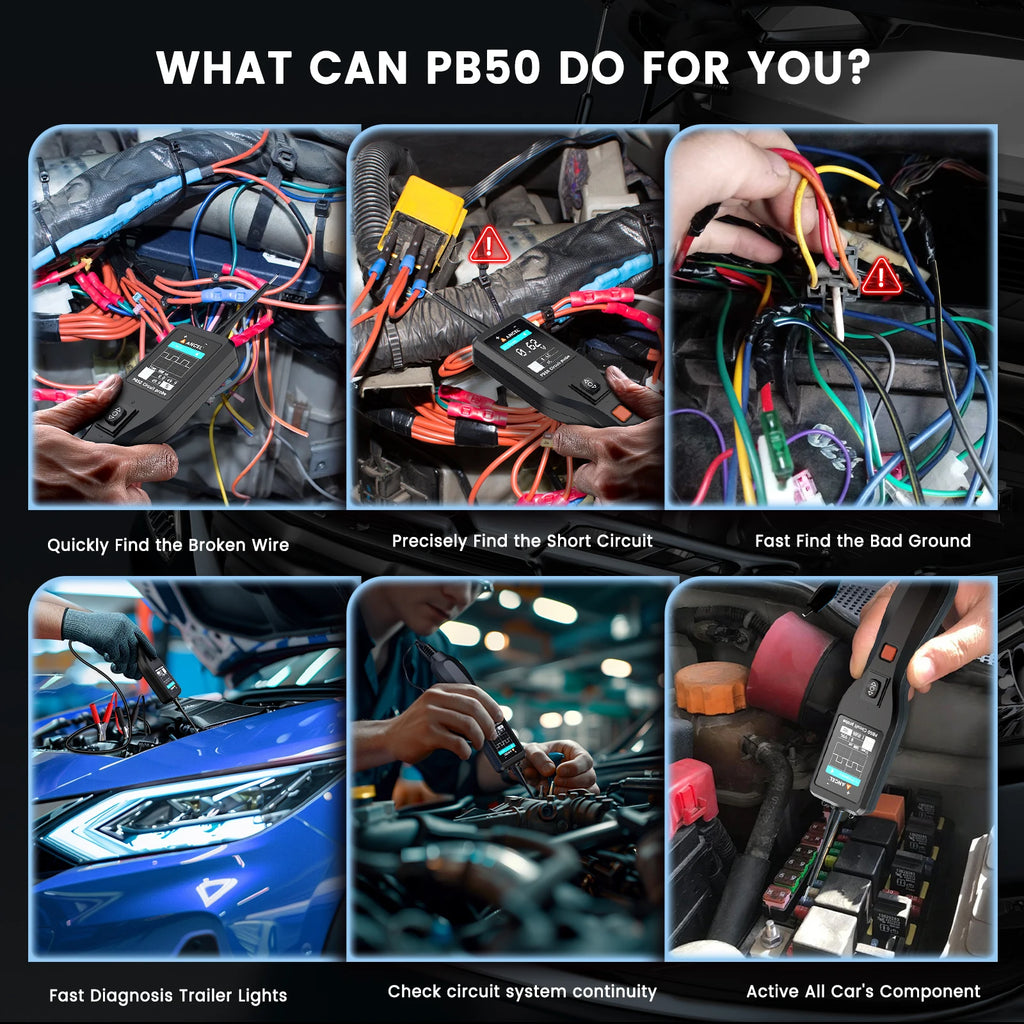

1. Power injection, measuring, ground testing, polarity checking, continuity testing and component activation.

2. Read the AVO meter, voltage, current, and resistance.

3.Energize the electrical components, such as the cooling fan, relay etc.

4. Activate the components

5. Determine the positive, negative and open circuit.

6. Test the bad ground contacts, follow and locate short circuits without wasting the fuse.

7. Test the continuity of the power switch, relay and diode.

8. Protect the tool from overload.

9. Allow you to work in the dark area by using the built-in head light.

10. Test along the vehicle by the long cable.

Quick diagnosis, save time and money!

This PB50 is the savior of your old car wiring problems, making your repair work easy and fast!

4 IN 1 Multi-Function, Double Efficiency!

Whether it is tracing circuits or identifying damaged parts, our probe is the ideal choice for DIY enthusiasts, electricians and technicians.

Activate Components

It sends an activation signal to check if components are okay. You can activate all sorts of components on hand/vehicle/ground, like turning on car lights, getting motors spinning, making windshield wipers swipe, and radiator fans whirl – you name it!

The new ANCEL PB50 probe circuit tester adds multiple test functions to the traditional probe, and has built-in short-circuit protection, which can provide you with a safer diagnostic environment! In addition, this probe can also support most 12V & 24V vehicle electrical tests

Comfort & Convenience Design

The ANCEL PB50 has a design that's out of this world! It's ergonomic, so it feels great in your hand. The interface has been spruced up with larger and more intuitive fonts, making it a breeze to read. Built-in flashlight on its top – it's like a little sunbeam that lights up the surrounding environment, providing the best view in darkness.
