TWO TYPES DITEC

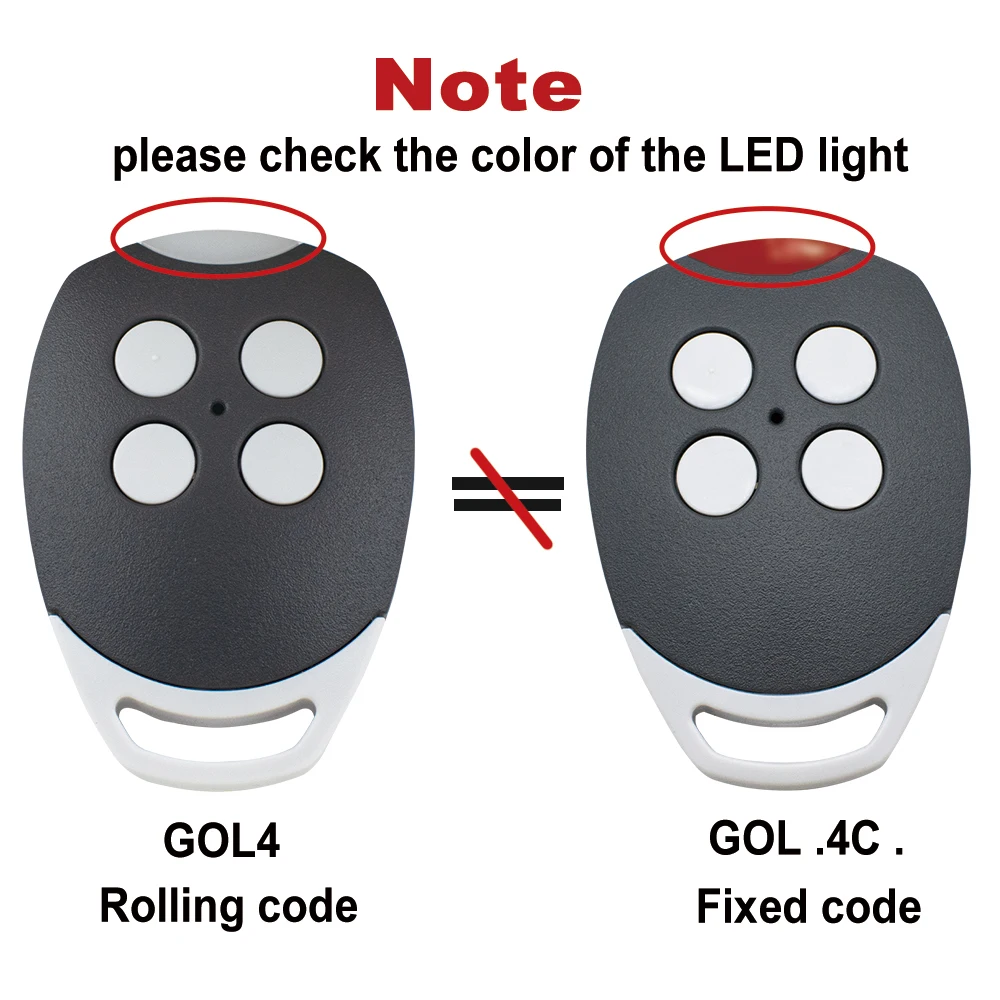

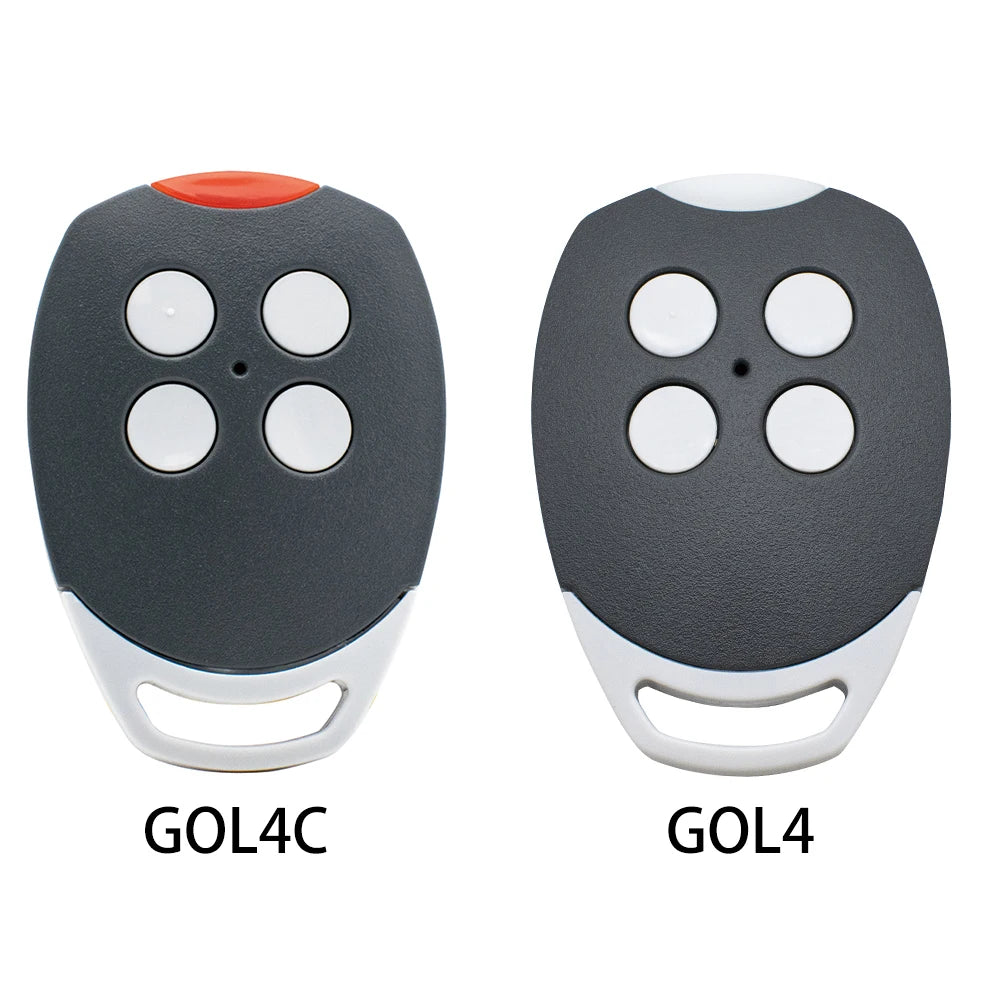

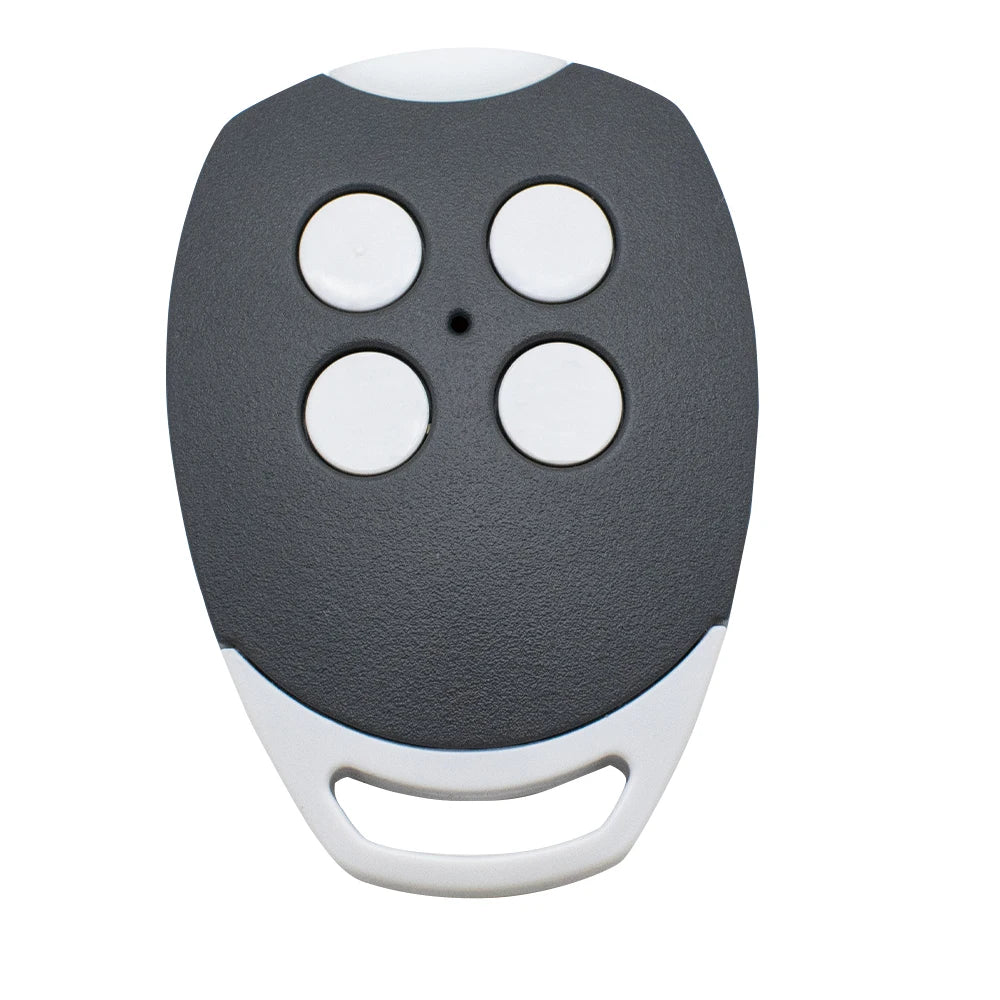

White lampshade is rolling code GOL4

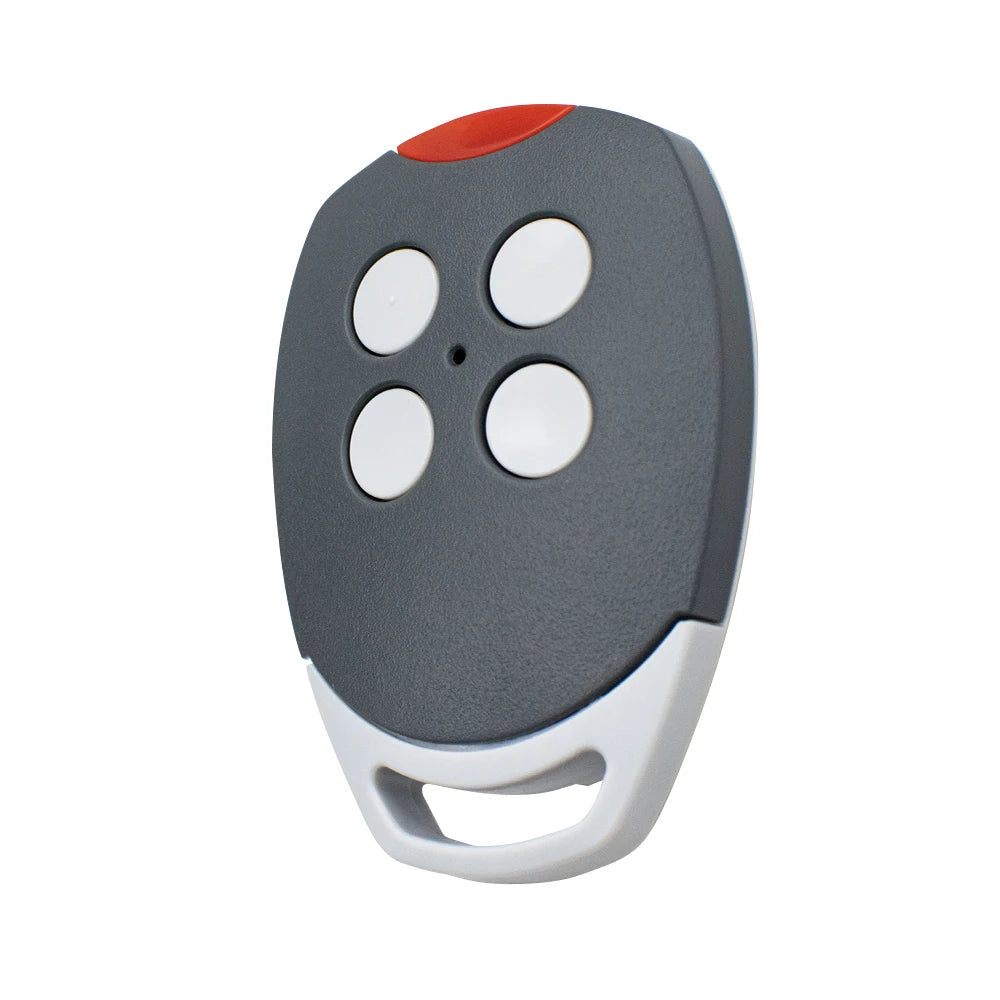

Red lampshade is fixed code GOL4C.

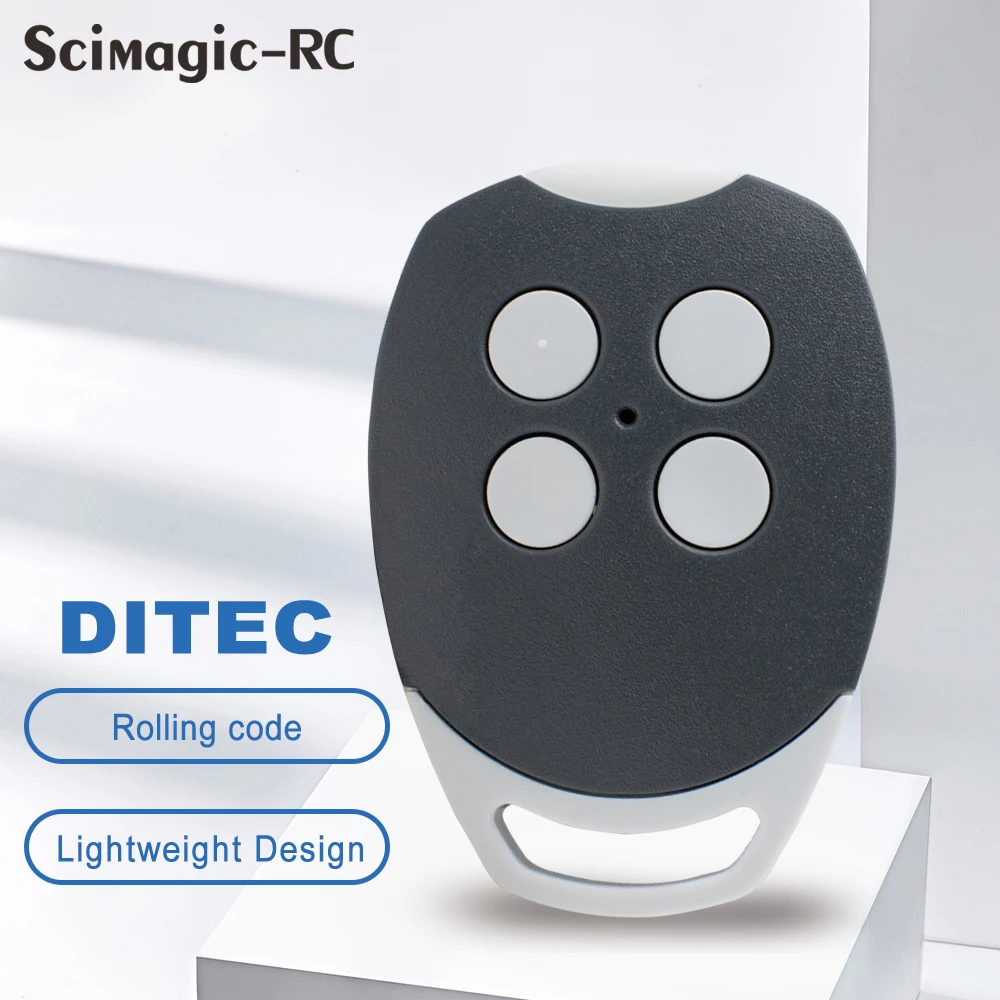

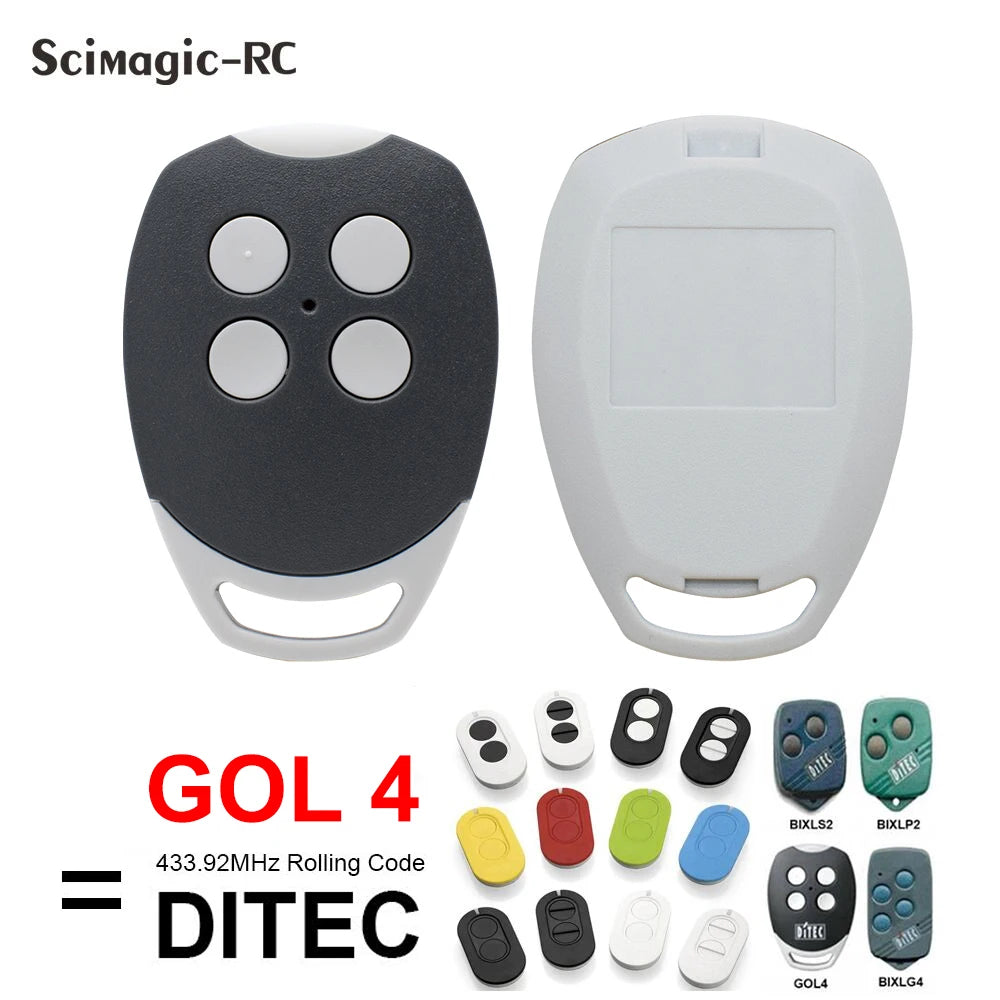

Style1: Rolling Code DITEC GOL4

[ 100% Compatible ]
DITEC GOL4
DITEC BIXLG4
DITEC BIXLP2
DITEC BIXLS2
DITEC Entrematic ZEN 2 / ZEN 4 / ZEN2W / ZEN4W

[ Direct programming use ]
You don't need your original remote control, use it directly after programming on the receiver

[ Three different styles ]
You can choose between two different styles of remotes

[ Long distance ]
If used with antennas, or outdoors in open areas, it can reach 30-100m（Errors may occur in different environments）

[ Quality assurance ]
If there is a quality problem, contact us for a refund or send a new remote control

Feature:

1. Free Battery
2. Free Coding Instructions
3. Free Keychain
4. Three different styles
5. In-built Battery
6. Button Protector（Style1）
7. Free Clip(Style2),
8. Easy to replace the battery(Style2)
9. Program the remote control on the receiver
10.100% Compatible

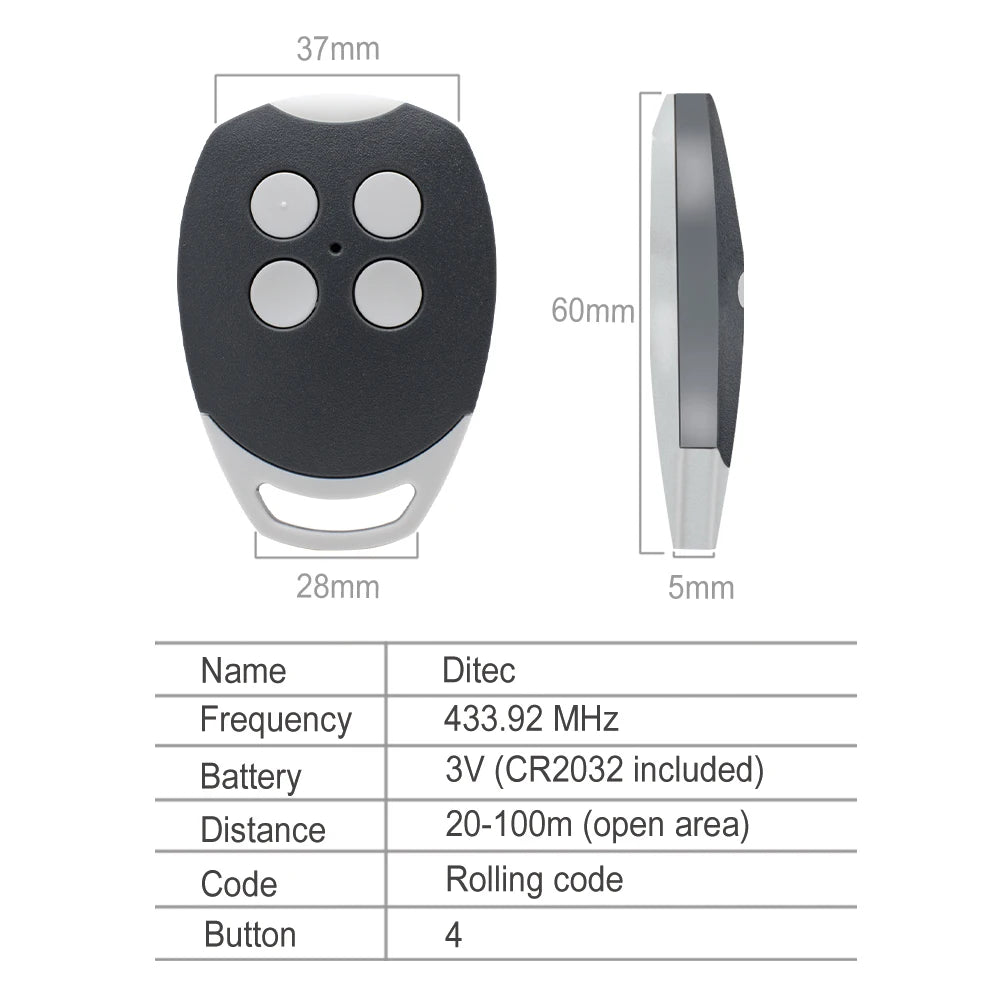

Description:

1.Type of programming: Programming with the receiver
2.Number of channels: 4
3. Code: rolling code
4. Frequency: 433.92mhz
5.Woring Range: 10-50 m (open space)

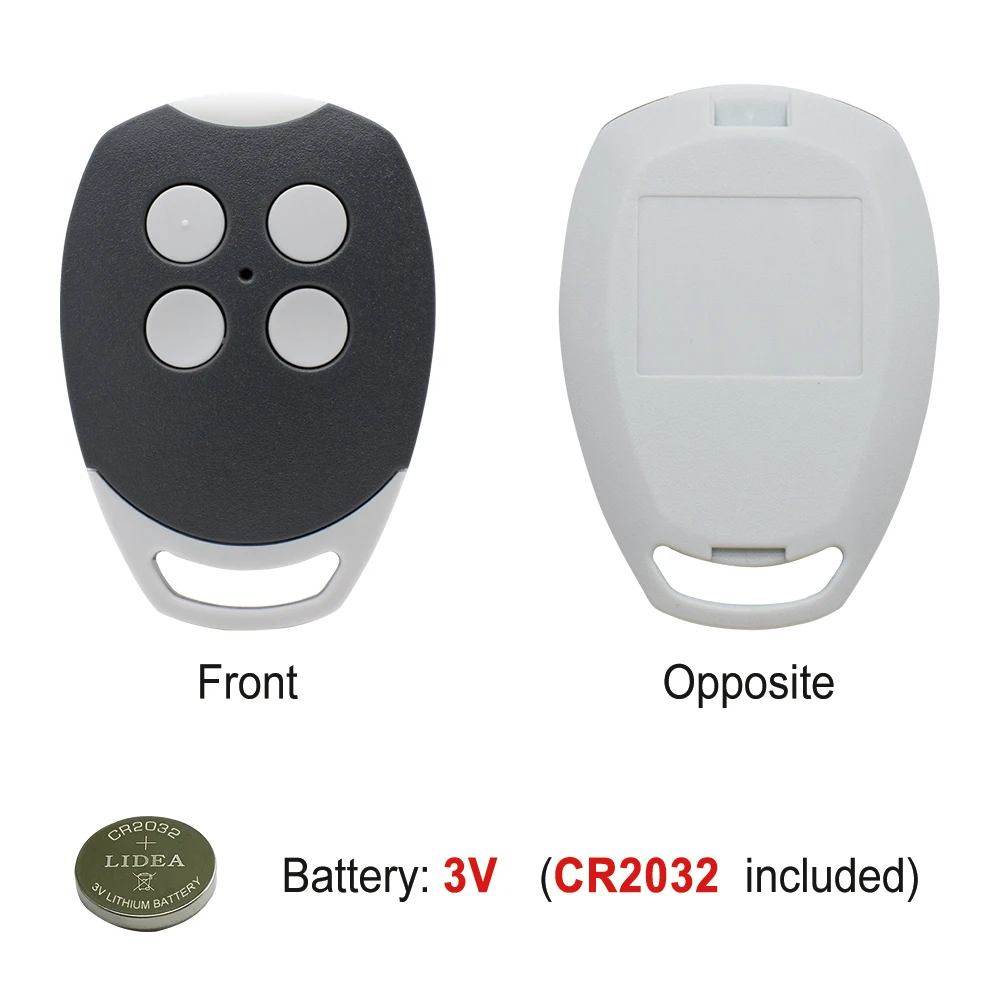

6.Power supply: CR2032
7.Remote come with Battery !!!
Security of use: dynamic code provides a high level of security, non-copyable code.
Disclaimer:Your Old remote must be same as the advertisement , new remote do not compatible with other remotes .

How to use our remote control

Program to Gate Garage Door Openers the same way as original DITEC Transmitter remotes,
please refer to your receiver's user manual.

1.Open the control box & locate the receiver - Ensure that jumper JR6 on the receiver board is on

2.Press the black PRG button for 5 seconds - Press the button on the new remote you wish to activate the device for 5 second

3.Wait for 10 seconds for receiver to reset & test

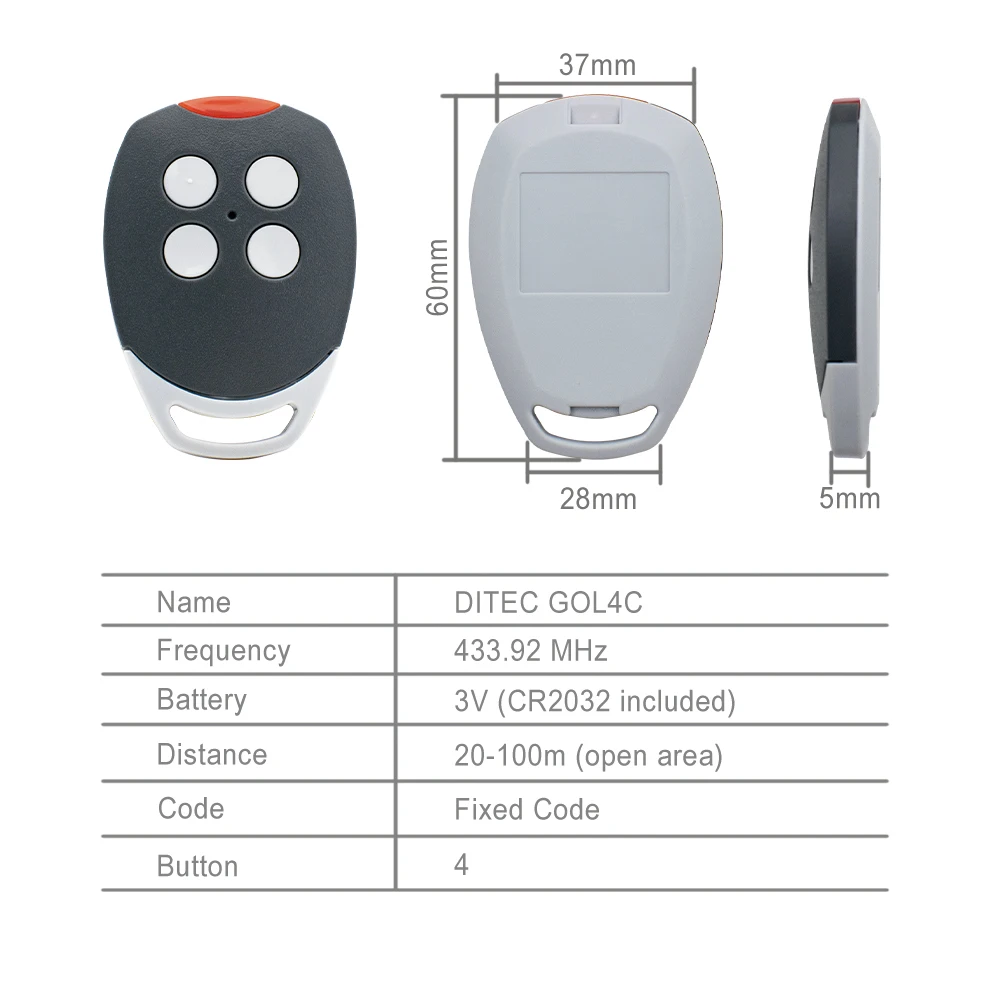

Style2: Fixed Code DITEC GOL4C

Feature:

1. Free Battery
2. Free Coding Instructions
3. In-built Battery
4. face to face clone your original remote
5.high quality
6.Breakage Compensation

Description:

1.Usage: Cloning
2.Number of channels: 4
3. Code: Fixed code
4. Frequency: 433.92mhz
5.Woring Range: 20-50 m (open space)
6.Power supply: CR2032
7.Remote come with Battery !!!
Security of use: dynamic code provides a high level of security, non-copyable code.

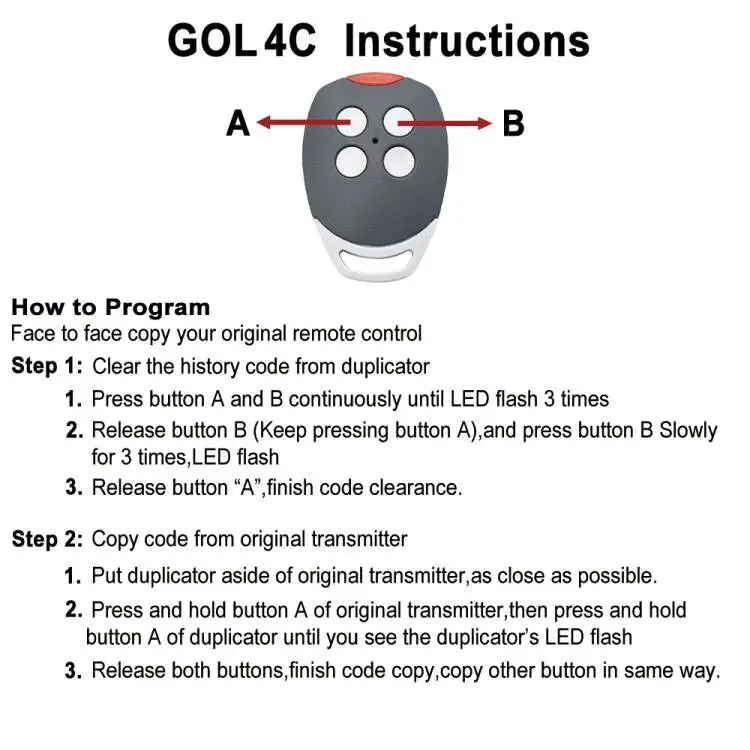

How to use our remote control

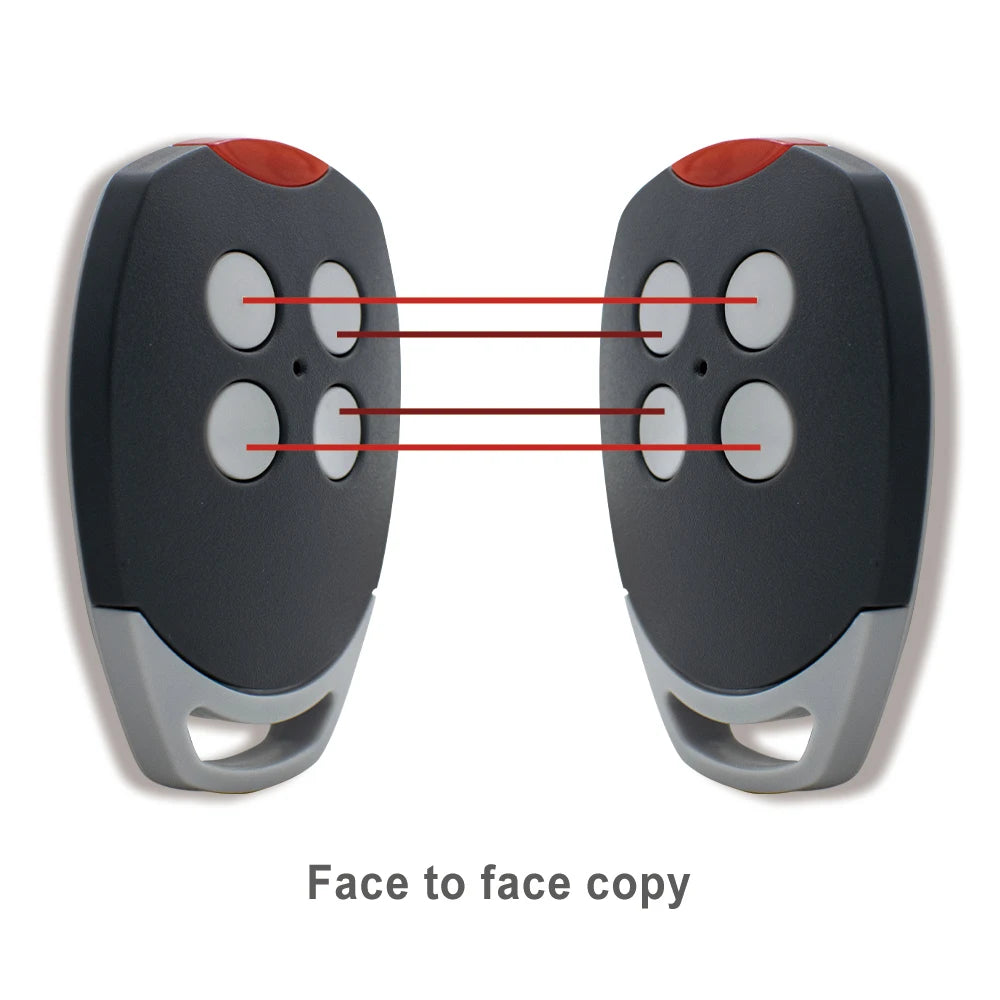

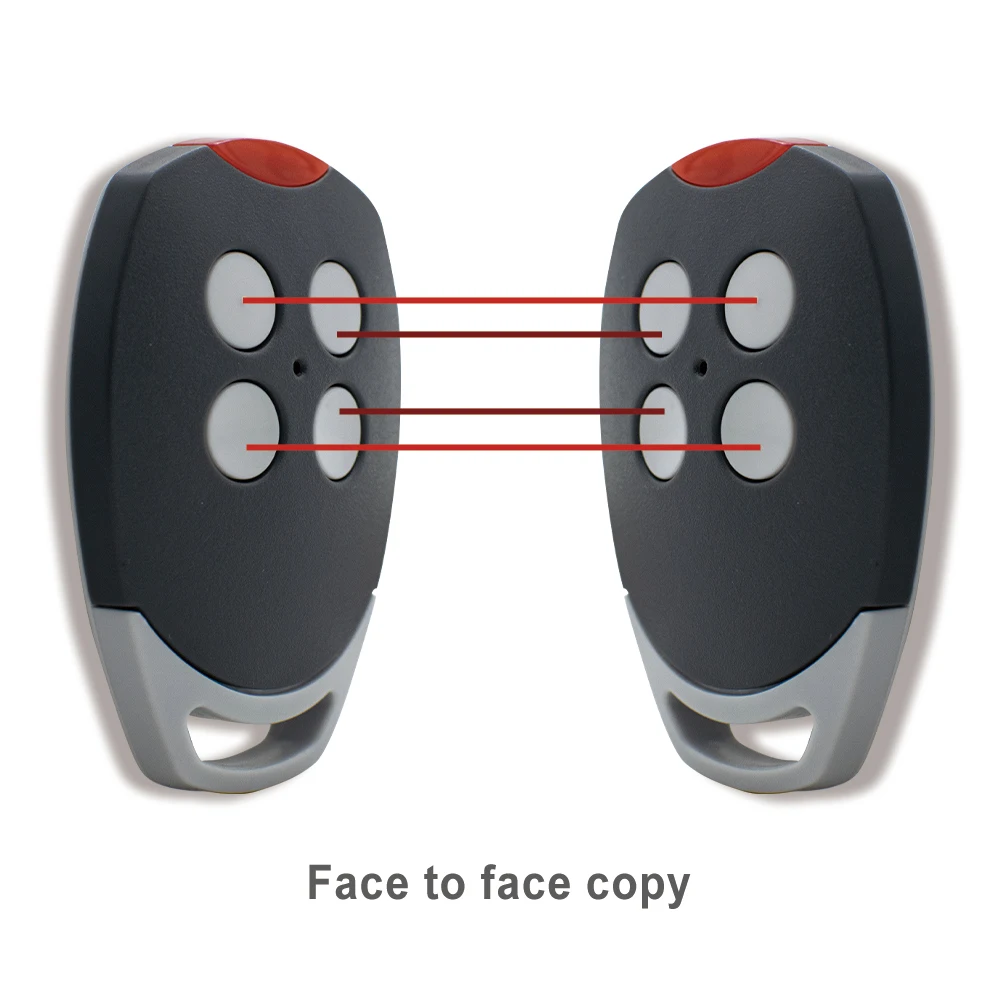

Face to face copy your original remote controlStep 1: Clear the history code from duplicator
1. Press button A and B continuously until LED flash 3 times
2.Release button B(Keep pressing button A),and press button B Slowlyfor 3 times,LED flash
3.Release button“A",finish code clearance.
Step 2: Copy code from original transmitter
1. Put duplicator aside of original transmitter,as close as possible.2.Press and hold button A of original transmitter,then press and holdbutton A of duplicator until you see the duplicator's LED flash
3. Release both buttons,finish code copy,copy other button in same way.

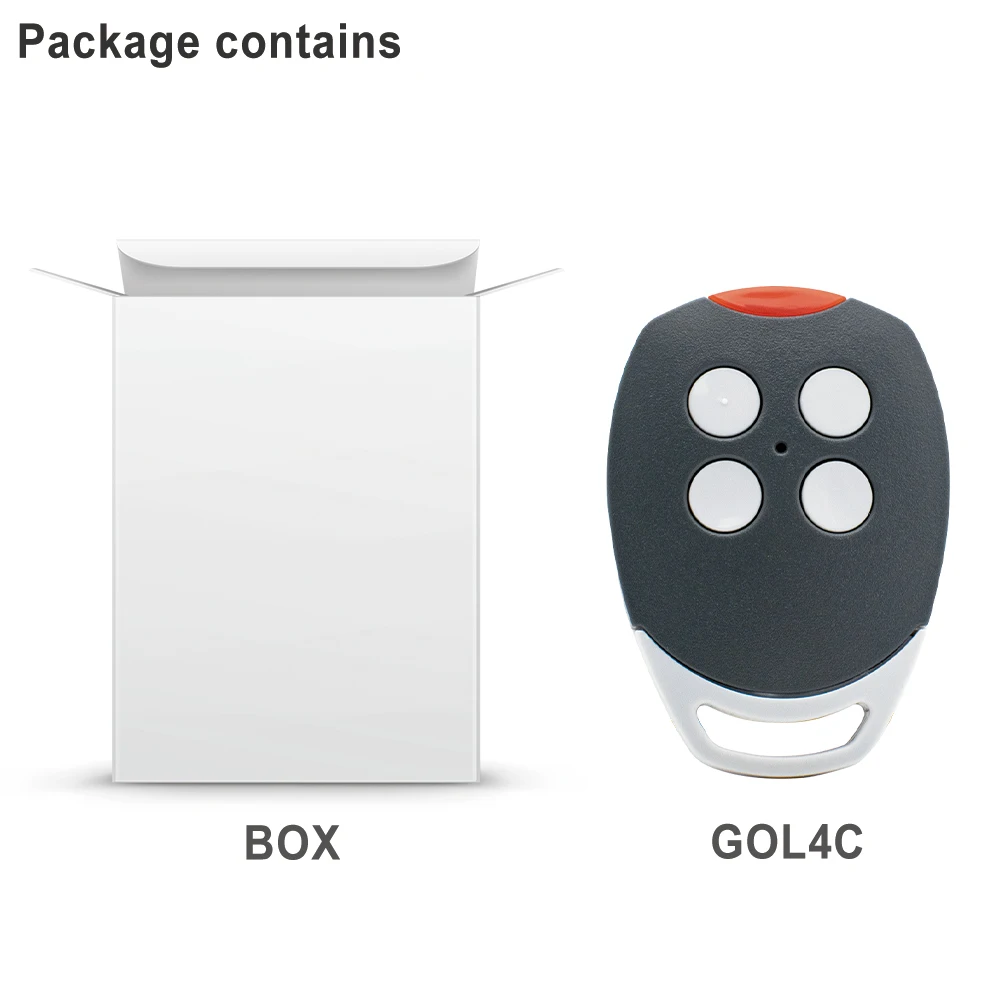

Include

Remote Control
Battery
Key chain
English Manual

Professional remote control certificate
