NOYAFA NF-8209S Network Cable Tracker Lan Measure Tester Network Tools LCD Display Measure Length Wiremap Tester Cable Tracker

Save 20%
EastSupplier PlatformSKU: 1005004885500046-NF-8209S-5015A-China Mainland

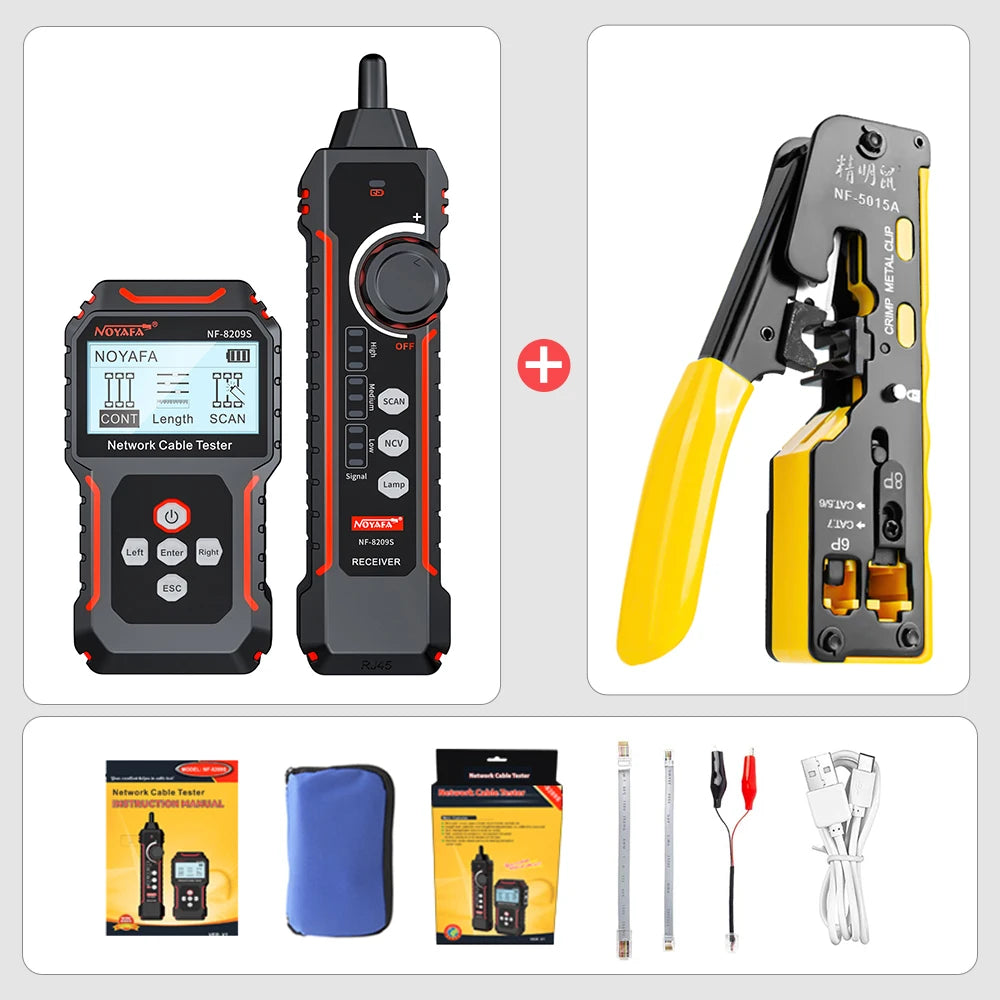

Color: NF-8209S-5015A
Price:
$155.62 $194.53

Tax included Shipping calculated at checkout

Stock:
In stock

Description

SPECIFICATIONS

Battery Included: Yes

Brand Name: NOYAFA

Certification: CE

Function1: network cable tester

Function2: Cable tester

Function3: lan tester

Function4: Cable tracker

High-concerned chemical: None

Input Voltage: <50VAC/75VDC

Is Smart Device: Yes

Model Number: NF-8209S

Model Number2: NF-8209S

Origin: Mainland China

Port 1: RJ45, RJ11

Port 2: Port Flash

Type: PoE Splitter

is_customized: Yes

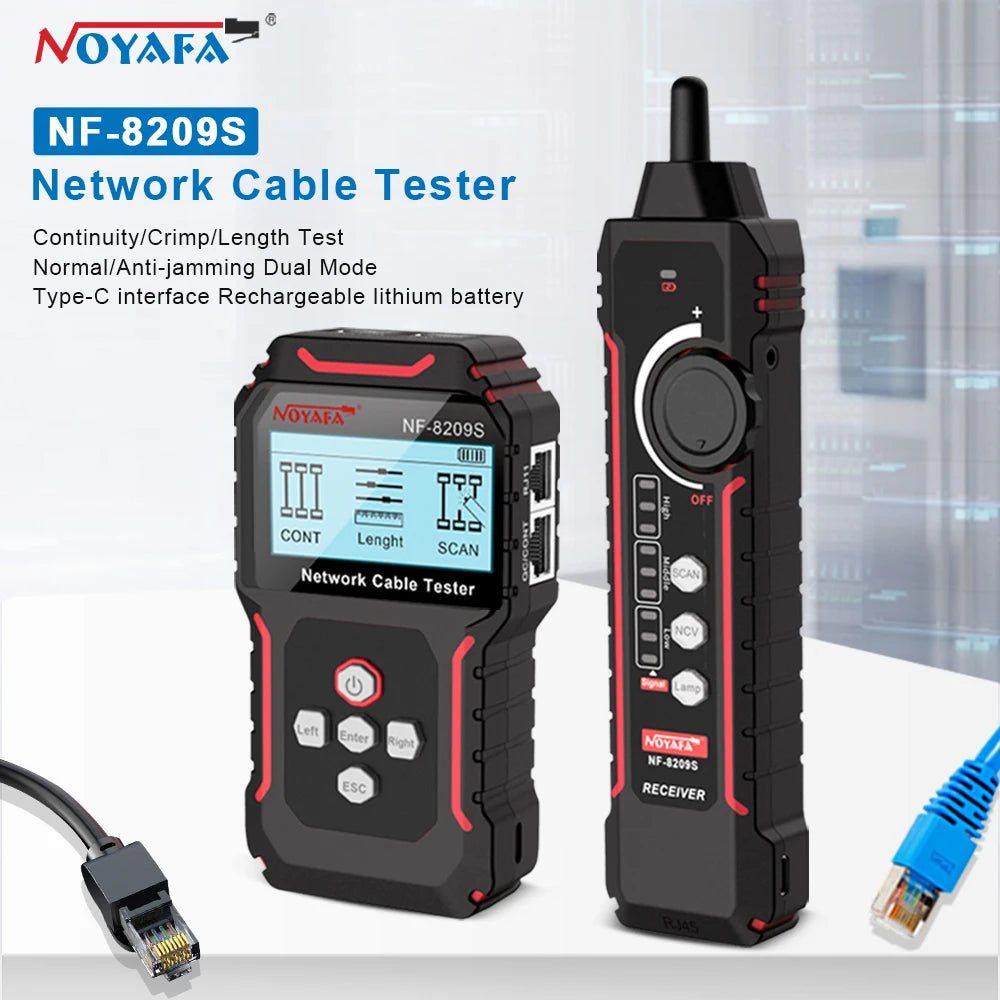

NF-8209S is a new generation to offer digital and analog signaling all in onenetwork toner and probe.It has three modes for options to track cable like digital mode, analog mode and PoE mode.That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement, cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.



Product Features:

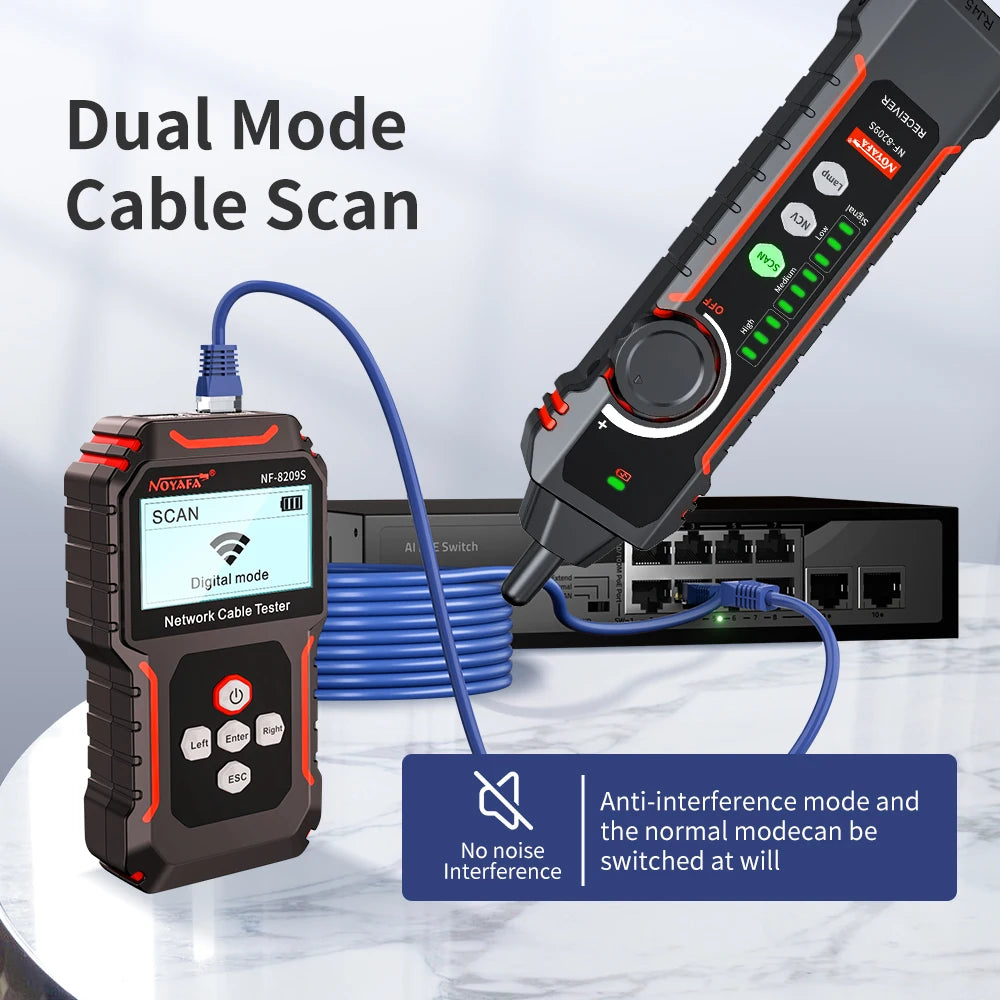

1.Dual scan modes selectable: AC filter & Non AC filter.

2.Detect AC voltage presence (70V-1000V).

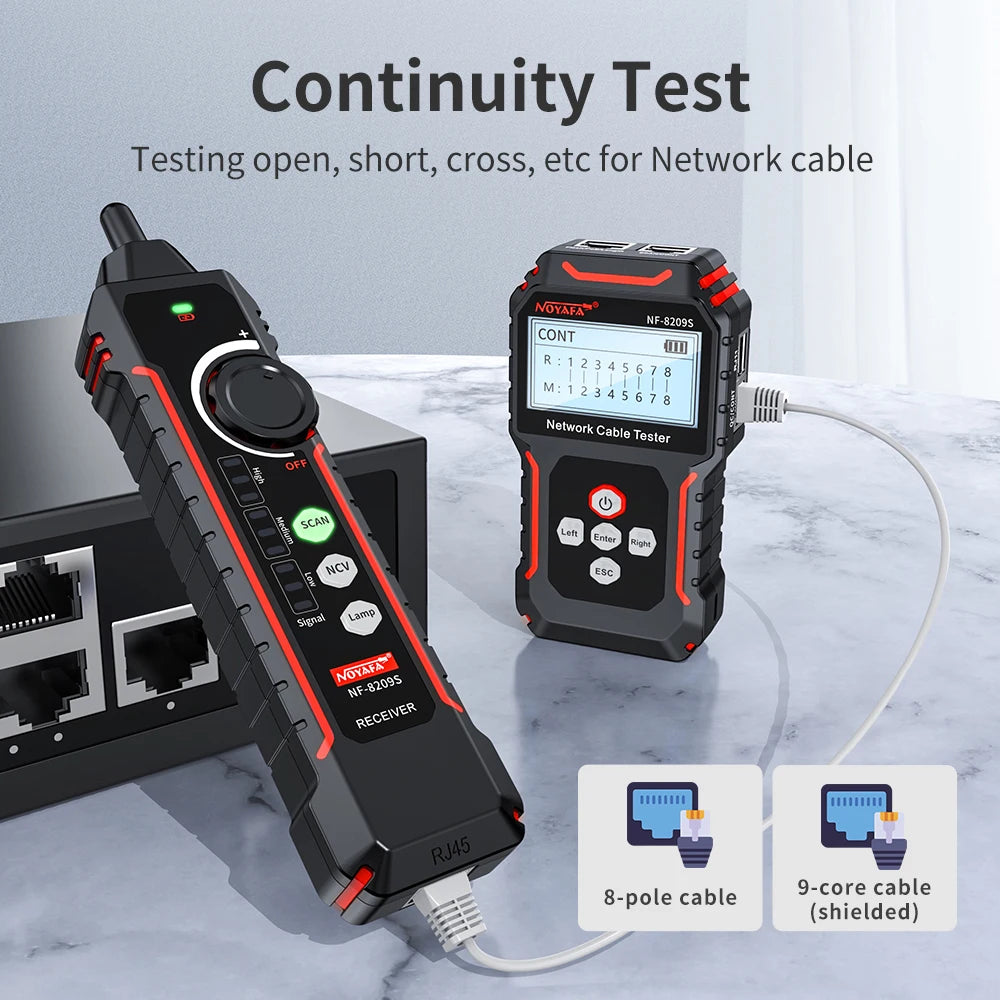

3.Test physical status for STP, UTP lan cable.

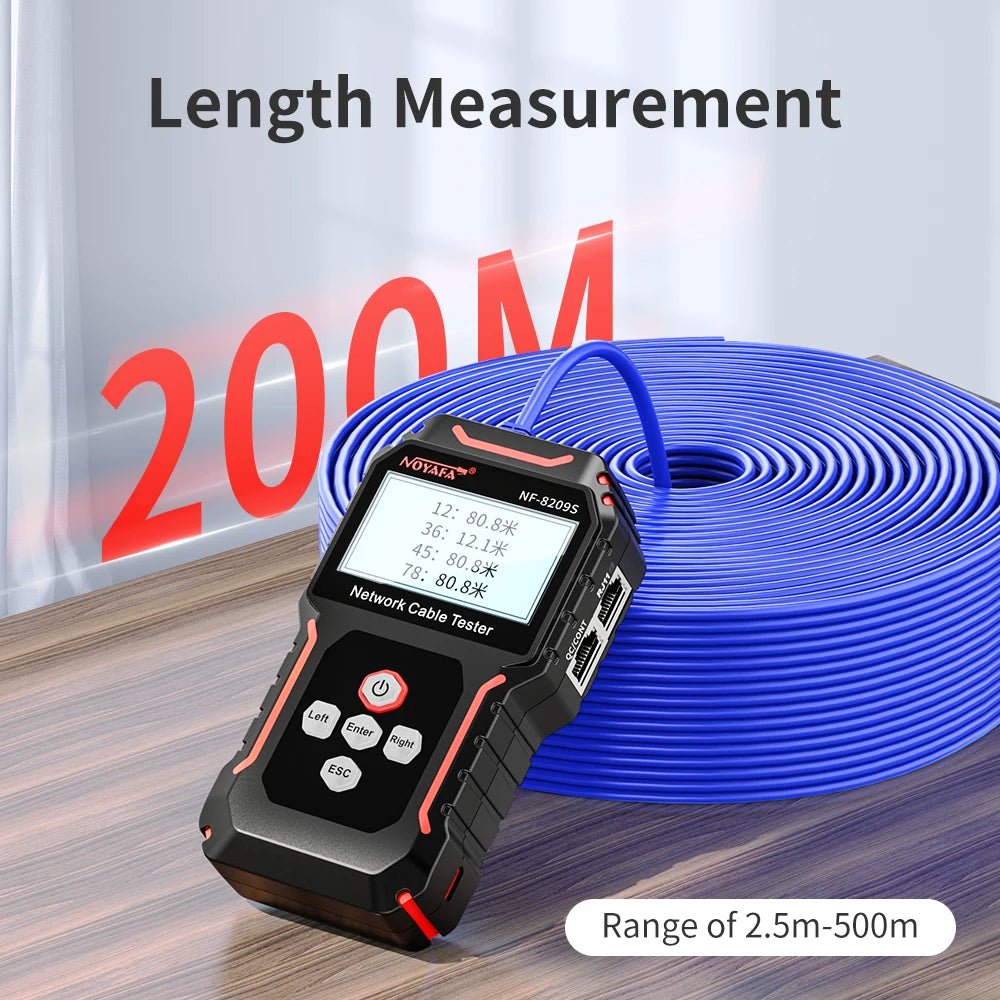

4.Measure cable length accurately , the range is 500m.

5.Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.

6.PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).

7.Quallity verify the crimping crystal.



Product Parameters:

Size: 125 * 70 * 32mm / 4.92 * 2.76 * 1.26in

Test Range: 2.5~500m

Cable Type: CAT5, CAT6, (STP & UTP)

Auto-off Time: 15min/30min/60min/OFF

Voltage Protection: DC48V, 5mA

Max. Working Current: <150mA

Sensitivity Adjustable: Yes

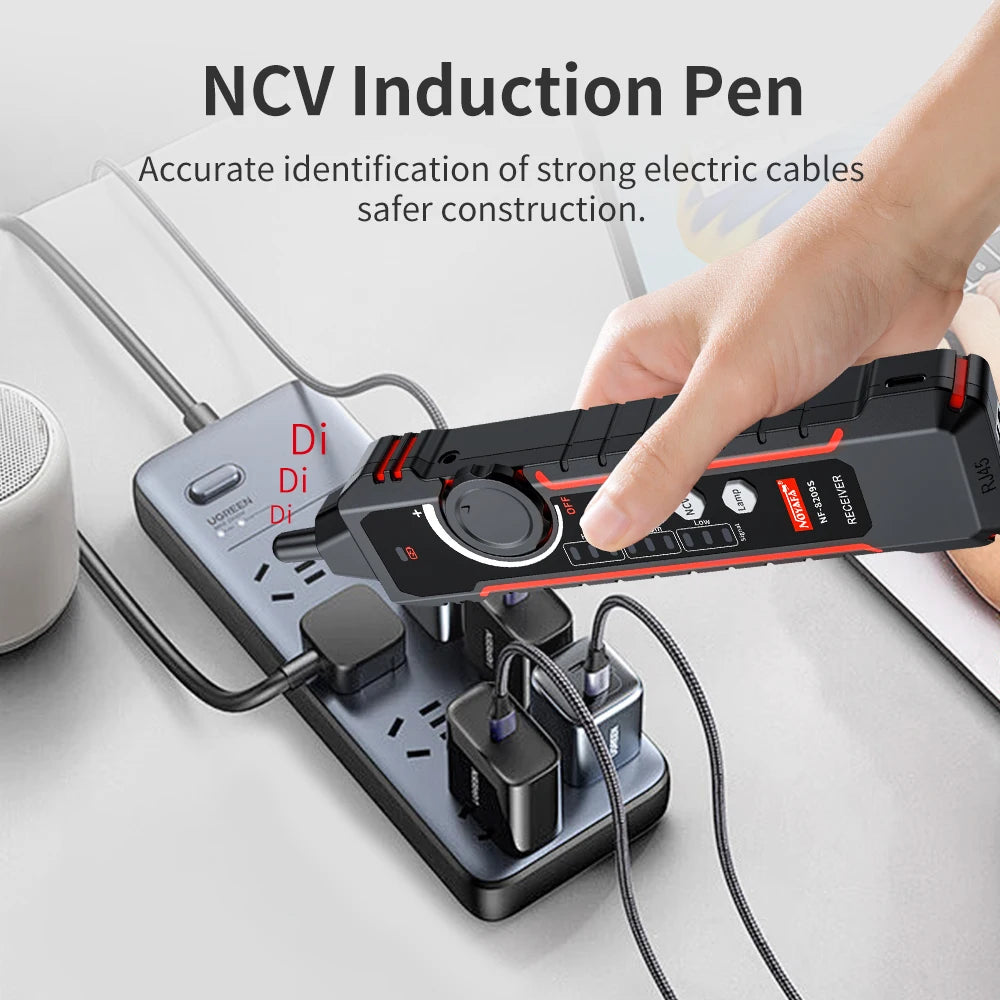

NCV:AC 70V~1000V 50/60Hz

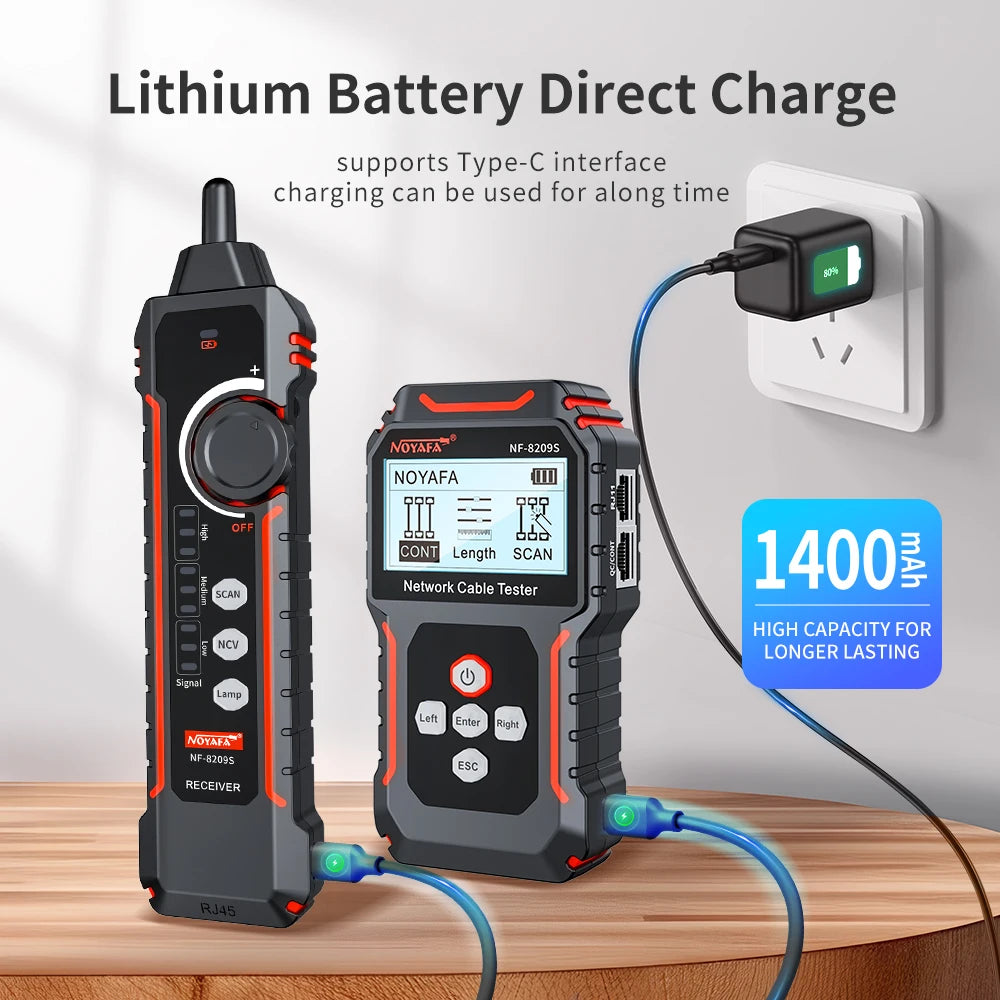

Charging method:DC 5V 1A Type-C

Power Supply: 3.7v 1400mAh lithium battery

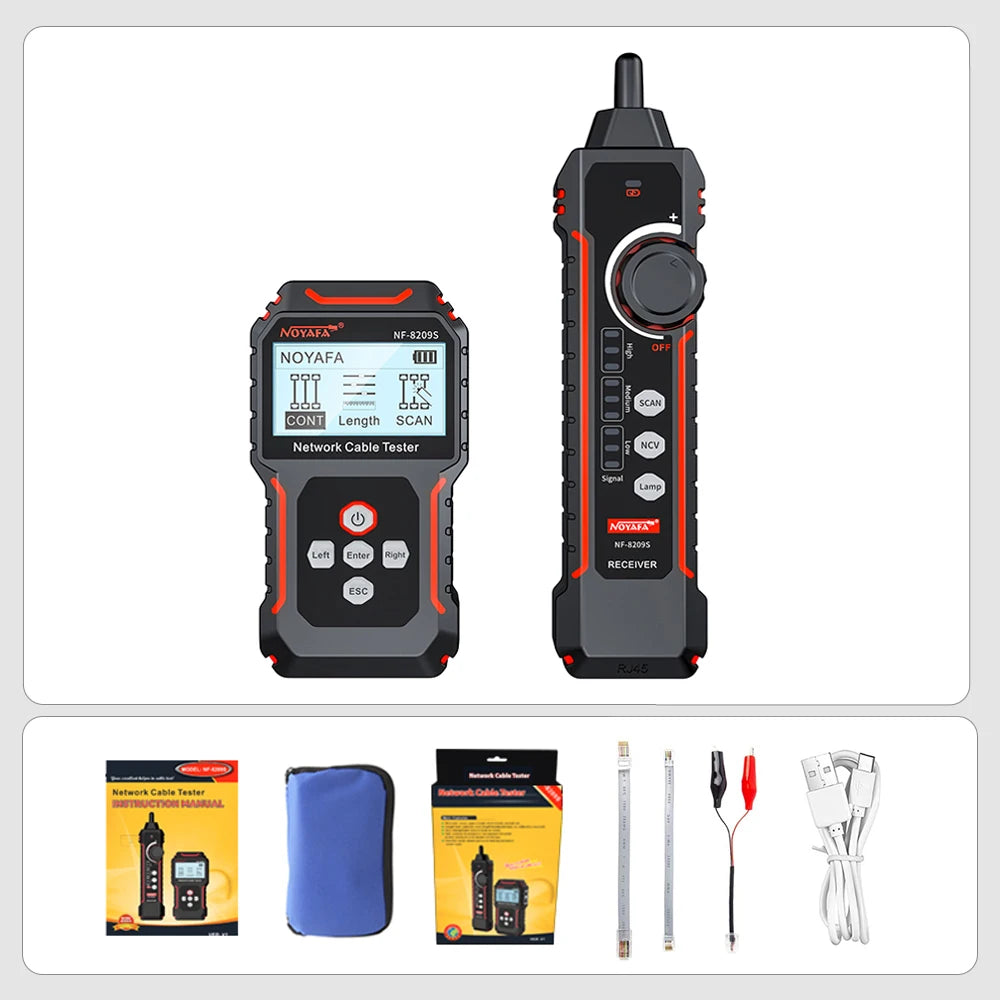

Packing List:

1Pcs x NF-8209S Cable Tester

1Pcs x Earphone

1Pcs x Charging line

3Pcs x Cable adaptors

1Pcs x Toolkit

1Pcs x Manual(English)
