Description
Light Is Not Just Illumination. It Is a Tool of Precision. When a venue demands more than ambient glow — when every hue must land with surgical accuracy, every wash must fill its geometry without bleed — you need instruments that treat color as a command, not a suggestion. The Chroma Battalion delivers exactly that: four 200-watt LED heads, each packing 18 high-output 8W RGBW diodes, orchestrated through DMX512 with the authority of a lighting console that means business.

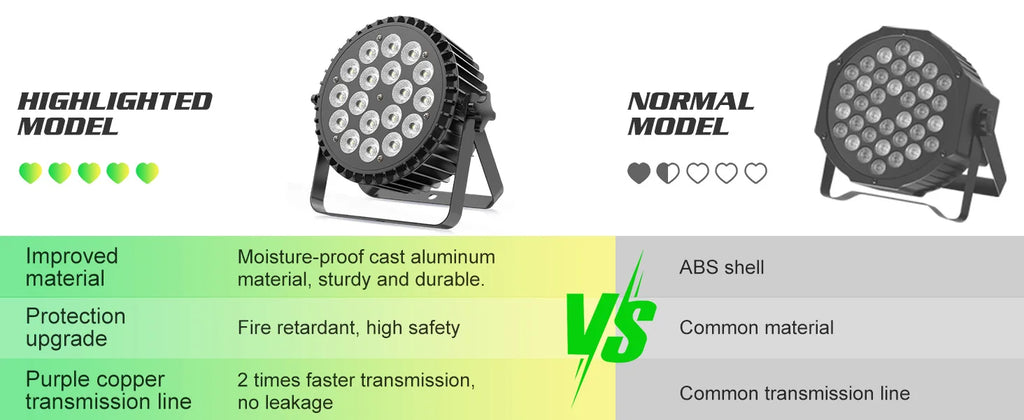

These are not the disposable plastic cans that ship with entry-level DJ kits. Each fixture in this quad-set is built around a die-cast aluminum chassis with active thermal management — silent fans that pull heat away from the diode array even when all four color channels run at full tilt for hours. The RGBW configuration is the critical detail here: unlike RGB-only fixtures that fake white by mixing primaries into a muddy approximation, the dedicated white channel gives you true 3000K–6500K variable white with independent intensity control. For wedding uplighting, gallery installations, or any application where skin tones matter, this is the difference between "close enough" and "the client never asks for a redo."
The DMX512 protocol support means this quad integrates into any professional lighting rig — whether you are running a GrandMA console on a festival main stage or a laptop-based DMX interface in a converted warehouse. Auto mode, sound-active mode, and master-slave chaining are all supported for quick-deploy scenarios, but the real magic happens when you program scene-by-scene: each fixture draws 200W from its internal power supply, meaning the full array consumes under 800W — a single 15A circuit is more than enough for the entire battalion and then some. No three-phase power, no generator anxiety, no compromises.
This is not a party light. It is a spectral instrument engineered for people who get paid by the lumen.
Key Features
- ✦ Quad-Fixture Array: Four independent 200W LED heads — enough wash coverage for venues up to 500 capacity without supplemental fixtures

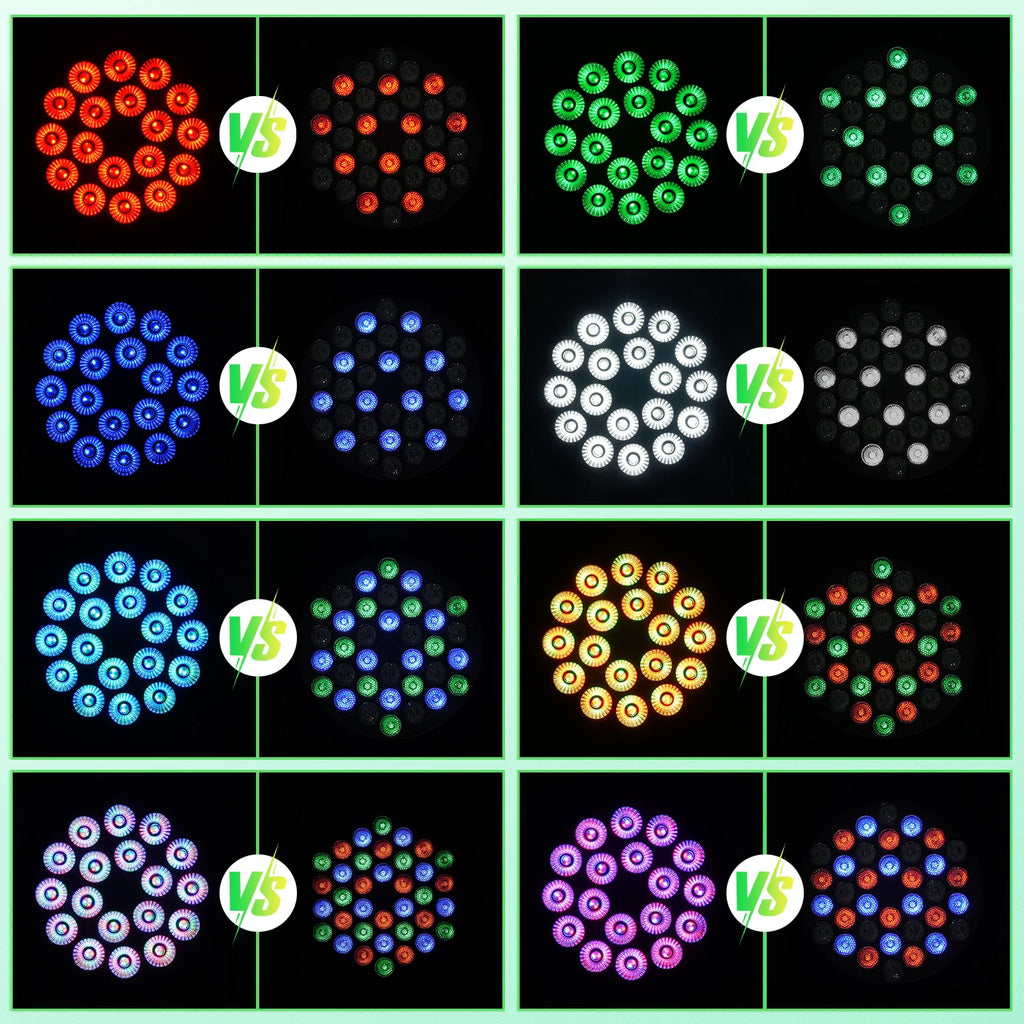

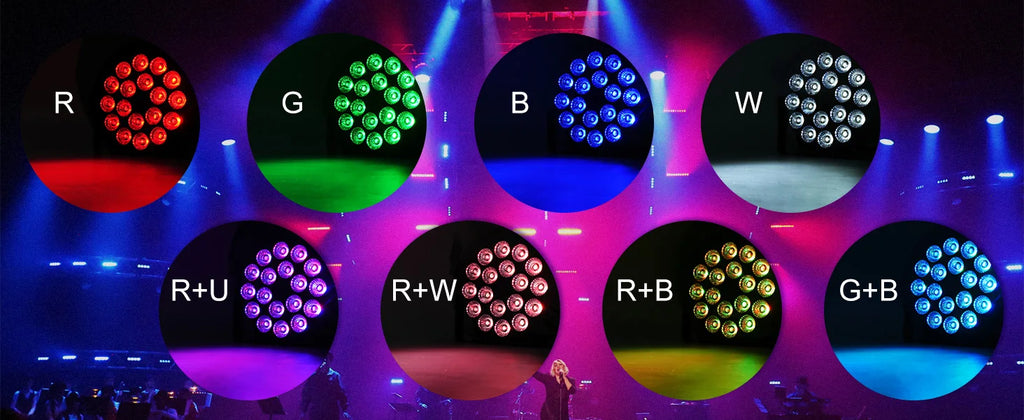

- ✦ 18×8W RGBW Diodes Per Head: True quad-color mixing with a dedicated white channel (3000K–6500K) — no RGB-only white approximation artifacts
- ✦ DMX512 Protocol: Full console integration with addressable channels per fixture — compatible with GrandMA, Avolites, ChamSys, and software-based controllers

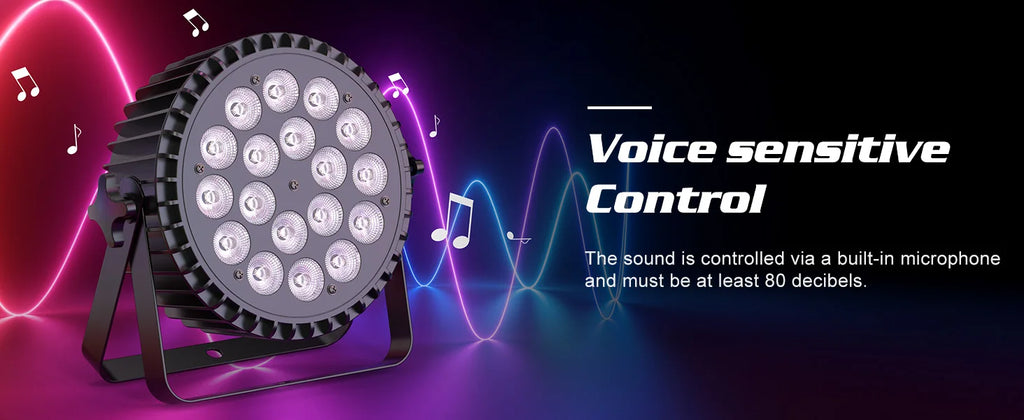

- ✦ Multi-Mode Operation: DMX control, auto-run, sound-active, and master-slave chaining for deployment flexibility from theater to mobile DJ

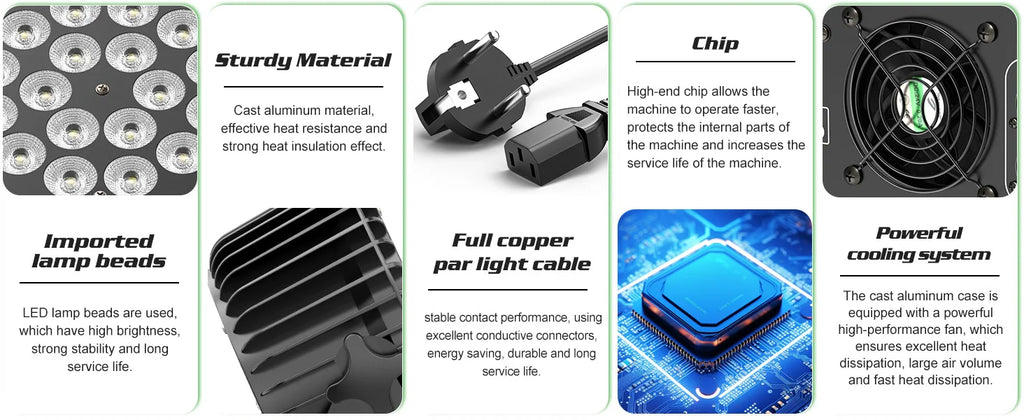

- ✦ Die-Cast Aluminum Housing: Professional-grade thermal management with silent active cooling — rated for continuous 8+ hour operation
- ✦ Single-Circuit Operation: Full quad array draws under 800W — runs comfortably on one standard 15A circuit with headroom for audio gear

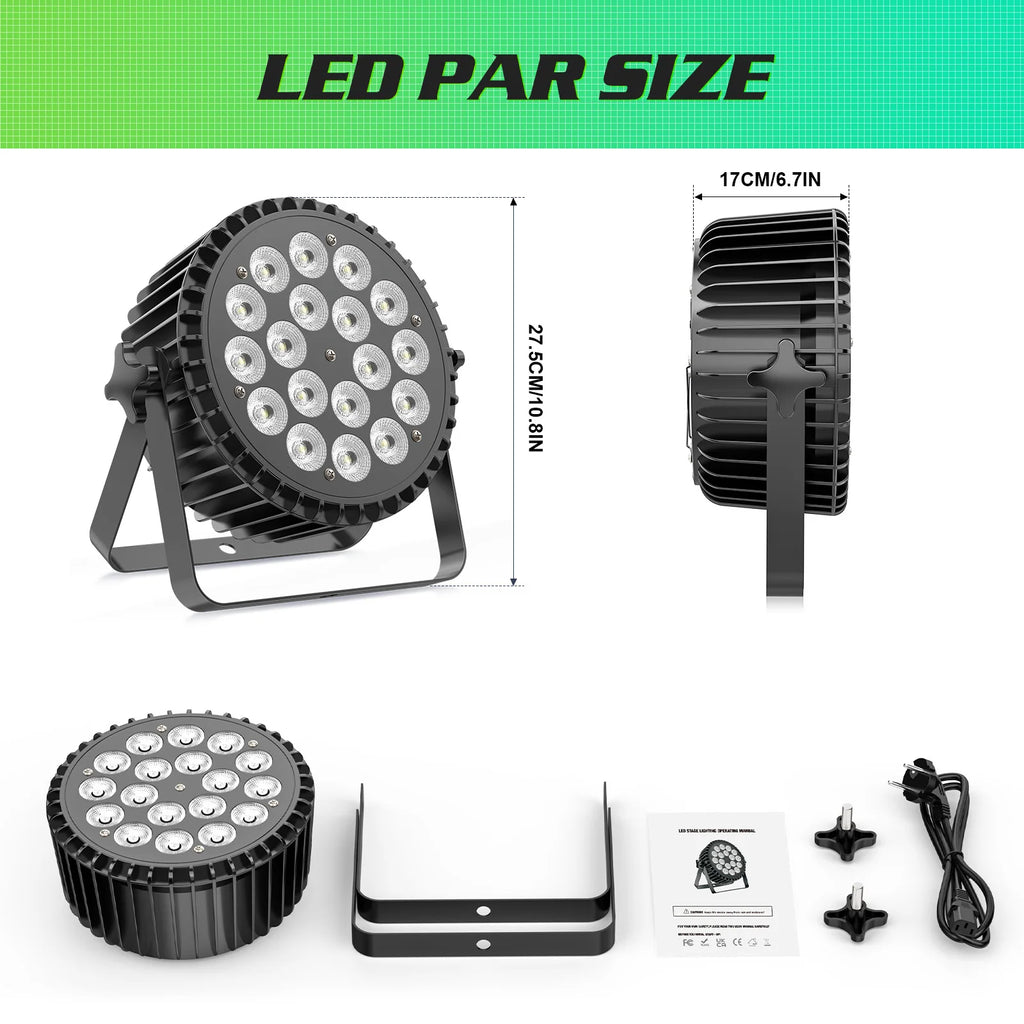

- ✦ Flat Par Design: Low-profile form factor for truss mounting, floor placement, or architectural integration — 25° beam angle with optional diffusion
Technical Specifications
- Brand: U'King Professional Lighting
- Model: 200W LED Flat Par Light (Quad Pack)
- Power per Fixture: 200W
- LED Configuration: 18 × 8W RGBW (Red/Green/Blue/White) per head
- Input Voltage: AC 110V–240V, 50/60Hz (universal)

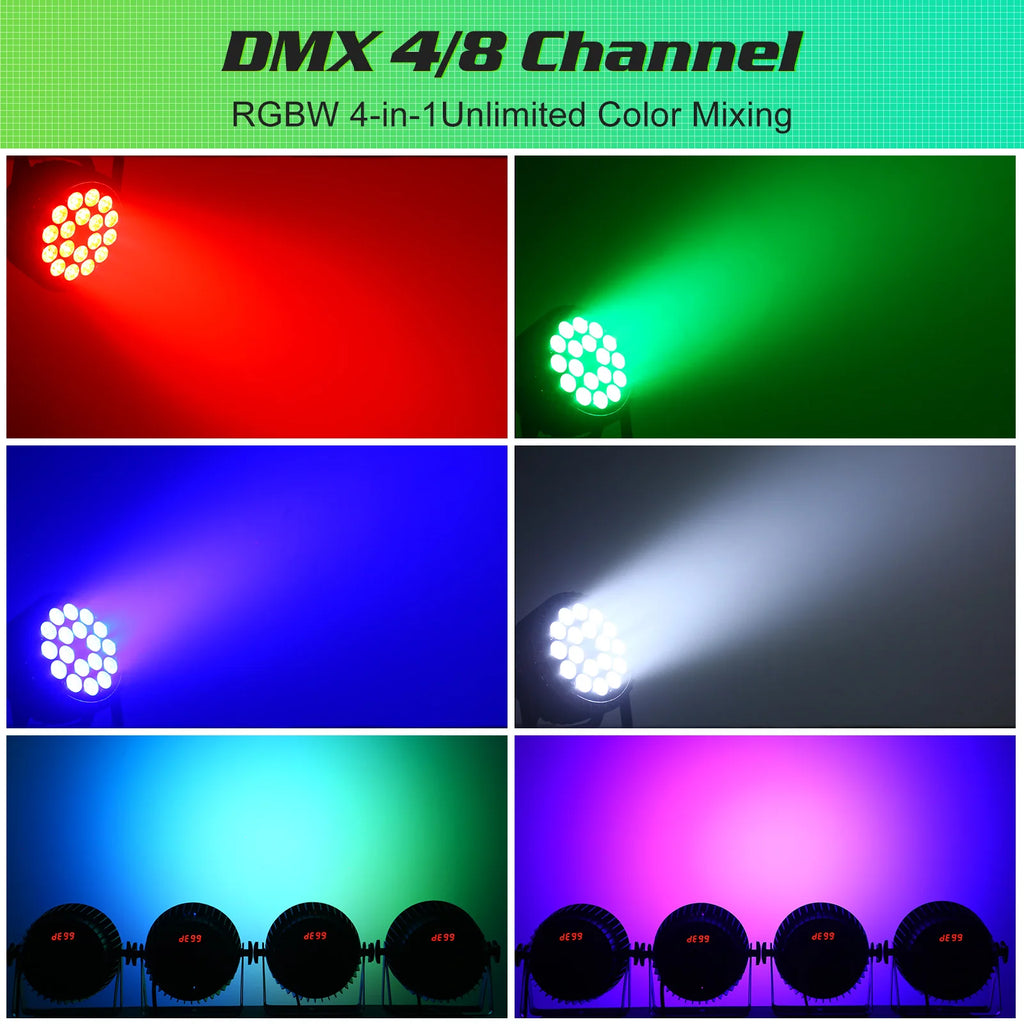

- Control Protocol: DMX512 with multiple channel modes
- Beam Angle: 25° (standard flat par dispersion)
- Dimming: 0–100% linear electronic dimming
- Certification: CE, FCC, RoHS

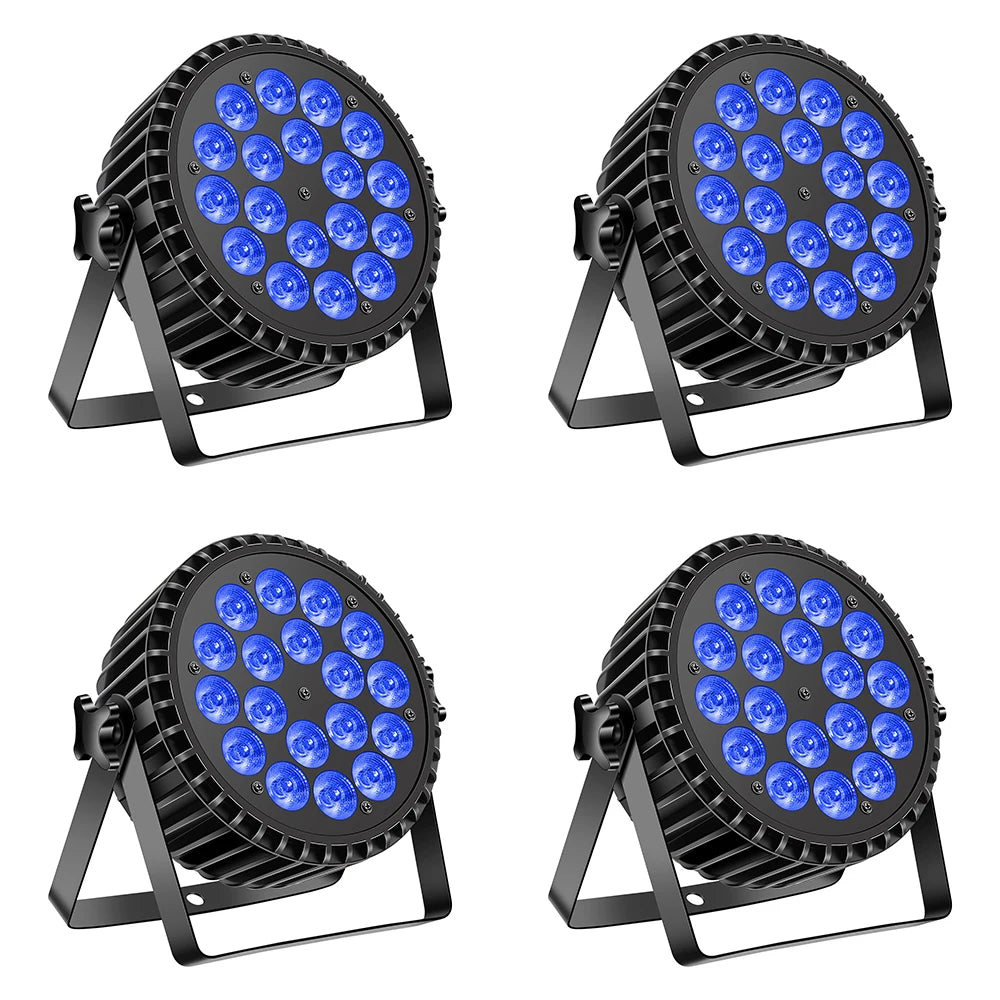

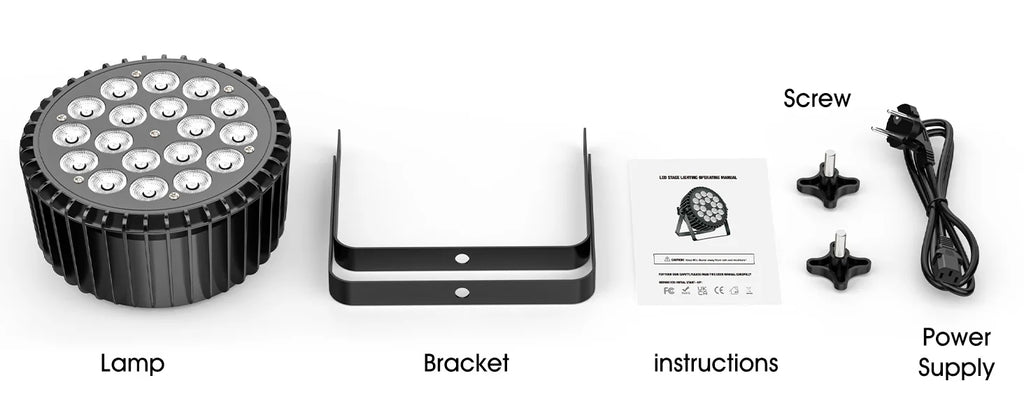

- Included: 4× Par Light Fixtures, 4× Power Cables, 4× Mounting Brackets, DMX Cables
Application Scenarios
Designed for mobile DJs, event production companies, house of worship AV teams, theater lighting designers, and architectural installers who demand reliable wash lighting with genuine color accuracy. The quad-pack configuration covers a 30′×20′ stage or dance floor with even, controllable coverage — ideal for weddings, corporate galas, club nights, and touring productions. The dedicated white channel makes these fixtures equally capable as high-CRI uplighting for gallery openings and retail environments where color temperature matters as much as intensity.
Frequently Asked Questions
Q: Can I control each of the 4 lights independently?

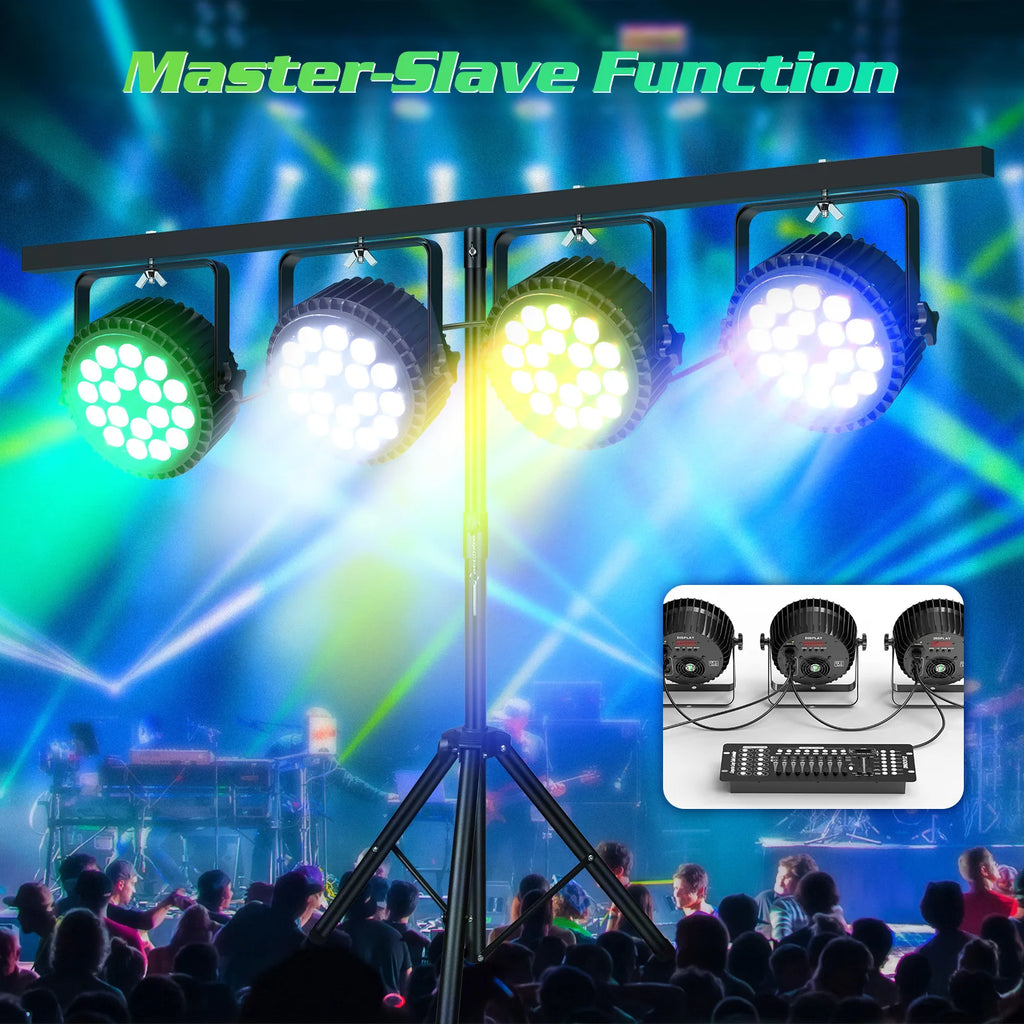

A: Yes. Each fixture has its own DMX address. You assign unique starting addresses (e.g., 1, 17, 33, 49 in 16-channel mode) and your DMX console or software can control color, intensity, strobe, and effects per fixture independently. In master-slave mode, one unit acts as the controller and the other three mirror its output — useful for quick setups without a console.
Q: What is the advantage of RGBW over standard RGB?
A: RGB-only fixtures create white by mixing red, green, and blue at full intensity — the result is typically a cool, slightly purple-tinted white (~7000K) that looks unnatural on skin and fabrics. RGBW adds a dedicated warm-white diode, giving you a true white channel that can be tuned from warm (3000K) to cool (6500K) without sacrificing color saturation. For wedding photography, video production, or any application where white light quality matters, RGBW is the professional standard.
Q: How loud are the cooling fans?
A: The fans are rated below 35dB at 1 meter — roughly the noise floor of a quiet office. They are inaudible in any venue with music playing, and quiet enough for theater and worship applications where ambient noise is a concern. The aluminum housing dissipates much of the heat passively, so the fans only ramp up under sustained full-white operation.
Q: Does this require a dedicated DMX controller or can I use software?
A: Both options work. Any hardware DMX console (GrandMA, Avolites, etc.) connects via standard 3-pin XLR. For software control, a USB-to-DMX interface (like ENTTEC DMX USB Pro or similar) paired with FreeStyler, QLC+, or Lightkey on a laptop gives you full scene programming. The fixtures also support auto-run and sound-active modes with no external control at all.
Q: What is the expected LED lifespan?
A: The 8W diodes are rated for 50,000+ hours at full output — equivalent to 5.7 years of continuous 24/7 operation, or decades of typical event-production duty cycles. The active cooling and regulated power supply are designed to maintain lumen output within 10% of spec across the entire rated lifespan.
Q: Can these be used outdoors?
A: These fixtures are rated IP20 — indoor use only. For outdoor events, they should be placed under cover (stage roof, tent, truss canopy). The aluminum housing tolerates humidity and temperature swings well, but direct rain or standing water exposure will damage the internal electronics. For permanent outdoor installations, use IP65-rated fixtures.
Q: How many of these would I need for a 200-person wedding reception?
A: This quad pack alone covers a 30′×20′ area with even wash — sufficient for most wedding dance floors and head-table uplighting. For larger venues or if you need separate color zones (dance floor + dining area), a second quad pack adds full coverage. The 25° beam angle means fixtures placed 12–15 feet from the target surface produce a 5–7 foot diameter wash circle at usable intensity.
Q: What warranty and support is included?
A: Each fixture is covered by a 12-month manufacturer warranty against defects in materials and workmanship. U'King provides replacement parts and technical support for DMX configuration and troubleshooting. All fixtures carry CE, FCC, and RoHS certifications for international compliance.
