Description
An AVR is the part that decides whether a generator is a power source or a liability. Everything downstream, the fridge, the pump, the charger, is only as safe as the regulator holding the output steady.
The Voltage Anchor covers the three, five and eight kilowatt classes in both single-phase and three-phase build, across eight configurations that map to the harness in the generator it is going into. Six-wire single-phase modules serve the smaller frames. The seven and eight-wire three-phase units serve the larger sets, where two live conductors have to be regulated together rather than one.
Replacement is mechanical rather than clever. Identify the original module's phase and wire count, disconnect the terminals, fit the new unit to the same mounting, and reconnect in the same order. Because the harness is the identifier, a photograph of the old regulator's connector block is usually enough to select the right variant before ordering.
Continuity is not a feature of the generator. It is a feature of the regulator.
Component Notes
- ✦ AVR replacement for 3 kW, 5 kW and 8 kW gasoline generators
- ✦ Single-phase and three-phase variants in one part family
- ✦ Six, seven and eight-wire harness options
- ✦ Holds output steady as loads switch in and out
- ✦ Protects sensitive equipment from voltage spikes
- ✦ Same footprint as the original module for a straight swap
- ✦ Restores AVR function after regulator or excitation failure
Configuration Record
- Type: Automatic voltage regulator (AVR)
- Power Classes: 3 kW, 5 kW and 8 kW
- Output: 220 V single-phase / 380 V three-phase

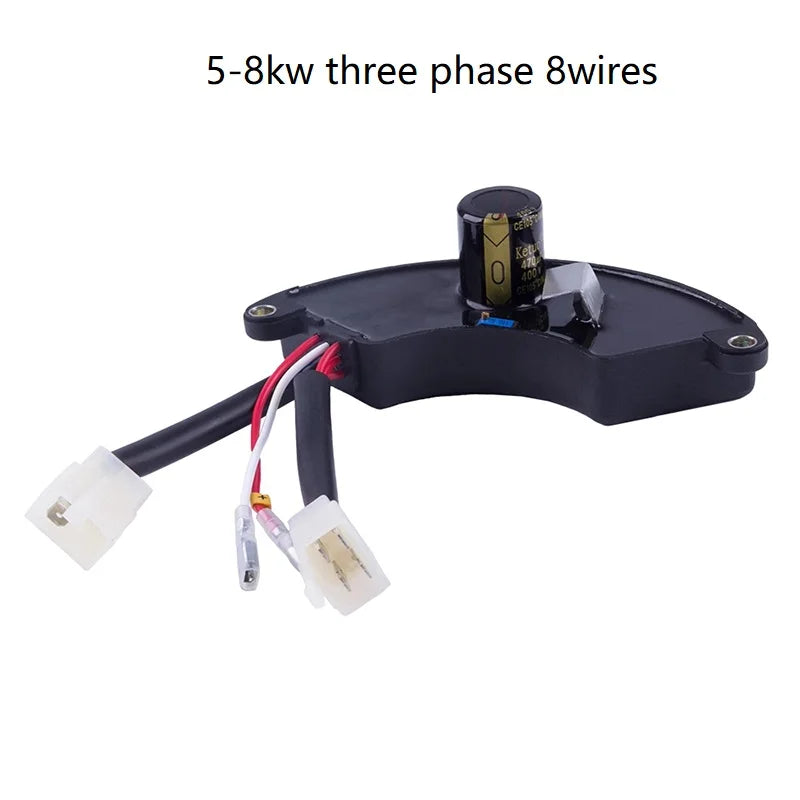

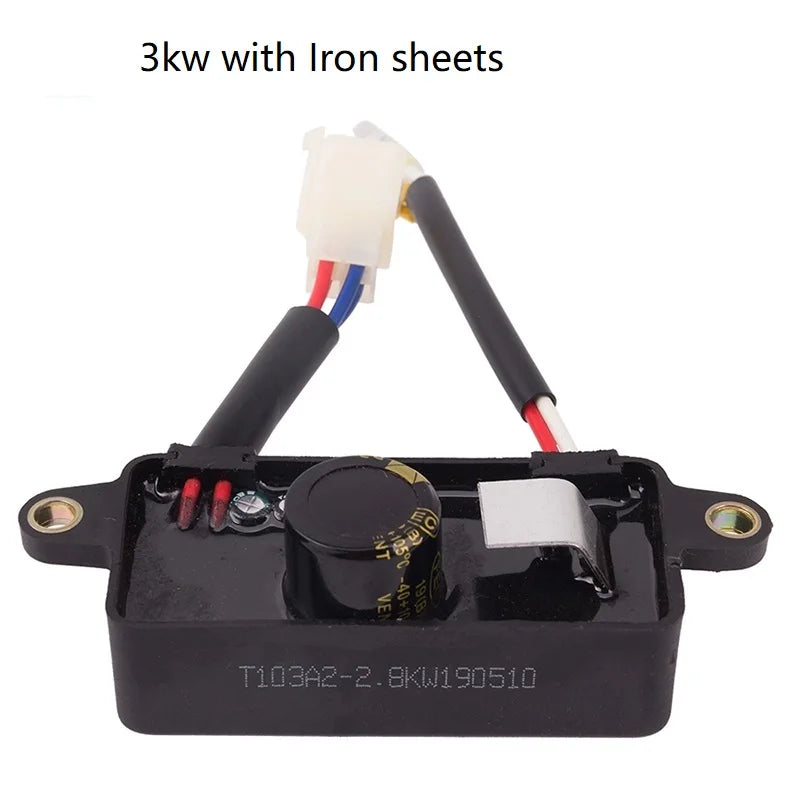

- Configurations: 2-3KW 6wires; 3KW 6wires; New 3KW 6wires; 5KW 6wires 1phase; 5-6.5kw 1phase 6wire; 5KW 3phase 8wires; 7-8kw 1phase 6wires; 7-8kw 3phase 7wires
- Wiring: 6, 7 and 8 wire variants
- Mounting: Original AVR mounting position
- Connection: Terminal block, terminal-for-terminal swap
- Function: Automatic voltage regulation under load
- Application: Portable, standby and job-site generators
- Before Ordering: Identify phase and wire count on the original unit
Sizing the Replacement
It suits the owner of a mid-size generator whose output has started to wander: lights that surge when a load drops, a pump that trips on a nominal supply, or a complete loss of excitation after a long run. It also suits workshops that keep a spare regulator on the shelf, because an AVR failure takes a generator out of service entirely and the part costs a fraction of a replacement machine.
Selecting by Harness, Not by Brand
Two generators of the same power class and phase can use different regulators, and two generators of different brands can use the same one. The identifying feature is not the label on the case, it is the wire count and phase of the harness the module plugs into. That is why the Voltage Anchor is offered across eight configurations rather than one: six-wire single-phase for the smaller frames, eight-wire three-phase for the larger sets, and the intermediate variants between them. Matching the harness is the whole selection process. Everything else about the part, the mounting, the terminals and the regulation behaviour, is common across the range.
Sizing Questions
Q: Which variant fits a 5 kW single-phase generator?
A: Choose one of the 5KW 6wires 1phase or 5-6.5kw 1phase 6wire options, depending on the wire count on the original regulator.
Q: How is this different from a voltage stabiliser?
A: An AVR regulates the generator's own excitation to control output voltage at source. A stabiliser corrects the supply after it has left the machine.
Q: Can I install it without an electrician?
A: It is a terminal-for-terminal swap, but mains generating equipment carries real risk. If you are not confident working inside the control housing, use a qualified technician.
Q: What if my generator is a different brand?
A: The regulator is selected by power class, phase and wire count rather than brand, so it suits many generators in the 3 kW to 8 kW range.
Q: Should I test the windings before replacing the AVR?
A: Yes. A shorted excitation winding will destroy a new regulator. Check the winding resistance before fitting the replacement.
Q: Does it include the mounting hardware?
A: It is supplied as the module itself. Reuse the original mounting screws and terminal covers.
Q: How do I count the wires on my regulator?
A: Count the conductors on the connector block before removing it, and photograph the arrangement for reference.
Q: Is this a genuine branded part?
A: It is an OE-equivalent replacement specified by power class, phase and wire count rather than by brand.
Q: Can I return it if the wire count is wrong?
A: Contact the store before fitting. Unfitted parts in original condition are handled under the standard return policy.
Q: Does it come with wiring instructions?
A: It is a terminal-for-terminal swap. Photograph the original connections before disconnecting anything.
