Description
SPECIFICATIONS
Brand Name: XIAOMI
Certification: CE
Dimensions: 159*16.4mm
Max. Torque: 3N*m
Origin: Mainland China
Power Source: DC,Battery
Rated Voltage: 5V
Type: Screwdriver Set
Use: Home DIY
Weight: 59g

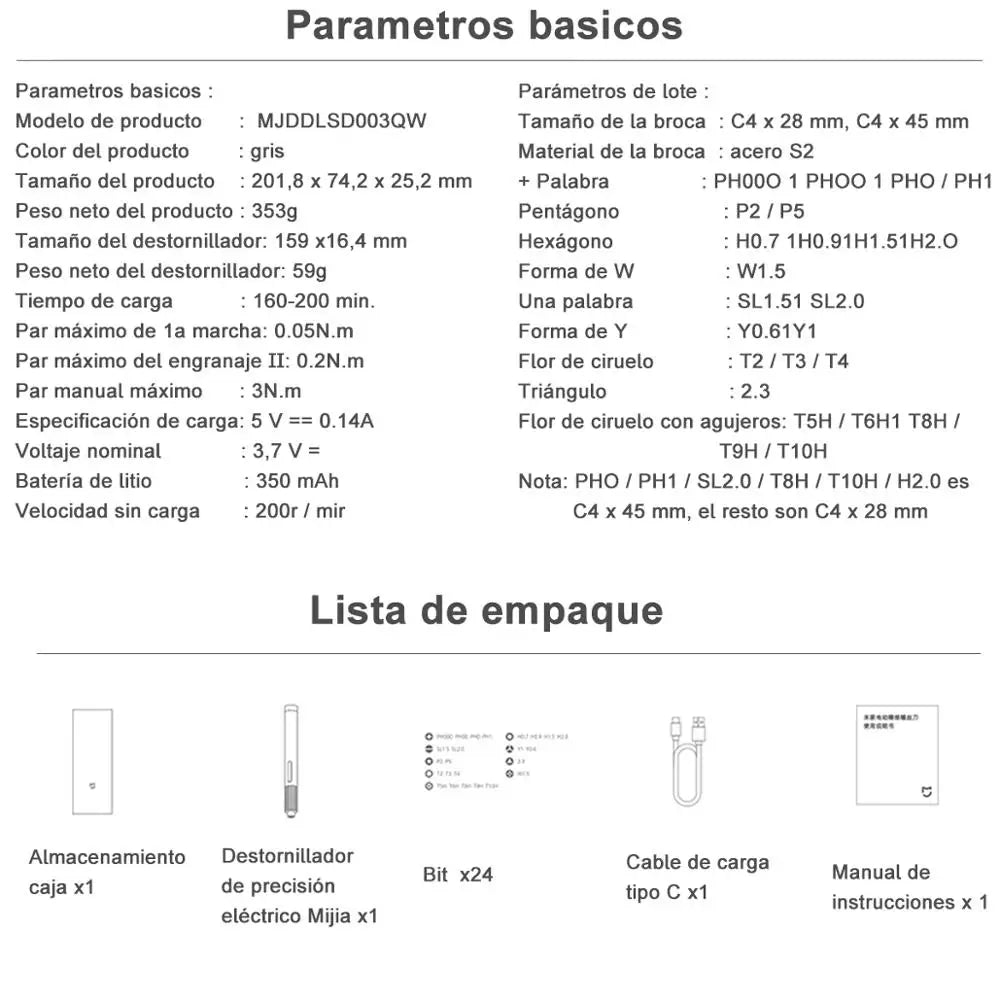

Basic parameters
Product model: MJDDLSD003QW
Product color: gray
Product size: 201.8 x 74.2 x 25.2mm
Product net weight: 353g
Screwdriver size: 159 x16.4mm
Screwdriver net weight: 59g
Charging time: 160-200min
1st gear maximum torque: 0.05N.m
Maximum torque of gear II: 0.2N.m
Maximum manual torque: 3N.m
Charging specification: 5V == 0.14A
Rated voltage: 3.7V=
Lithium battery: 350mAh
No-load speed: 200r/mir
Batch header parameters:
Bit size: C4 x 28mm, C4 x 45mm
Bit material: S2 steel
+ Word: PH00O 1 PHOO 1 PHO /PH1
Pentagon: P2/P5
Hexagon: H0.7 1H0.91H1.51H2.O
W shape: W1.5
One word: SL1.51 SL2.0
Y shape: Y0.61Y1
Plum blossom: T2/T3/T4
Triangle: 2.3
Plum blossom with holes: T5H/ T6H1 T8H/ T9H/ T10H
Note: PHO/PH1/SL2.0/ T8H/ T10H/H2.0 is C4 x 45mm, the rest are C4 x 28mm
packing list:
Storage box x1
Mijia Electric Precision Screwdriver x1
Bit x24
Type-C charging cable x1
Instruction manual x 1
**Delivery time for parcels: Spain is generally delivered within 1-3 days, and other countries are generally delivered within 3-10 days. Please check whether the package is received within the time limit. If the time limit is exceeded, please contact customer service to verify the location of the package.
Security warning
Warning - Read all safety warnings, instructions, illustrations, and regulations that are provided with the power tool.
Failure to follow the instructions listed below can result in electric shock, fire, and / or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warning refers to a utility-powered (corded) power tool or a battery-powered (cordless) power tool.
Safe workplace
1. Keep the workplace clean and bright. A dark and cluttered place can cause accidents.
2. Do not use power tools in an explosive environment, such as a flammable liquid, gas, or dust environment. Sparks from power tools can ignite dust or gas.
3. Keep away from children and bystanders when using power tools. Inattention can cause you to lose control of your tools.
ELECTRICAL Safety
1. The plug of the power tool must match the plug. Never modify the plug in any way. Do not use conversion plugs for power tools that require grounding.
Unmodified plugs and matching plugs will reduce the risk of electric shock.
Avoid human contact with grounded surfaces such as pipes, heat sinks, and coolers. Touching a grounded surface increases the risk of electric shock.
2. Do not expose power tools to rain or wet environments. Water entering the power tool will increase the risk of electric shock.
3. Do not abuse the cord. Never use cords to carry, pull, or unplug power tools. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
4. When using power tools outdoors, use extension cords suitable for outdoor use. Cords suitable for outdoor use will reduce the risk of electric shock.
5. If operating power tools in a humid environment is unavoidable, use a residual current device (RCD) protection power supply. Using RCDs can reduce the risk of electric shock.
Personal security
1. Stay alert, pay attention to what you are doing, and stay awake when using power tools. Do not use power tools when you are tired or when you are responding to drugs, alcohol, or treatment. A momentary negligence when operating power tools can cause serious personal injury.
2. Wear personal protective equipment. Always wear protective goggles. Protective devices such as dust masks, non-slip safety shoes, hard hats, and hearing protection in the right conditions can reduce personal injury.
3. Avoid accidental starting. Make sure the switch is in the off position before connecting power and / or battery packs, lifting, or carrying tools. Carrying tools with your fingers on the switch or turning it on when the switch is on can be dangerous. Before turning on the power tool, remove all adjusting keys or wrenches. Wrench or spanner left on rotating parts of the power tool can cause personal injury.
4. Don't overstretch your hands. Always pay attention to your balance and body balance. In this way, the power tool can be better controlled in unexpected situations.
5. Dress appropriately. Do not wear loose clothing or accessories. Keep your hair and clothing away from moving parts. Loose clothing, jewelry, or long hair can get caught in moving parts.
6. If a device is provided to connect to the chip removal and dust collection equipment, make sure it is properly connected and used correctly. The use of dust collectors can reduce the danger caused by dust.
7. Don't take it lightly because of the familiarity of frequent tool use and ignore tool safety guidelines. Careless action can cause serious injury in an instant.

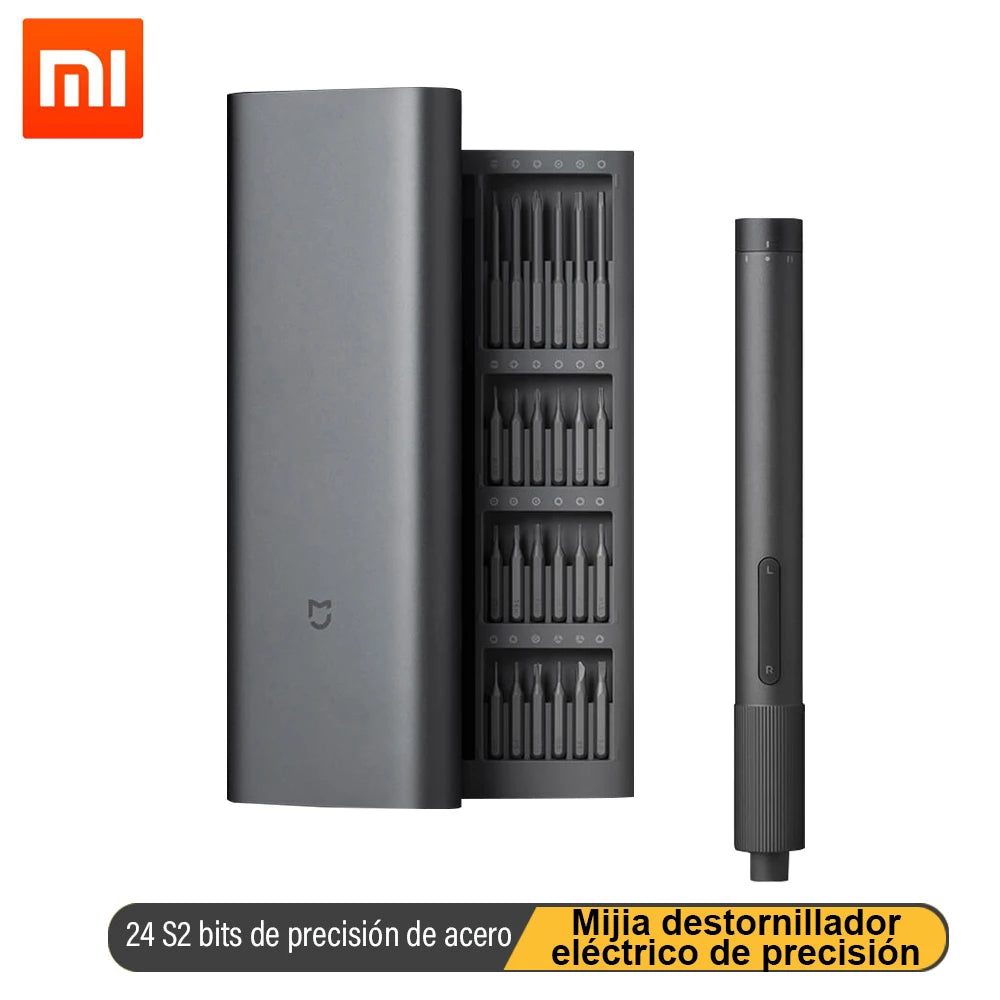

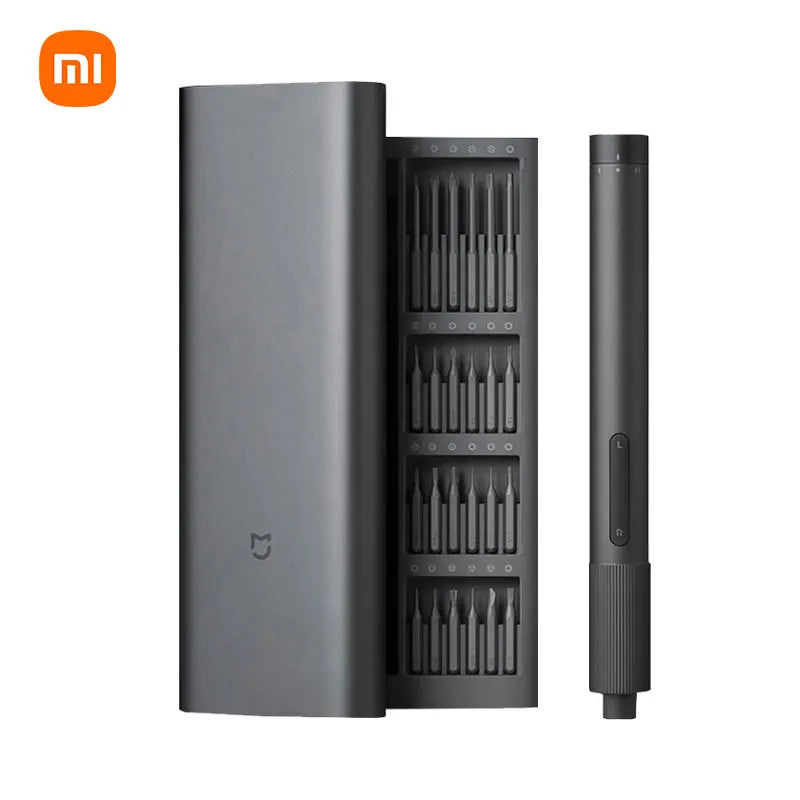

Mijia Electric Precision Screwdriver
Two-speed torque control, exploring unknown possibilities.
Two gears adjustable torque
Magnetic absorption nanobatch head box
24 S2 steel precision bits
Fully charged 400+ precision screws
Pressing magazine type magnetic absorber Continuation of the classic award-winning design
The Mijia finishing screwdriver set has won 5 international design awards, iF, Red Dot, Japan Good Design, IDEA and Chicago Good Design.
The Mijia electric finishing screwdriver inherits its press-on magazine design, which is easy to use with one touch.
The electric version of the fine-repairing
Screwdriver improves the finishing efficiency.
Using a strong magnet motor, the speed can reach up to 200rpm. With the all-metal gear box, the concentricity of the bit head is ≤0.2mm when rotating, which effectively improves the finishing efficiency.
24 S2 steel precision bits in 9 categories
24 high-quality S2 tool steel bits with a hardness of up to 60HRC, tough and durable. 24 kinds of precision bit models, suitable for the disassembly and assembly needs of mainstream electronic products and new small appliances.

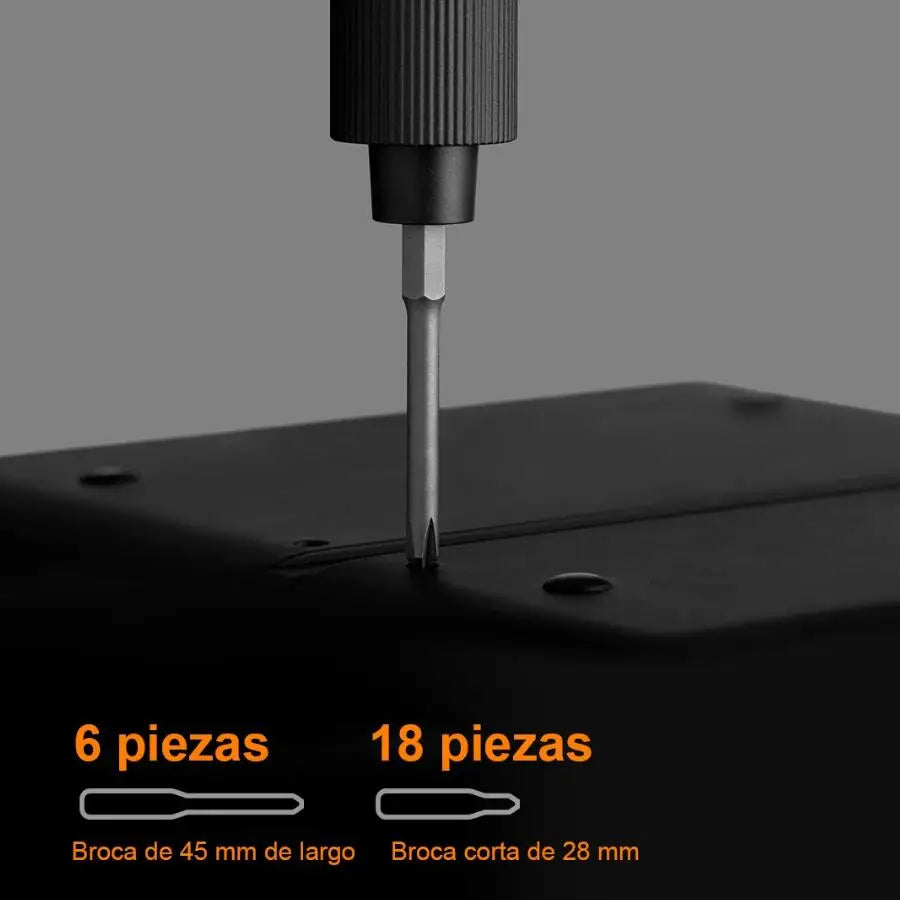

6 commonly used 45mm long bits
Cope with complex scenes such as deep holes
Extend 6 common bits out of 24 to 45mm, calmly cope with more complicated situations such as deep holes and narrow spaces, and broaden the usable scenarios.

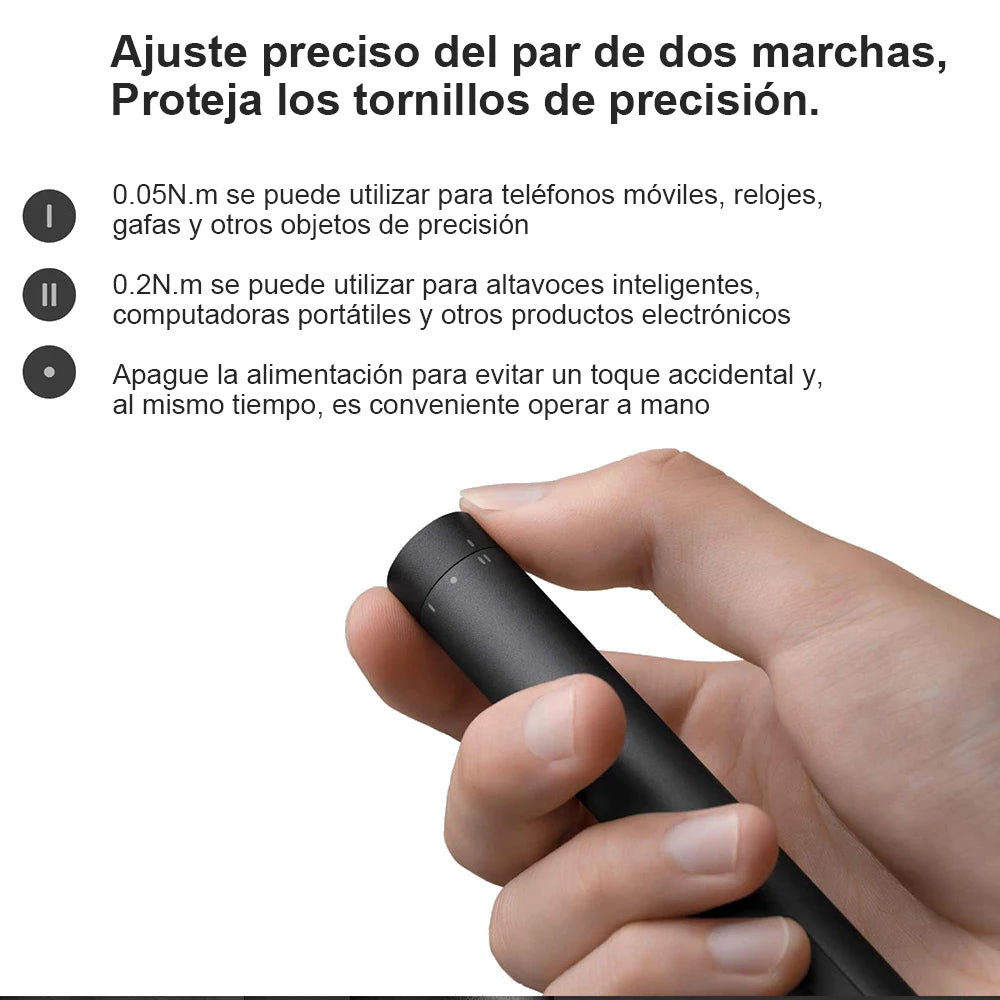

Two gears precise torque adjustment ,Protect precision screws.
0.05N.m can be used for mobile phones, watches, glasses and other precision objects
0.2N.m can be used for smart speakers, notebooks and other electronic products
Turn off the power to avoid accidental touch, and at the same time convenient for hand-tightening operation

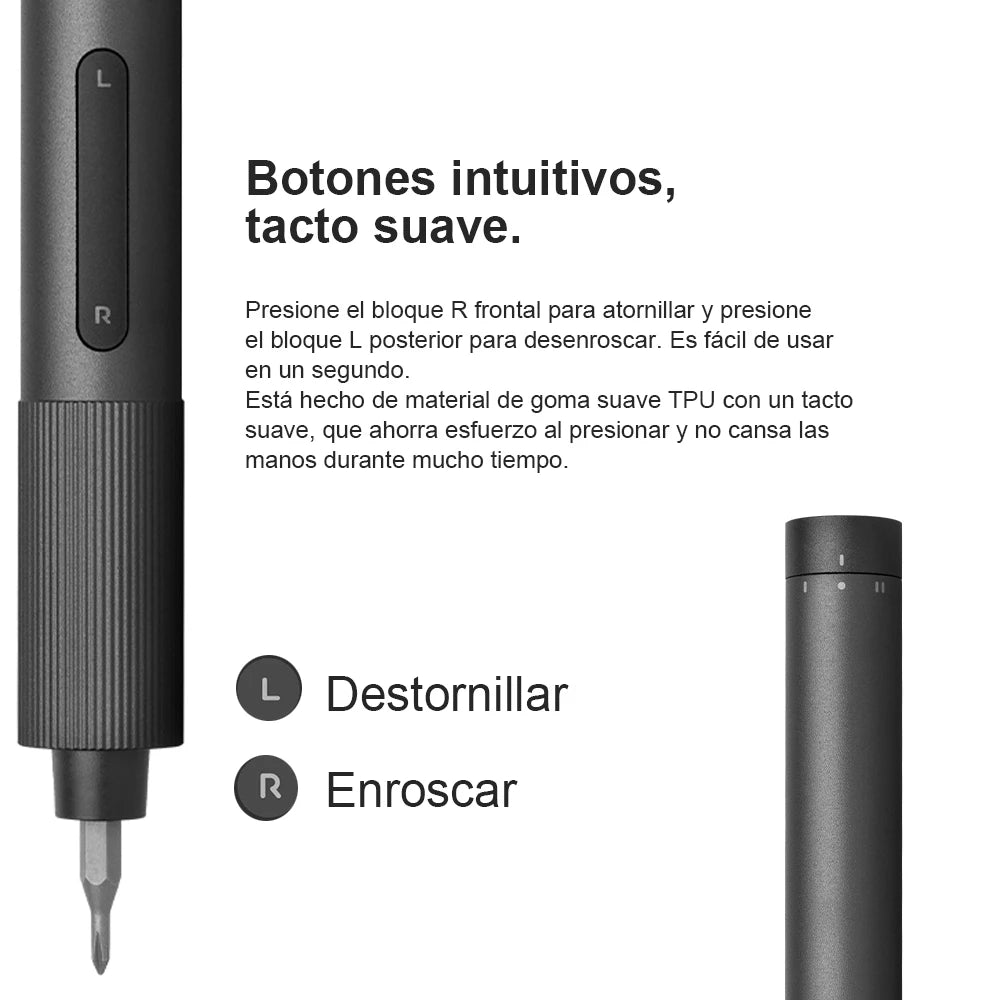

Intuitive buttons, soft touch.
Press the front R block to screw in, and press the back L block to screw out. It's easy to use in one second. It is made of TPU soft rubber material with a soft touch, which saves effort for pressing and does not tire your hands for a long time.
Low center of gravity design enhances the sense of control, The non-slip texture is better to hold.
The internal structure of the screwdriver host has been repeatedly adjusted, and the reasonable center of gravity arrangement enhances the control feel.
The three-dimensional non-slip texture on the grip: enhance friction and hold it firmly, not easy to remove.

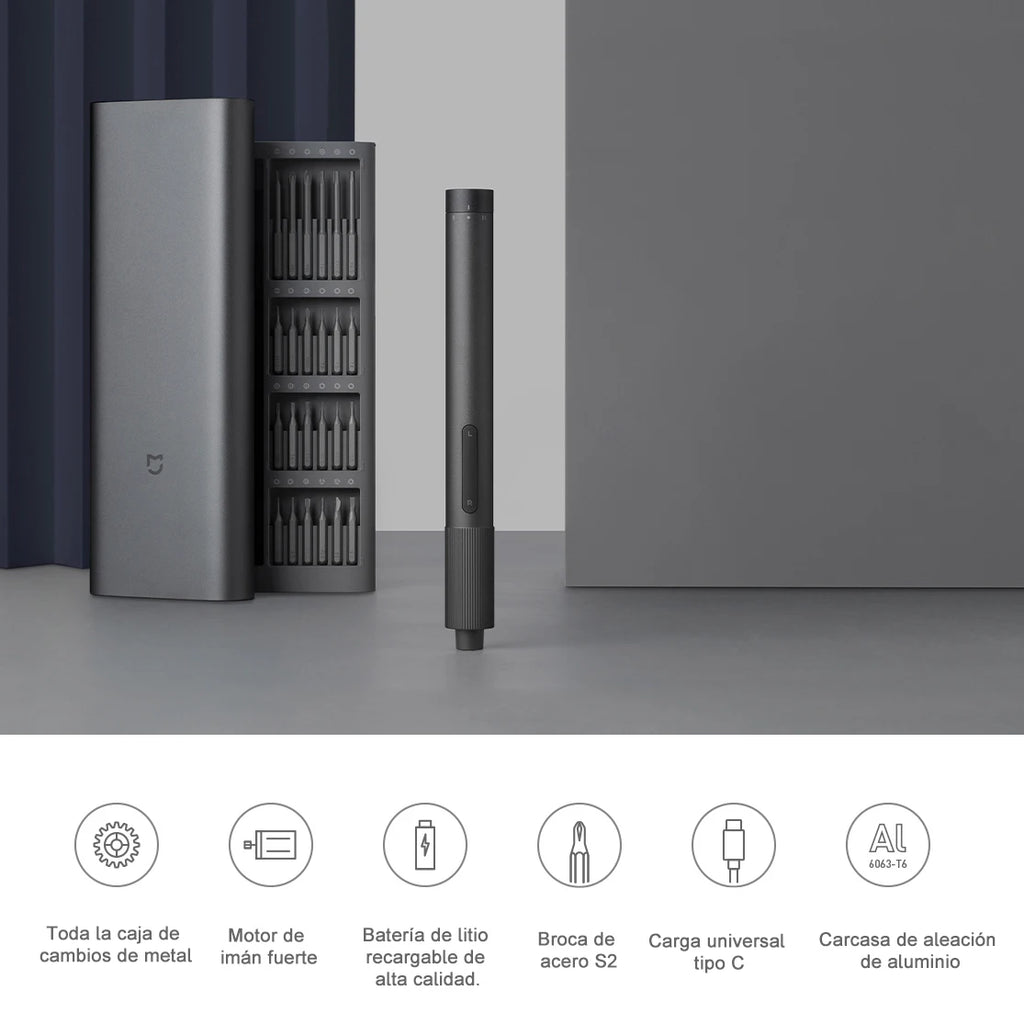

One-piece aluminum alloy shell, Anodized aluminum alloy process.
The housing of the storage box and the main body of the screwdriver are made of high-quality aluminum alloy, which is comfortable to hold. The anodized surface treatment is non-slip, sweat-resistant and not easy to rust.
The universal Type-C charging interface charging prompt is more worry-free.
With universal Type-C charging interface, it can share charging cable with Shixin electronic products, making charging more convenient.
The indicator light next to the charging port can provide timely low battery warning and charging status reminder.
