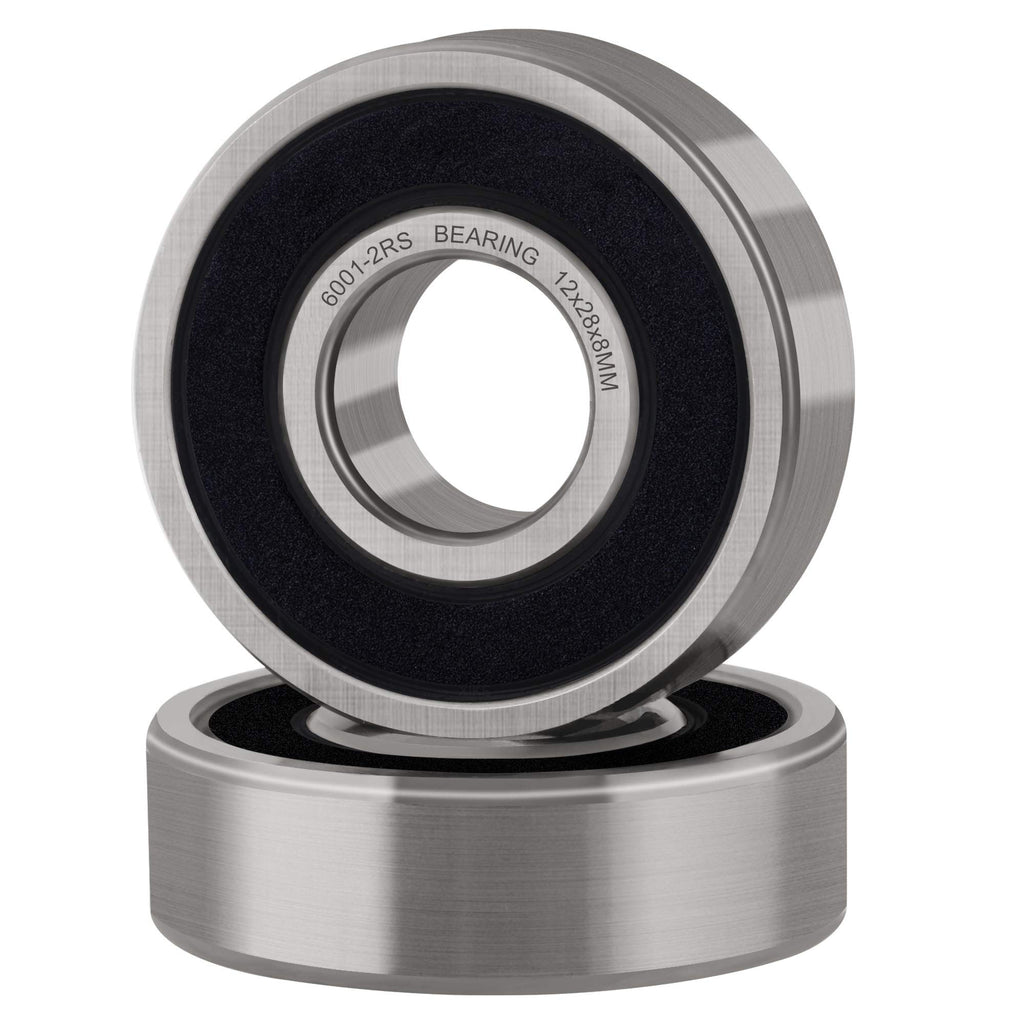

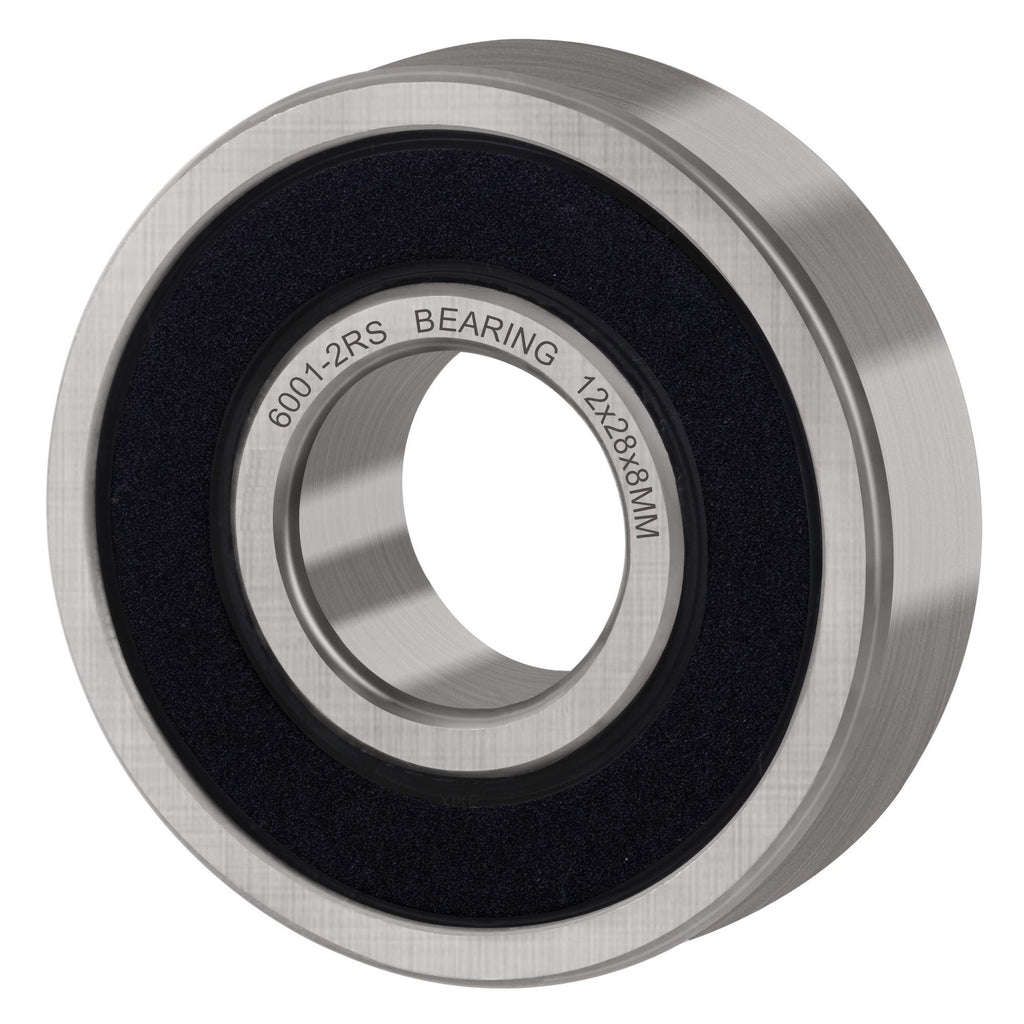

6001-2RS Shielded Ball Bearings


描述

6001-2RS deep groove ball bearings feature deep groove geometry for high speeds and support both radial and axial loads.

Bearings are made of bearing steel for durability. . 12mm ball bearing inner dimension 12mm X outer dimension 28mm X width 8mm is a double-shielded ball bearing that can be used in clutches, drives, gearboxes, compressors, pumps, turbines and printing and textile machines etc.

6001-2RS Shielded Ball Bearings has rubber sealing rings on both sides, which can effectively prevent the entry of lubricants and contaminants, and increase the service life of the bearing.

Rolling bearings are used in a wide range of applications, from garden equipment to conveying equipment, power tools, clickers, tricycles, roller scooters, and more.

Mfr. Model # 6001-2RS

Technical Specs

Spec 6001-2RS
Item Miniature Ball Bearings
Type Shielded
Bore Dia. 12 mm
Outside Dia. 28 mm
Width 8 mm
ABEC Tolerance 3



Dynamic Load Capacity (kN) 5.4kN
Static Load Capacity (kN) 2.36kN
Max. RPM 30,000 RPM
Temp. Range (℃) -40~120℃
Material Nitrile rubber + mild steel (NBR + SPCC)
Shield Material Steel
Lubrication Grease

6001-2RS deep groove ball bearings have two non-contact/contact rubber boots on each side of the bearing. If your application requires a 6201 ball bearing with only one guard or no guard, you can contact us and our engineers will help you choose the best bearing model for your application.

6001-2RS drawing
