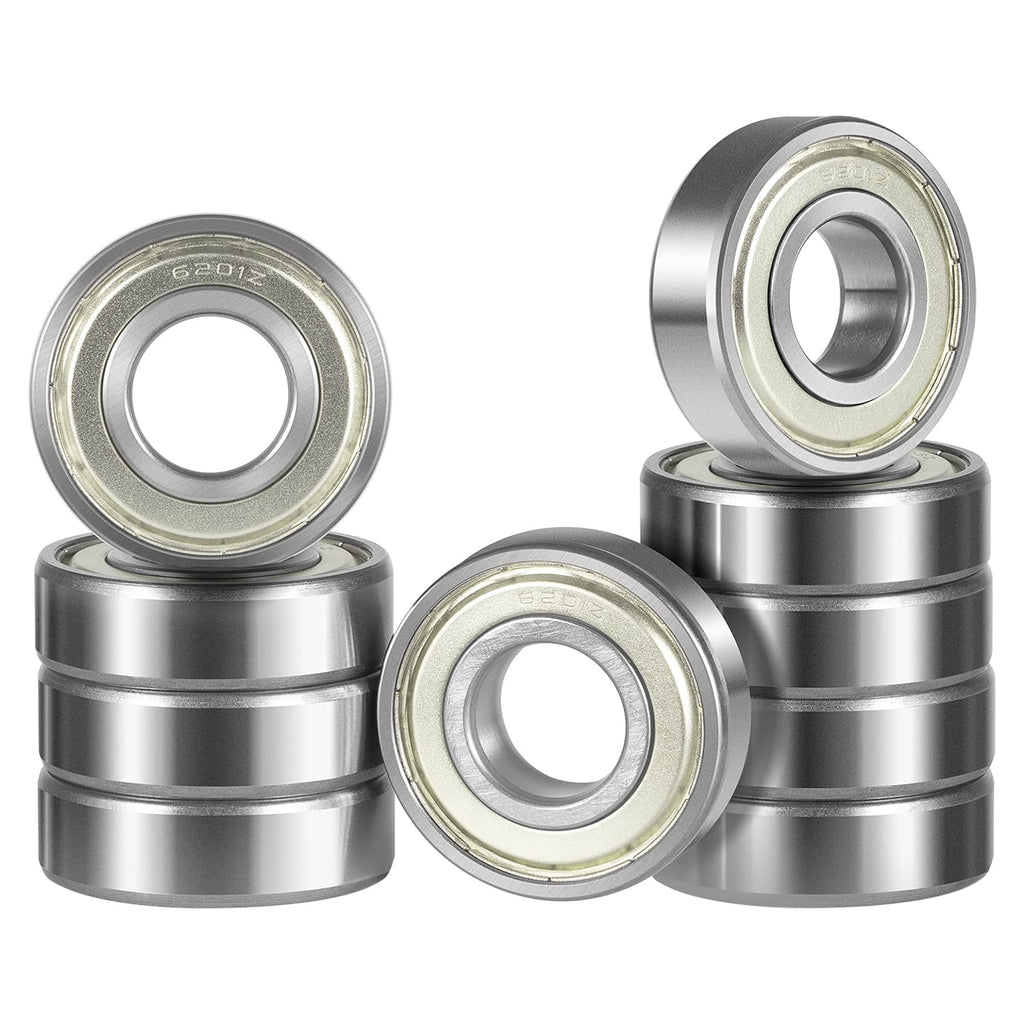

6201-ZZ Shielded Ball Bearings


描述

6201-ZZ bearings are precision deep groove ball bearings with metal shielding and grease on both sides for many rotating and factory automation applications.

Ball-bearing inner dimensions 12mm X outer dimensions 32mm X width 10mm is a double screened ball bearing designed for high rotational speeds and high dynamic loads.

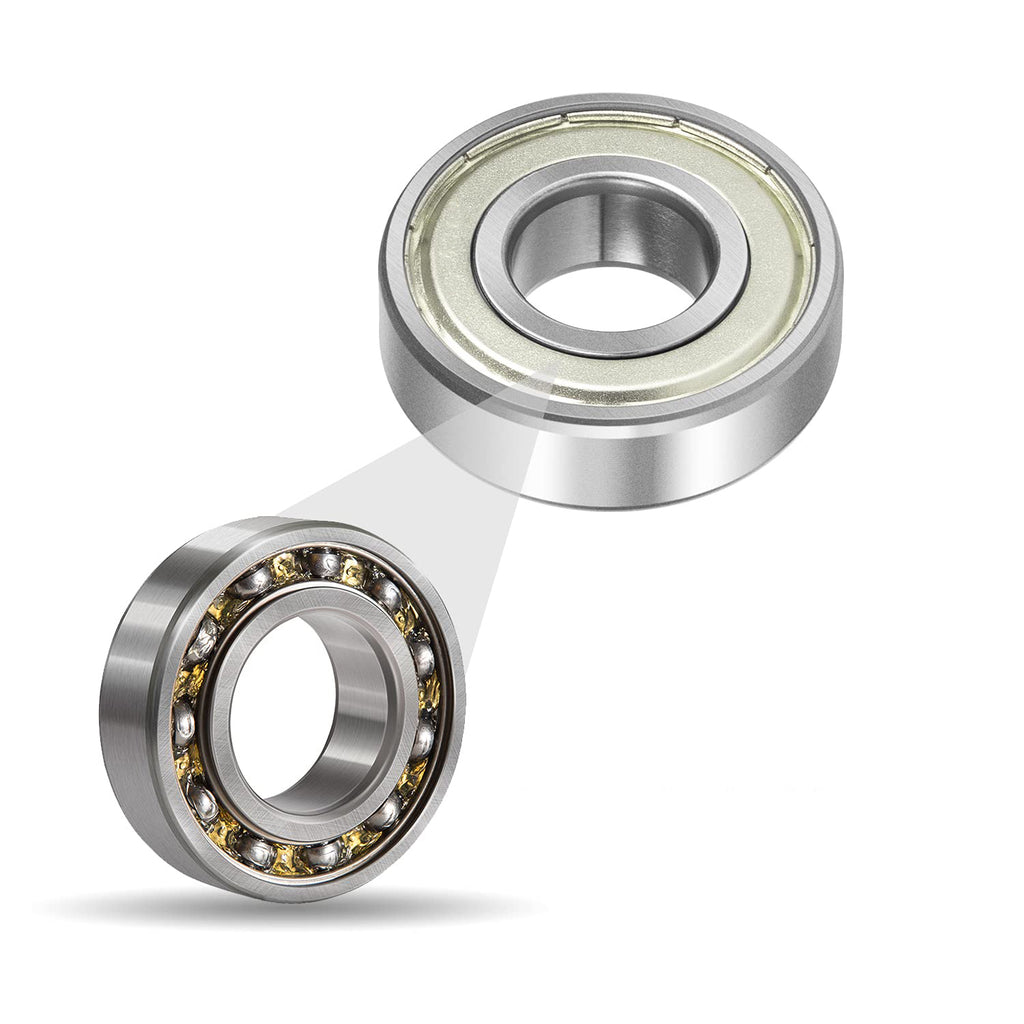

6201-ZZ rolling bearings use rolling elements to maintain separation between moving parts to reduce rotational friction and support radial and axial loads.

Rolling bearings are used in a wide range of applications, from agricultural machinery to conveyor equipment, electric motors, CNC machinery, trucks, mining equipment, trains, robots.

Mfr. Model # 6201-ZZ

Technical Specs

Spec 6201-ZZ
Item Small deep groove bearing
Type Shielded
Bore Dia. 15 mm
Outside Dia. 32 mm
Width 10 mm
ABEC Tolerance 3



Dynamic Load Capacity (kN) 7.28kN
Static Load Capacity (kN) 3.1kN
Max. RPM 26,000RPM
Temp. Range (℃) -40~120℃
Material Mild steel (SPCC)
Shield Material Steel
Lubrication Grease

The 6201-ZZ ball bearing has two non-contact metal shields one on each side of the ball bearing. If your application requires a 6201 ball bearing with only one seal or shield you can get this ball bearing and take one of the shields or seals off. This 12mm inch ball bearing is high quality and can take electric motor demands if needed.

6201-2Z drawing
