6301-ZZ Shielded Ball Bearings


描述

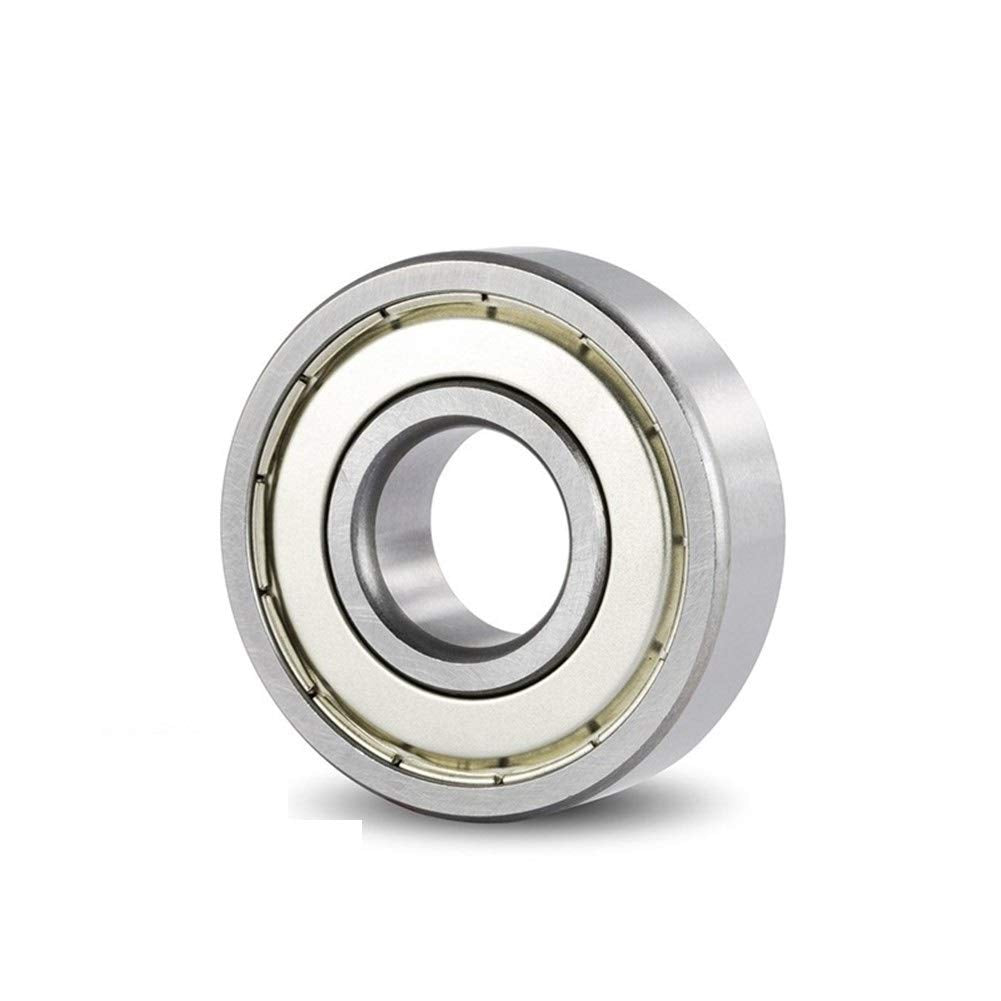

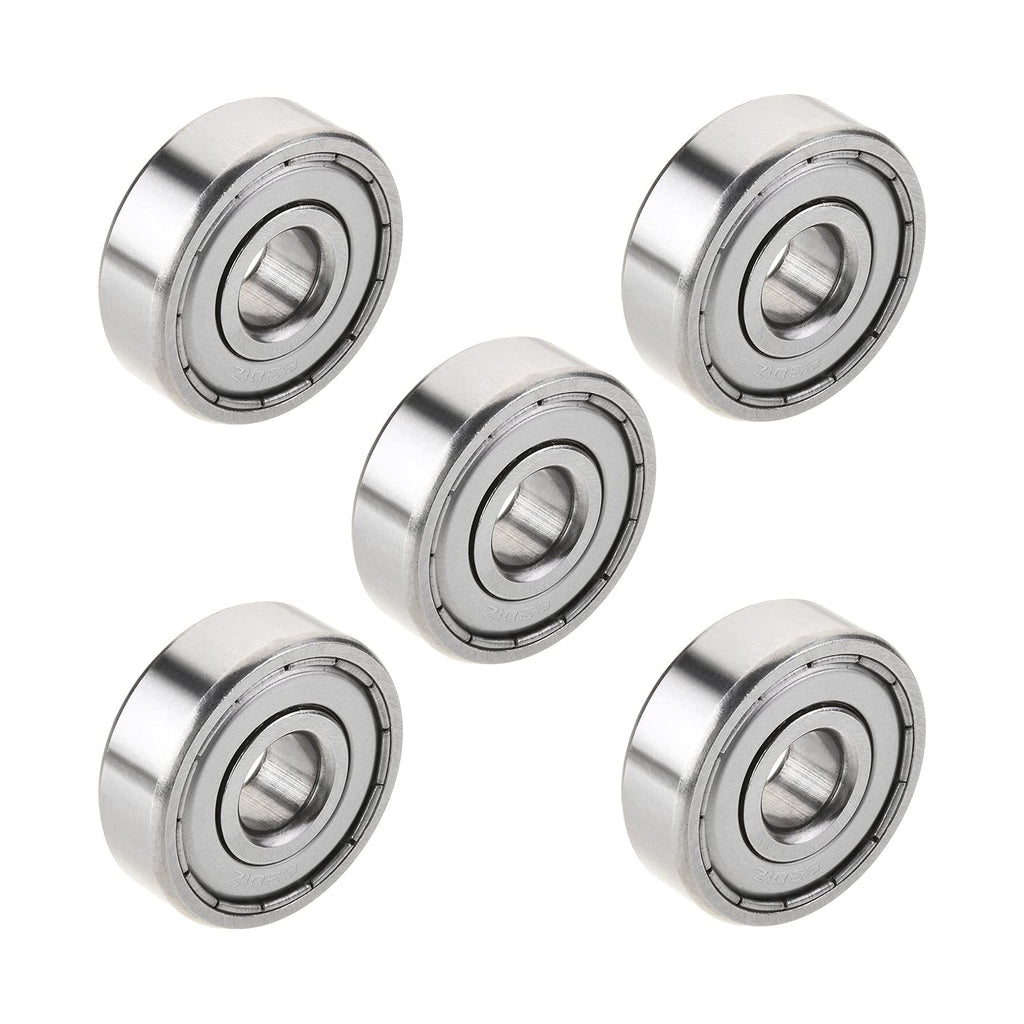

6301-ZZ are small ball bearings with metal seals and grease on both sides, suitable for high radial loads and light axial loads in both directions, providing high running accuracy, quietness and high speed.

Ball-bearing inner dimension 12mm X outer dimension 37mm X width 12mm,

6303-ZZ single row deep groove ball seal bearing, good stability and durability. Suitable for all kinds of power tools, garden tools, roller skating products, etc.

We aim to provide customers with high-quality products, if you have special needs please contact us!

Mfr. Model # 6301-ZZ

Technical Specs

Spec 6301-ZZ
Item Small ball bearing
Type Shielded
Bore Dia. 12 mm
Outside Dia. 37 mm
Width 12 mm
ABEC Tolerance 3



Dynamic Load Capacity (kN) 10.1kN
Static Load Capacity (kN) 4.15kN
Max. RPM 14,000RPM
Temp. Range (℃) -40~120℃
Material Steel
Shield Material Mild steel ( SPCC)
Lubrication Grease

6301-ZZ ball bearing has two non-contacting metal guards on each side of the ball bearing. If you have special needs for products that need to be customized or want to know more information and get a quote, you can contact our professional customer service team, we will communicate with you and choose the best solution.

6301-2Z drawing
