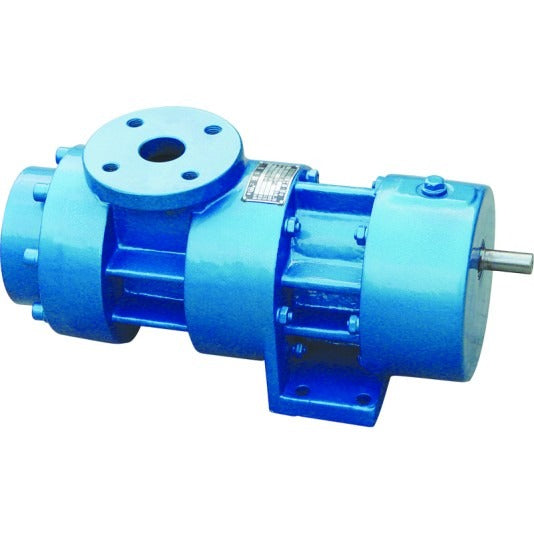

2GM series single suction twin screw oil pump

hgp

描述

Performance range
Flow rate: 1~60m³/h

Inlet pressure: -0.08~1.4Mpa

Outlet pressure: 0.2~2.0Mpa

Rotation:750~1500r/min

Viscosity:0.5~10000mm²/s

Temperature: -20~120℃

Product Overview
This product is a small external bearing type single-suction double screw pump, flux range 0.9-60m3/h, pressure 0.4-3MPa, without heating chamber or safety valve attached with. The bearing cavity and pump cavity are separated by mechanical seal and skeleton oil seal. The leak-proof quality is very good. It possesses the features of small volume, wide application, ease in maintenance and wash.
