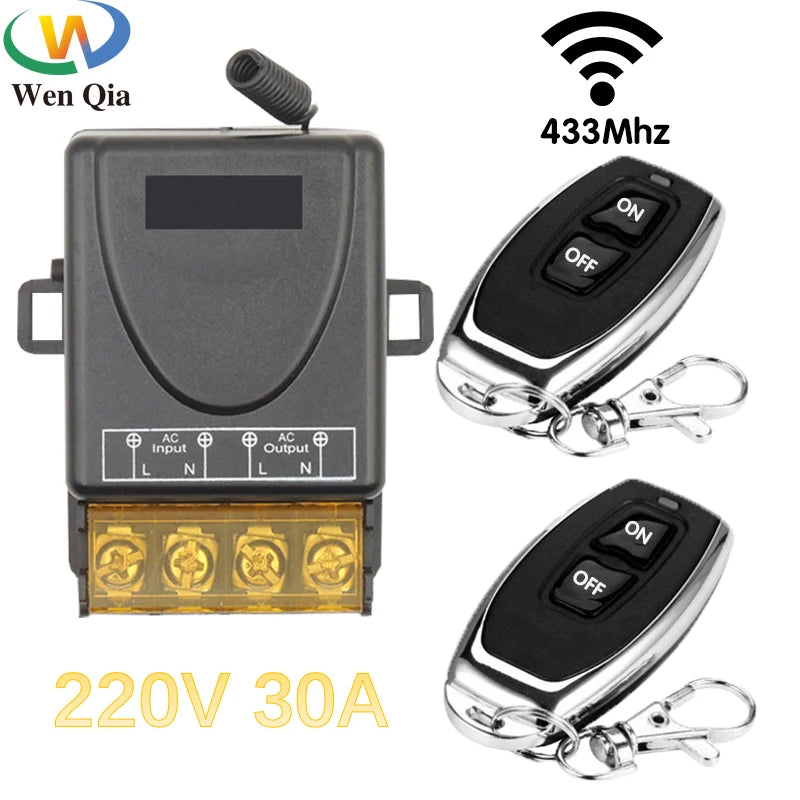

Smart Home Wireless Remote Control Switch RF 433Mhz AC 220V 30A Remote on Off Switch Control for Home Water Heaters Ceiling Lamp

节省20%
East Supplier PlatformSKU:1005001843174944-1RC 1B

价格:
$16.84 $21.05

含税 运费在结账时计算

股票:
有现货(1437 件),可随时发货

描述

SPECIFICATIONS

Working Voltage: AC 75V-250V

Max Current: 30 Amp

Receiving range: up to 50m (theoretical distance)

Receiving Sensitivity: 97dbm

Modulation Mod: ASK

Matching Mode: Intelligent Learning code 1527

Working temperature: -30 ~ +80

Switch Type: 433Mhz Remote Control

Application 1: Pump,Exhaust system,Kettle

Application 2: Factory Farm Office Ventilation Pump LED Light

Application 3: Light, Fan, Door, LED, Lamps, Security Alarm System and so on

Application location: Family, Home, Factory, Office, Supermarkets and so on

Brand Name: WenQia

Item Type: SWITCHES

Switch Type: REMOTE CONTROL

Certification: CCC

Certification: ce

Certification: ROHS

Warranty: 1 Year

Remote Distance: up to 50m (theoretical distance)

Model Number: 2201H-220V 30A 433Mhz Remote Control Switch

Material: plastic

Is Smart Device: no

Features: Smart light switch / remote control switch for Home water hearter

Current: 30A

Origin: Mainland China

Choice: yes

semi_Choice: yes

         Smart Home Wireless Remote Control Switch RF 433Mhz AC 220V 30A Remote on Off Switch Control for Home Water Heaters Ceiling Lamp

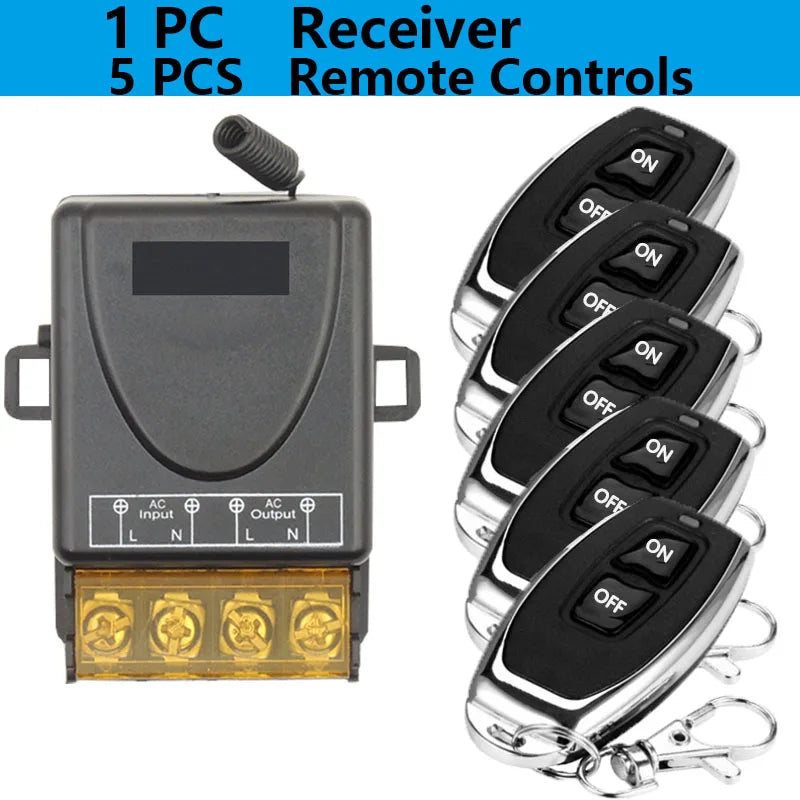

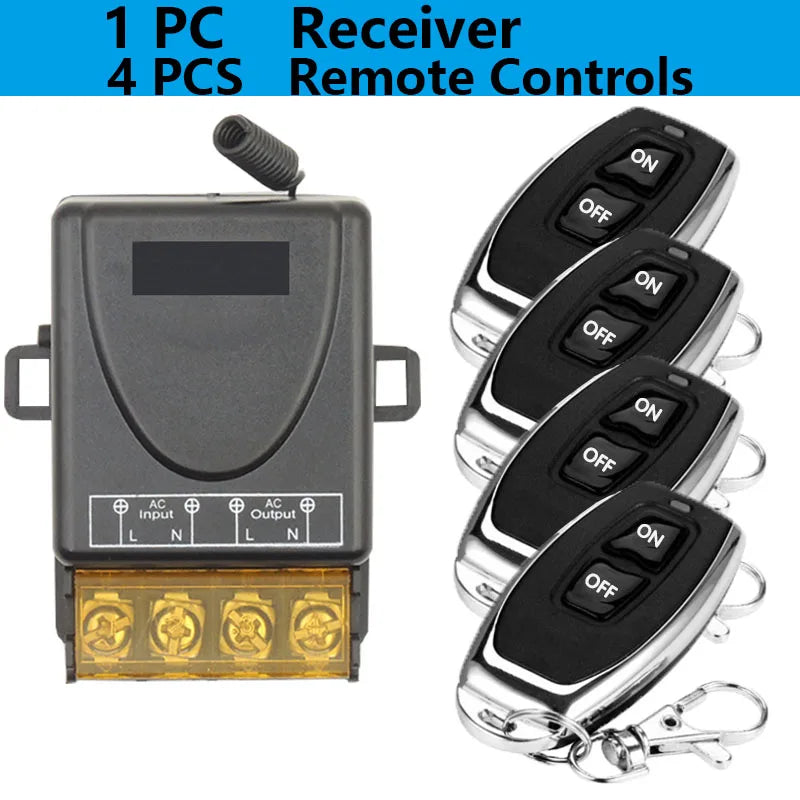

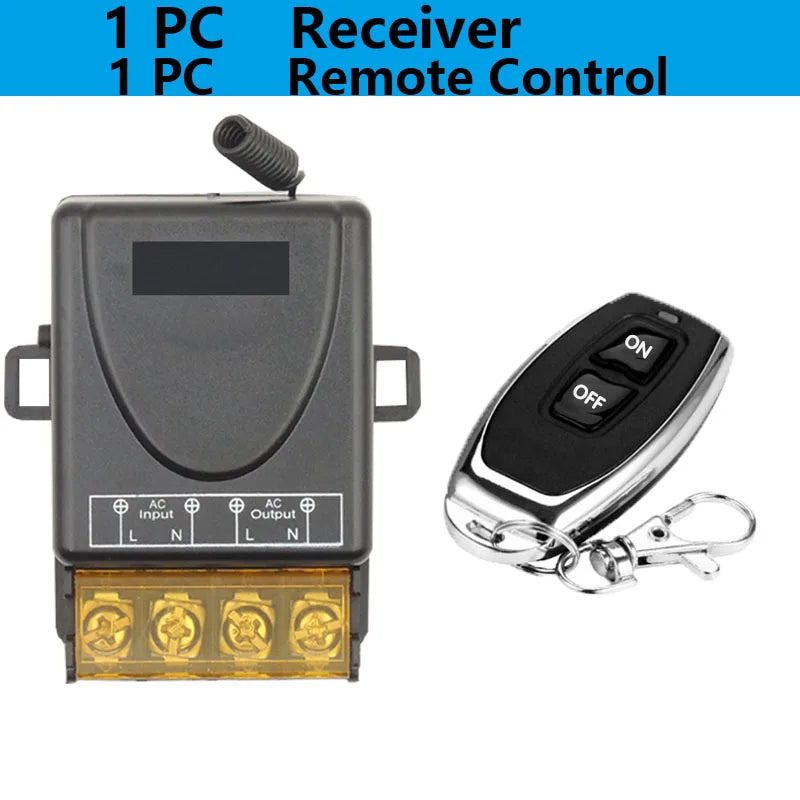

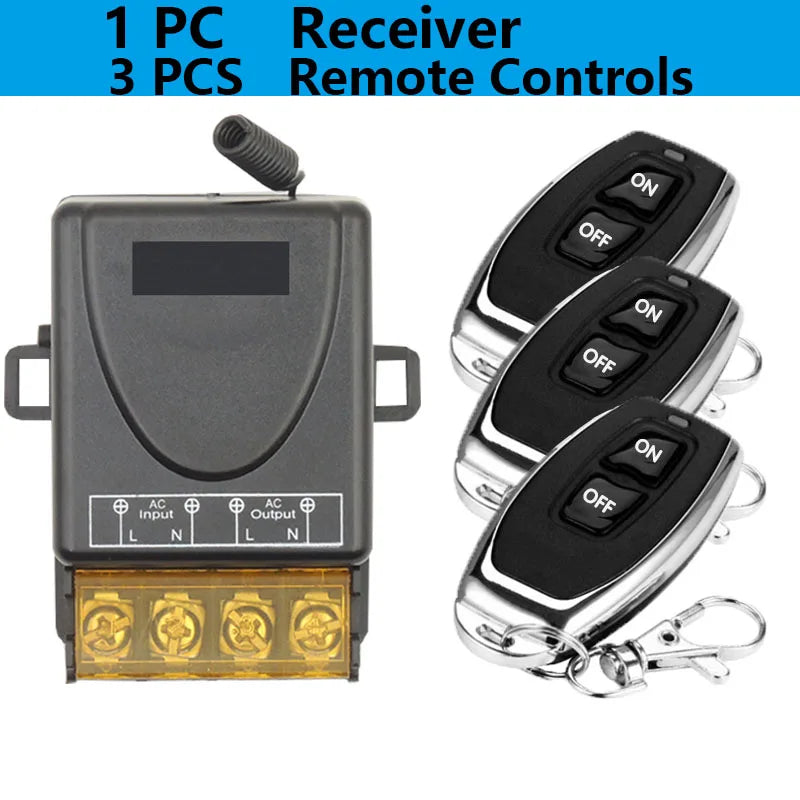

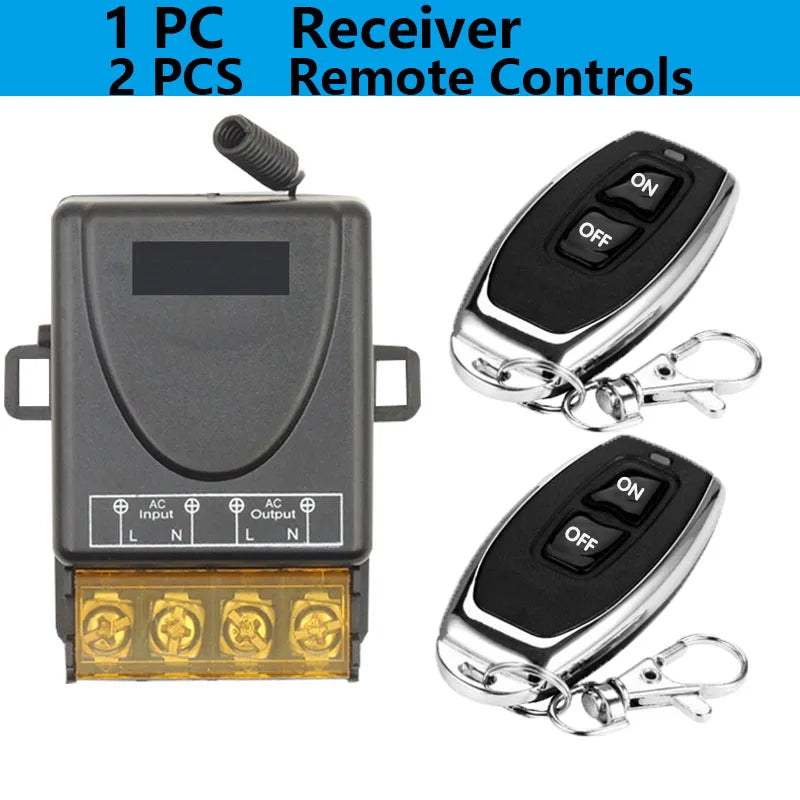

Product list
 There are various combinations in the options, which are convenient to use, please purchase according to actual needs.

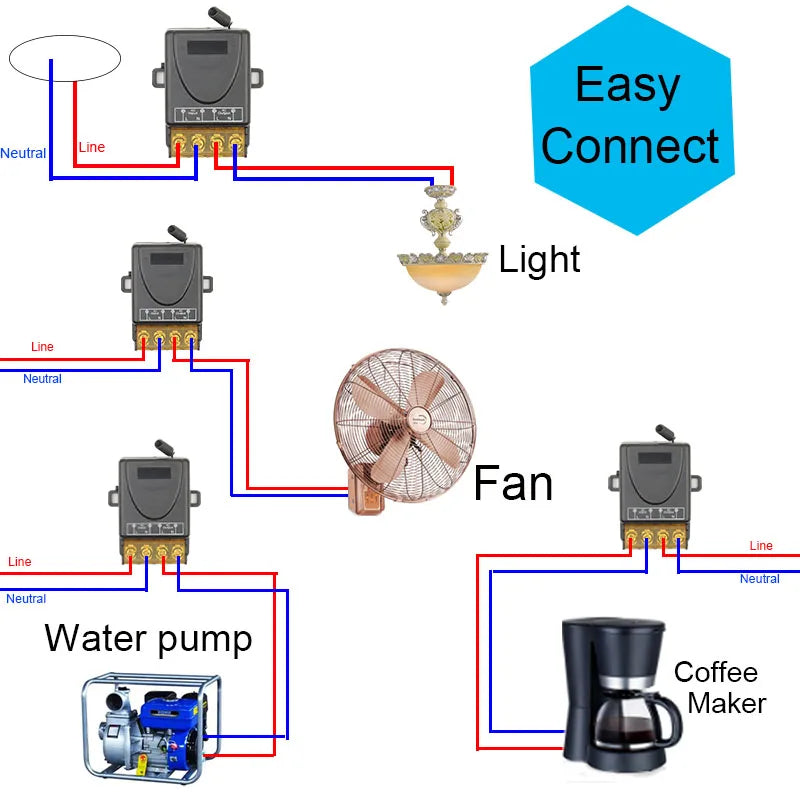

Simple to wire

TWO intelligent DIY control methods

Remote mode 1: Latched Mode
Use: Press *ON* button -> The device will turn ON;
Press *OFF* button ->The device will turn OFF

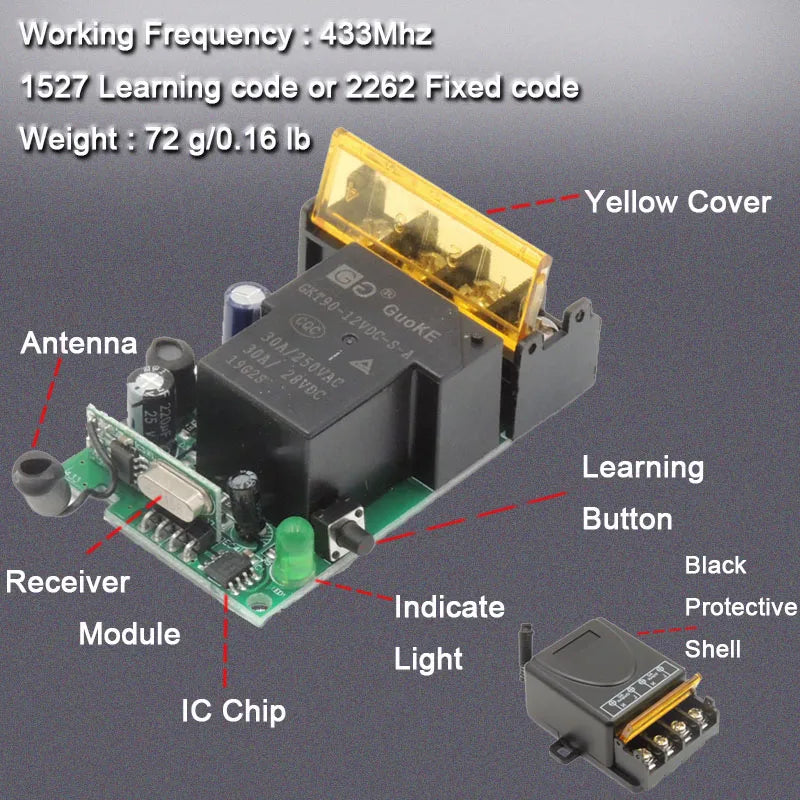

Setting: According to the picture above,Press the learning button on the Receiver  Three times.
Wait for a moment,then Press
*ON* button on the  Remote Control,the LED on the receiver board will flash;
then Press
*OFF* button on the  Remote Control,the LED on the receiver board will flash again.
then off indicating the button was learned.

How to clear the signal

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

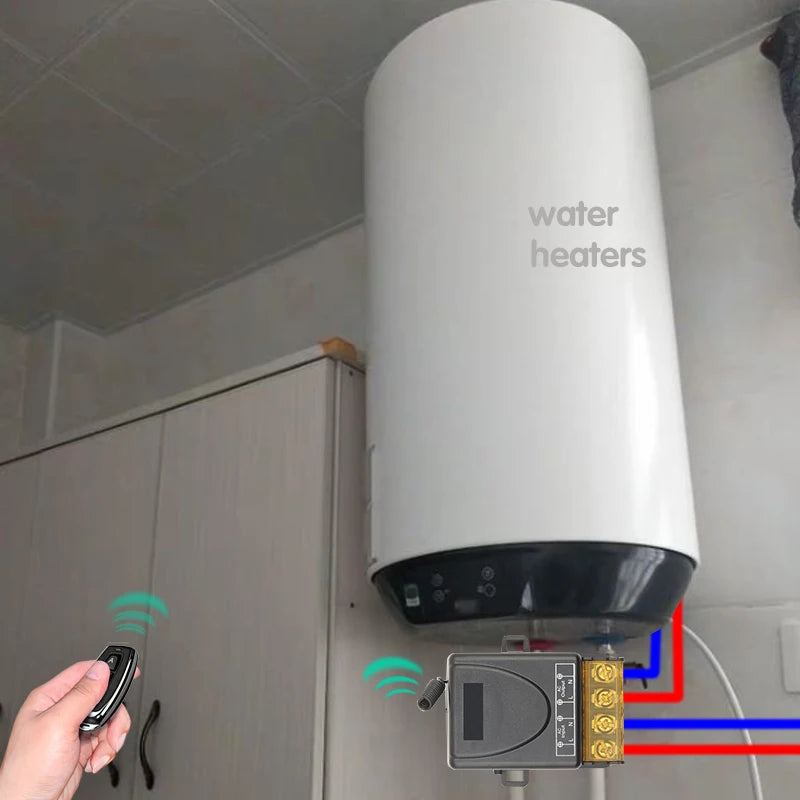

  Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device\ Exhaust system,Kettle,water heaters \ Signal transmission \ Electrical equipment
\Factory Home Office Ventilation Pump LED Light



  Features:
1:Multi switches Control One/Multi Lights Receiver in the meanwhile
2.Flexible and convenient control method

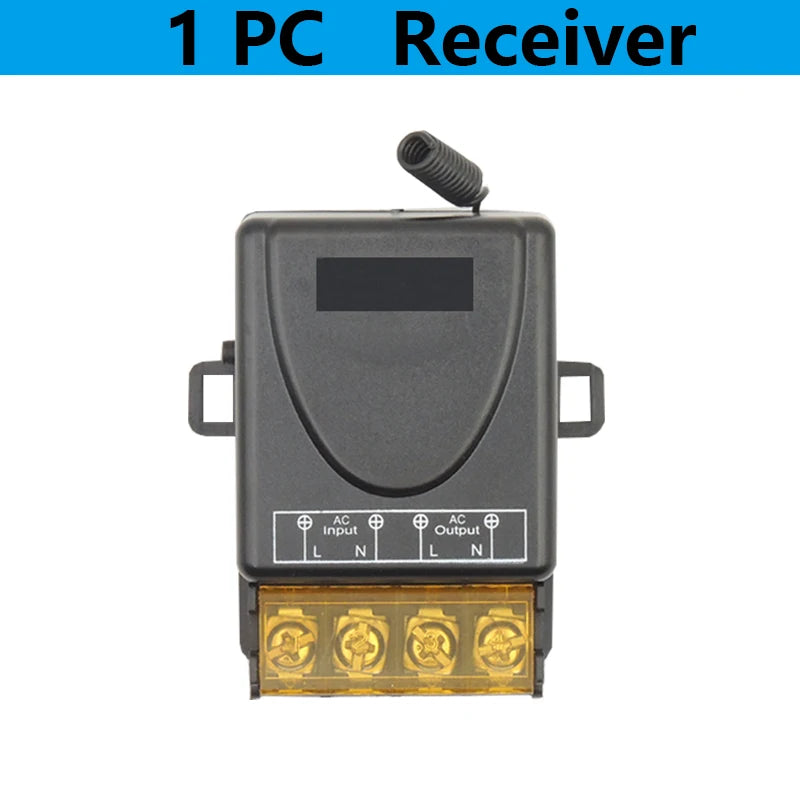

Technical Data Of Receiver
--Input Power:AC 85V-250V
--Max current: 30 A
--RF Frequency: 433Mhz
--Working temperature:-30~+80
--RF working mode:superheterodyne
--Receive sensitivity: >97dbm
--Transmitting distance: up to 50m (theoretical distance)
--Remote storage:25pcs
--Support remote type: Learning code 1527code, Fixed code
--Working mode:Momentary, Toggle, Latching mode
--Dimension :65*58*30(mm)

--Weight:66g

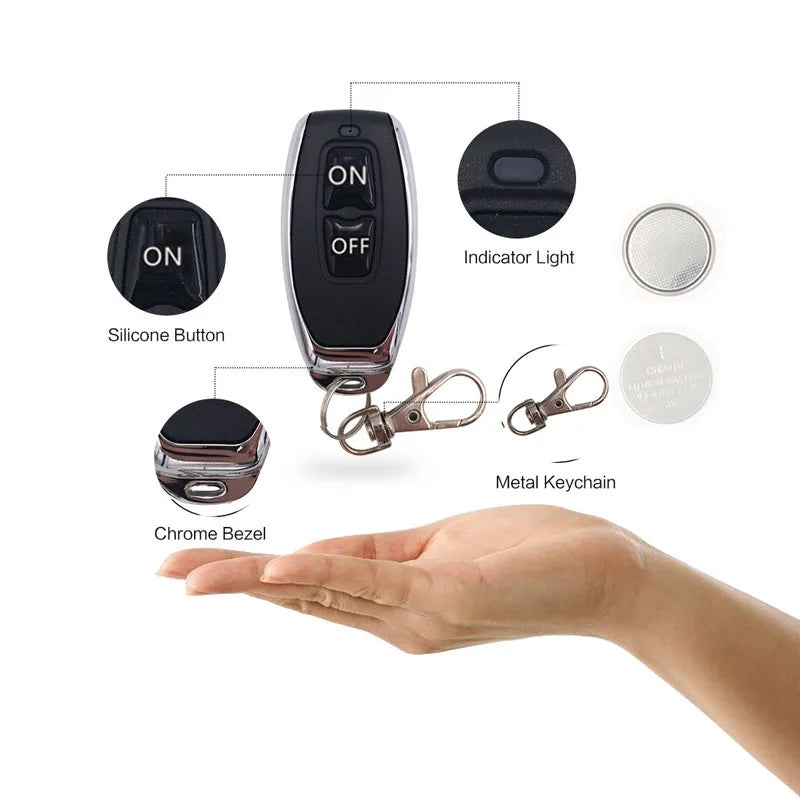

Remote controller

-- Control Distance :up to 50m (theoretical distance)
--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Battery  : CR2032 1pcs *  ( include )






On this product detailed page, there is a demonstration video for your reference.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*

The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
