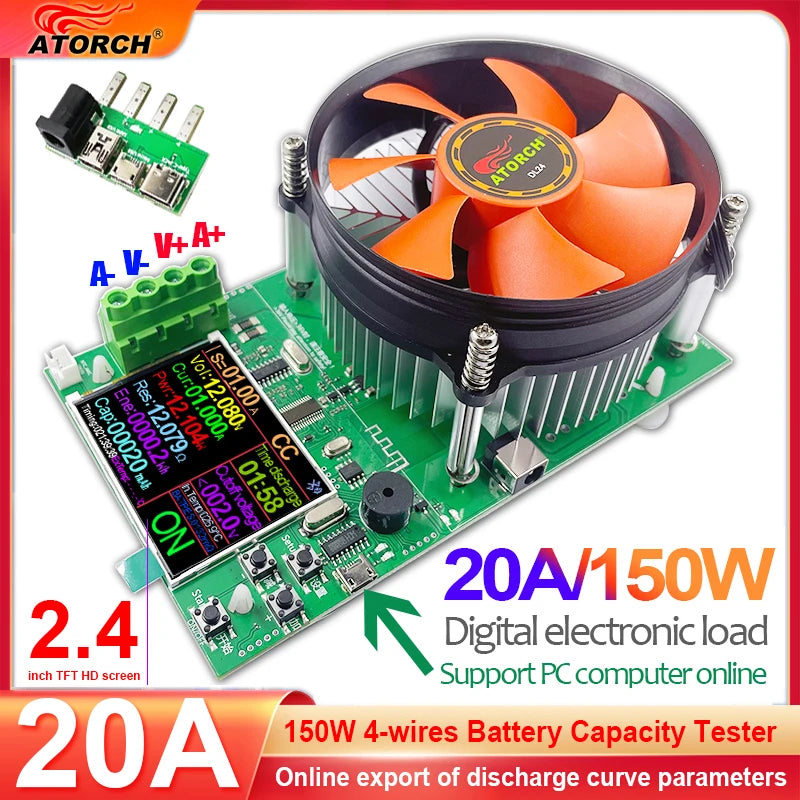

150W 四线电池容量测试仪 2.4 英寸 TFT 彩色屏幕 数控型电子负载电源放电测试仪 带欧盟适配器

节省20%
East Supplier PlatformSKU:1005005690292845-150W Option-CHINA

价格:
$84.69 $105.86

含税 运费在结账时计算

股票:
有现货(838 件),可随时发货

描述

规格

品牌名称: ATORCH

DIY 用品: 电气

产地: 中国大陆

类型: 家用电池测试仪

认证: CE

认证: RoHS

型号: DL24

负载电压-U: DC2V~200V

负载电流-I: 0~20A

负载功率-W: U*I≤150W(最大)

容量计量范围: 0~999999mAh/99999AH

能量测量范围: 0~999999mWh/99999Wh

显示模式: 2.4 英寸 TFT 彩色屏幕

测试模式: CC/CV/CP/CR

【产品特点】

本产品支持2~200V,0~20A,最大负载150W
过压、过流、过功率、过温保护,100V以下反接保护
支持定时关机和指定电压关机

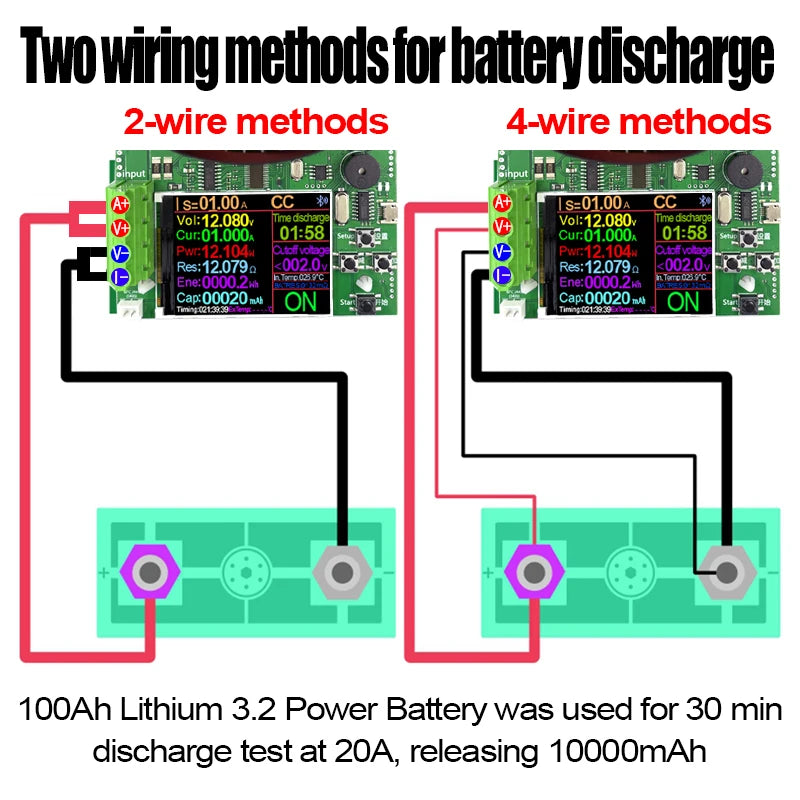

四线接线系统,容量测量更精确
负载功率大于10W或核心温度≥55℃时启动风扇主动散热

【参数】

负载电压-U:DC2V~200V
负载电流-I:0~20A
负载功率-W:U×I≤150W(最大)
为避免脉冲损坏,当负载电压≥120V时,总负载功率上限为60W
容量计量范围:0~999999mAh
能量测量范围:0~999999mWh

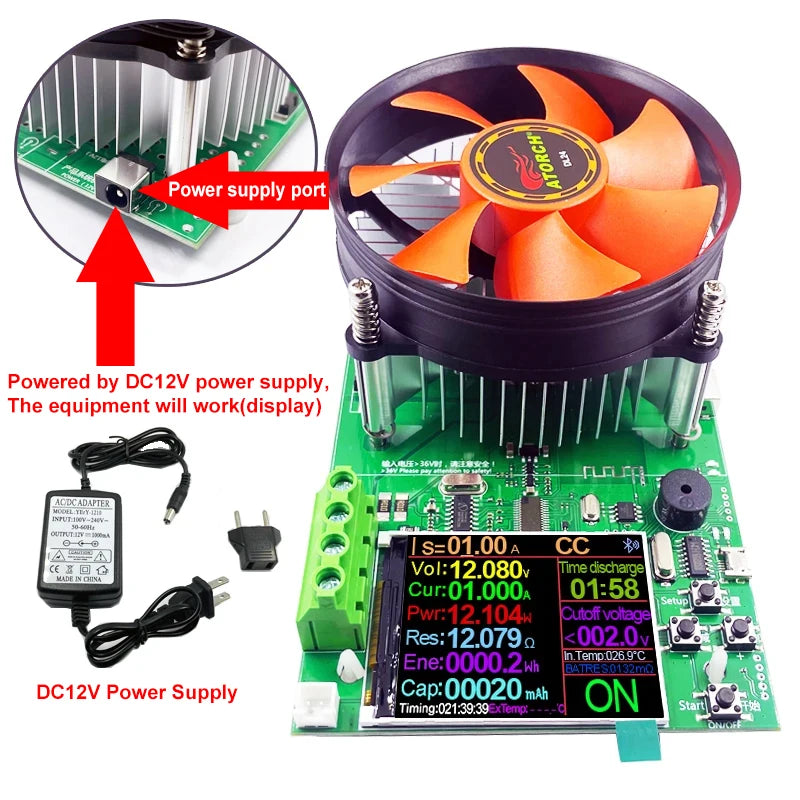

适用电源:DC12V 1A/PD12V PD电压触发电源(必须有PD充电器)

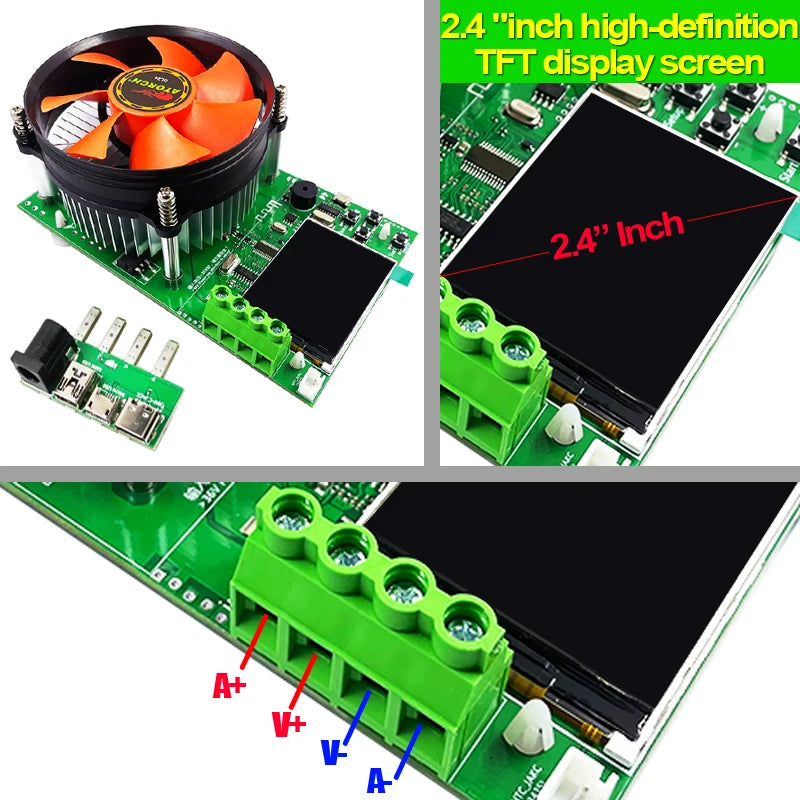

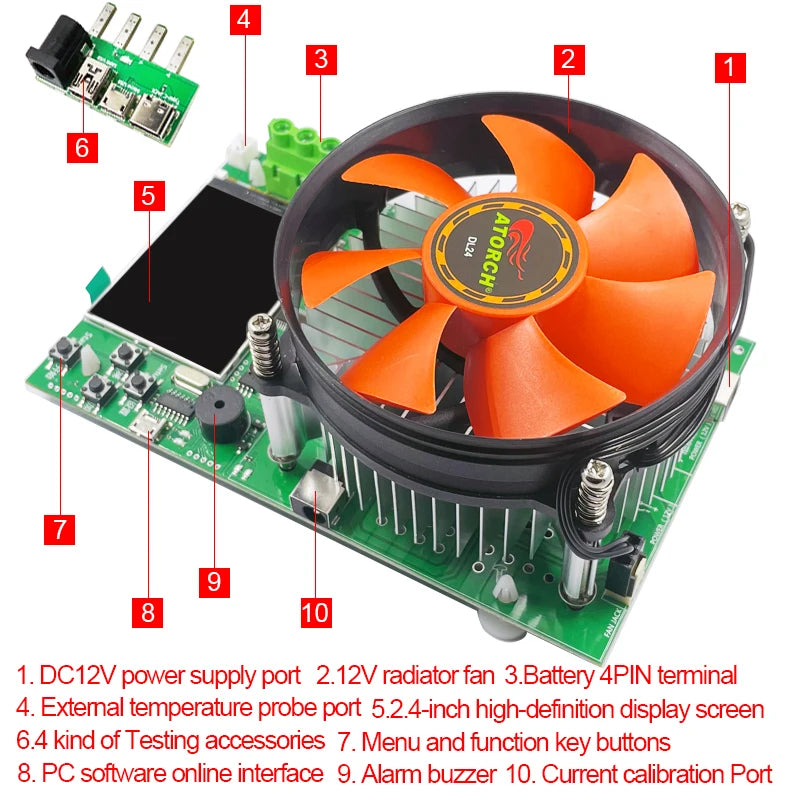

接线方式:四线制A+ V+ V- A-
显示模式:2.4英寸TFT彩色屏幕
控制操作:4个按键控制
散热模式:负载功率大于10W或核心温度≥55℃时启动风扇主动散热
过压保护:支持
过流保护:支持
过功率保护:支持
过温保护:核心温度超过100℃时停止负载(不可调节)
限时放电:支持
指定电压关机:支持

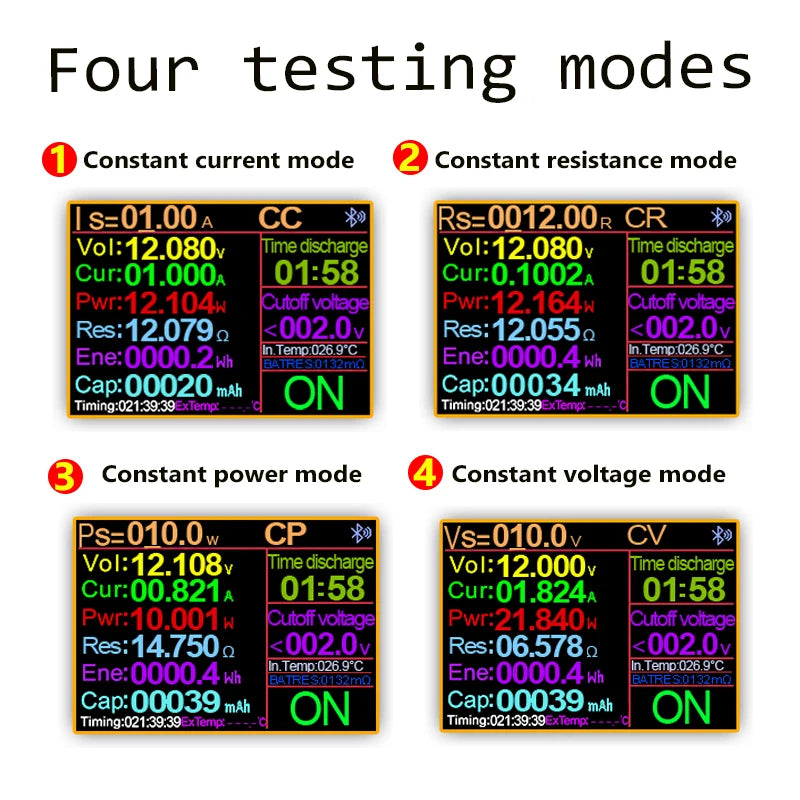

【4种测试模式】

1.恒流模式(CC):支持
2.恒阻模式(CR):支持
3.恒功率模式(CP):支持
4.恒压模式(CV):支持

【在线PC视图】: 支持

通过USB安卓数据线(不包含),可以连接电脑并下载CH340驱动。您可以查看曲线数据并导出时间、电压、电流和功率等数据
软件下载地址:
https://www.mediafire.com/file/9doutmib3epm2a1/01-DL24M_DL24_electronic_load_software_V1.0.2_version.zip/file

注意:

我们提供的电源规格是DC12V美标电源,并将配备美转欧适配器。如果您的国家无法使用此电源,建议不要购买,以免引起争议!
感谢您的支持!

【测试外部温度】: 支持

支持外部温度检测,薄膜温度探头可检测电池温度!

【恢复出厂设置】

① 设备开机
② 长按开始键进入设备后台
③ 选择恢复出厂设置
④ 长按开始键返回主测试界面

产品尺寸

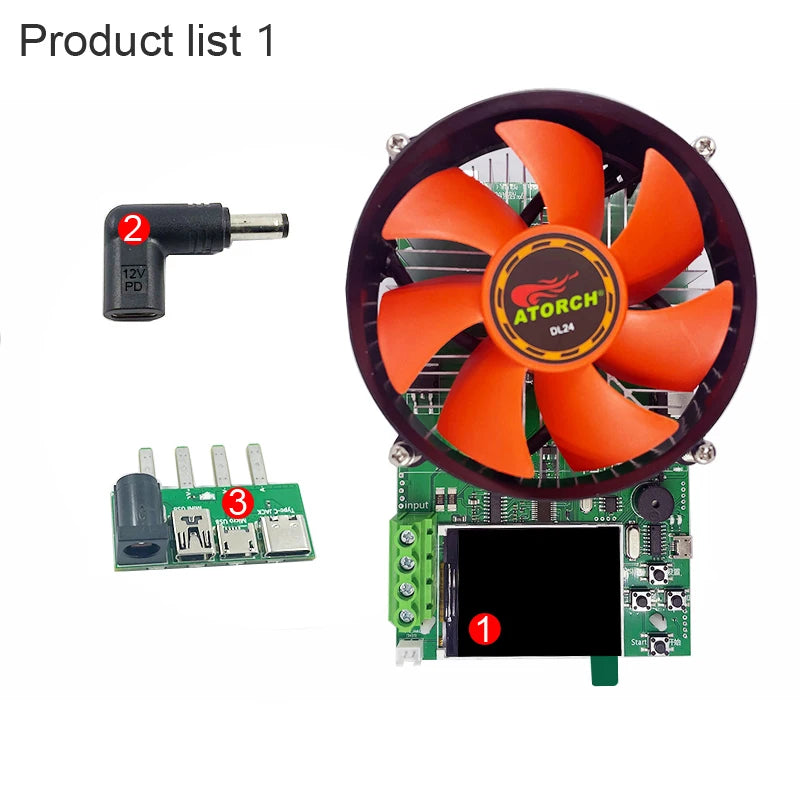

产品清单 1

1.150W 数控电子负载 x1
2.12V PD触发器 x1
3.4接口适配器 X1
4.用户手册 x1
(此包装不包含温度探头、DC12V电源和PD充电器
您可以使用自己的PD充电器(购买12V电压的)

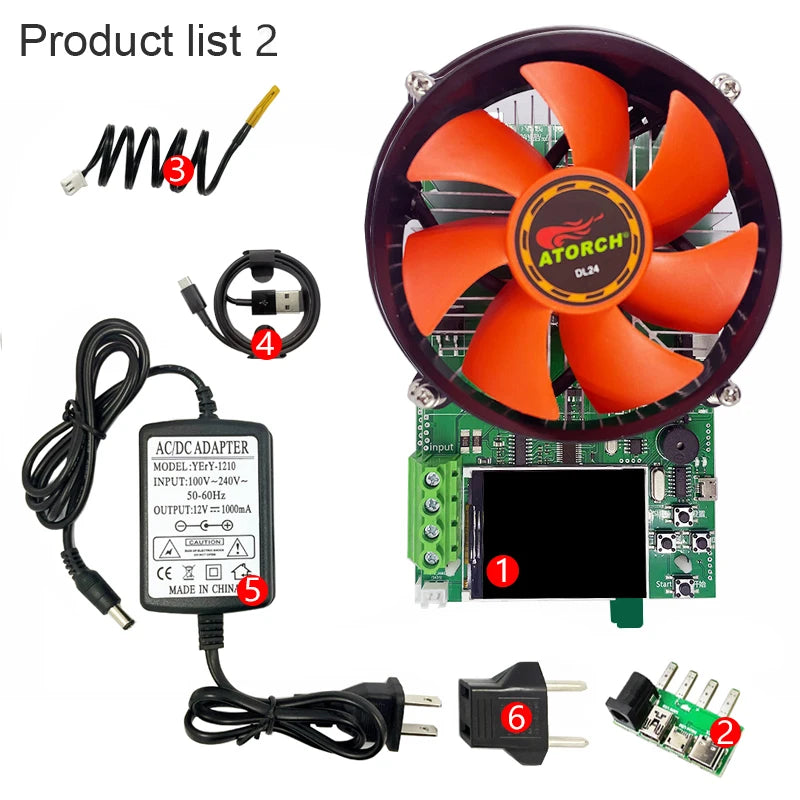

产品清单 2

1.150W 数控电子负载 x1
2.4接口适配器 X1
3.温度探头 x1
4.1M PC电脑在线线 x1
5.DC12V 1A电源 x1
6.美转欧适配器 x1
7.用户手册 x1

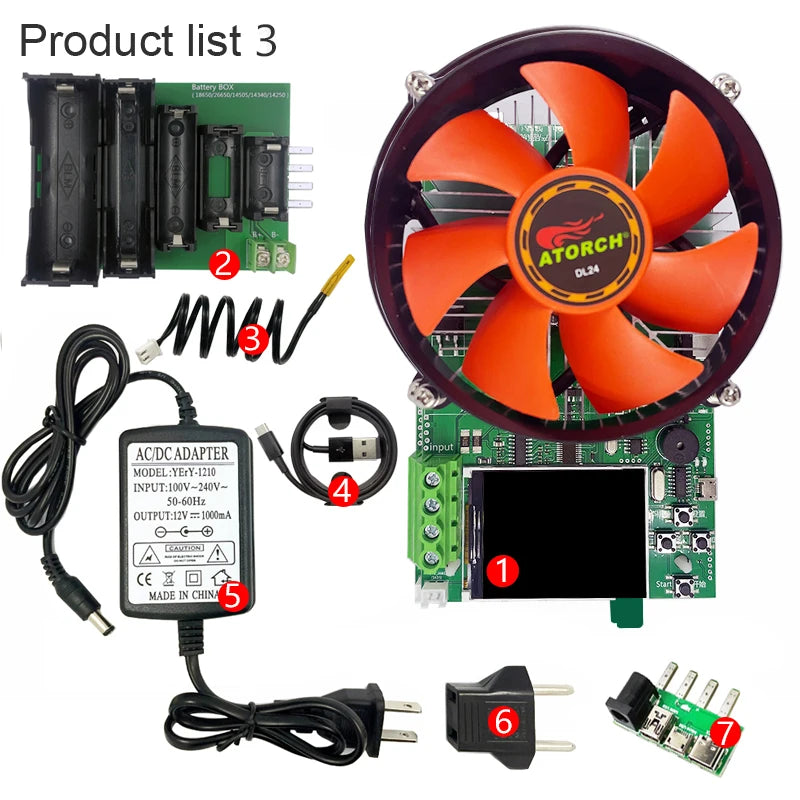

产品清单 3

1.150W 数控电子负载 x1
2.18650.26650.14505.14340.14250电池测试盒 X1
3.温度探头 x1
4.1M PC电脑在线线 x1
5.DC12V 1A电源 x1
6.美转欧适配器 x1
7.4接口适配器 X1
8.用户手册 x1

关于软件问题:

1. 我的电脑APP崩溃了,是什么问题?
A: 对于PC软件,由于可能存在兼容性问题,请在购买前先下载,如果可以下载并安装,则可以下单,否则不要购买。如果您在购买前未测试PC软件和APP功能,发现产品除了PC软件都能正常工作,我们拒绝退款。目前PC软件只支持win 7和win 10及以上系统。

2. 为什么有_BLE和_SPP模式,选择哪个?
A:我们的APP采用最新的连接技术,请不要在蓝牙模式下配对,直接点击我们提供的E-test(安卓APP名称)APP,点击蓝牙符号,E_test(苹果APP)选择_BLE蓝牙名称进行连接即可!
_BLE:在移动模式下连接
_SPP:在PC电脑模式下连接

3. 电脑配对密码是什么?
A:密码是“0000”或“1234”

4. 它支持WIFI模式吗?
A:不支持,通过无线蓝牙模式连接!


Customer Reviews

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Derek W.
Saved me from replacing perfectly good batteries

Customers bring in power tools with 'dead batteries' and half the time it's the charger or the tool's power management, not the cells. This tester lets me give them a definitive answer with data to back it up. The under-voltage cutoff protection means I can run an unattended discharge test overnight without worrying about destroying the battery. Paid for itself in the first month through avoided unnecessary battery replacements.

O
Oscar T.
The lab-grade features at a hobbyist price

I teach electronics at a makerspace and this tester is now our go-to for battery characterization workshops. The four-wire measurement concept alone is worth the price as a teaching tool — students can literally see the difference between two-wire and Kelvin sensing by switching connections. The constant-resistance mode is perfect for demonstrating Peukert's law. The CNC aluminum housing takes abuse in a shared workshop environment.

L
Laura K.
Good for LiFePO4 bank testing, wish it had higher power limit

I use this to verify 48V LiFePO4 battery banks before commissioning solar installations. The four-wire measurement gives me accurate capacity numbers that I can provide to clients as documentation. At 150W, it's sufficient for individual cell characterization but a bit slow for full 5kWh bank testing — that's more a limitation of the price class than the product. The CSV logging works flawlessly with our reporting workflow.

N
Nathan J.
Essential tool for FPV pilots

I verify every LiPo pack before a long-range flight and this tester has already caught two packs that would have put my quad in a field 3km out. The constant-power discharge mode is particularly useful for simulating actual flight loads rather than just draining at constant current. The TFT display is clear and the fan cooling is effective — I've run 150W tests for hours without thermal throttling.

B
Benjamin C.
Four-wire Kelvin measurement is the real deal

I rebuild 18650 packs from recycled laptop batteries and the difference between two-wire and four-wire measurement is night and day. My previous tester was under-reporting capacity by 8-12% due to contact resistance in the cell holders. This tester's Kelvin sensing eliminated that entirely. The CSV export means I can document every cell's discharge curve for customers. Worth every cent.
