The Machine Speaks. Do You Understand It?
Modern vehicles are not merely mechanical — they are rolling data centers, generating thousands of real-time signals across dozens of ECUs. The technician who can decode this digital dialogue commands the bay. The Autel MaxiSYS MS906 Pro is not a code reader. It is a complete vehicular intelligence platform, purpose-built for the professional who refuses to guess when the answer already exists in the CAN bus.

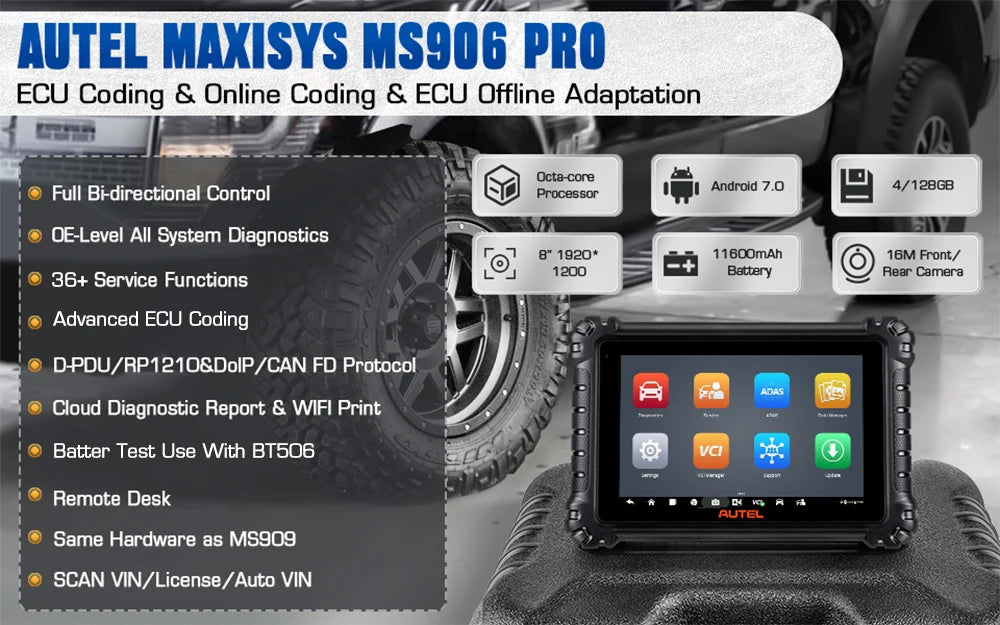

Built on Autel's MaxiSYS architecture with bi-directional control, the MS906 Pro performs active tests — actuate solenoids, cycle ABS pumps, recalibrate ADAS sensors — not passive observation. With 36+ service functions spanning oil resets, EPB, SAS, DPF, and battery registration, every specialty function lives in one device. DoIP and CAN FD protocol support ensures compatibility with the latest generation of European and Asian platforms, from the 2024 BMW iX to the newest Mercedes EQ series. The 8-inch sunlight-readable touchscreen and Android operating system make navigation intuitive; the quad-core processor makes it instantaneous.
AutoAuth authentication for FCA/SGWI vehicles eliminates the need for a separate gateway bypass tool. Topology mapping visualizes the entire vehicle network architecture on-screen. This is the scanner that renders the dealership's own diagnostic bay redundant — and puts that capability in your hands, wherever the vehicle sits.
Diagnosis is not about reading codes. It is about reading the machine's mind.
Key Features
- ✦ Bi-directional active testing — actuate components, run system cycles, verify repairs in real time

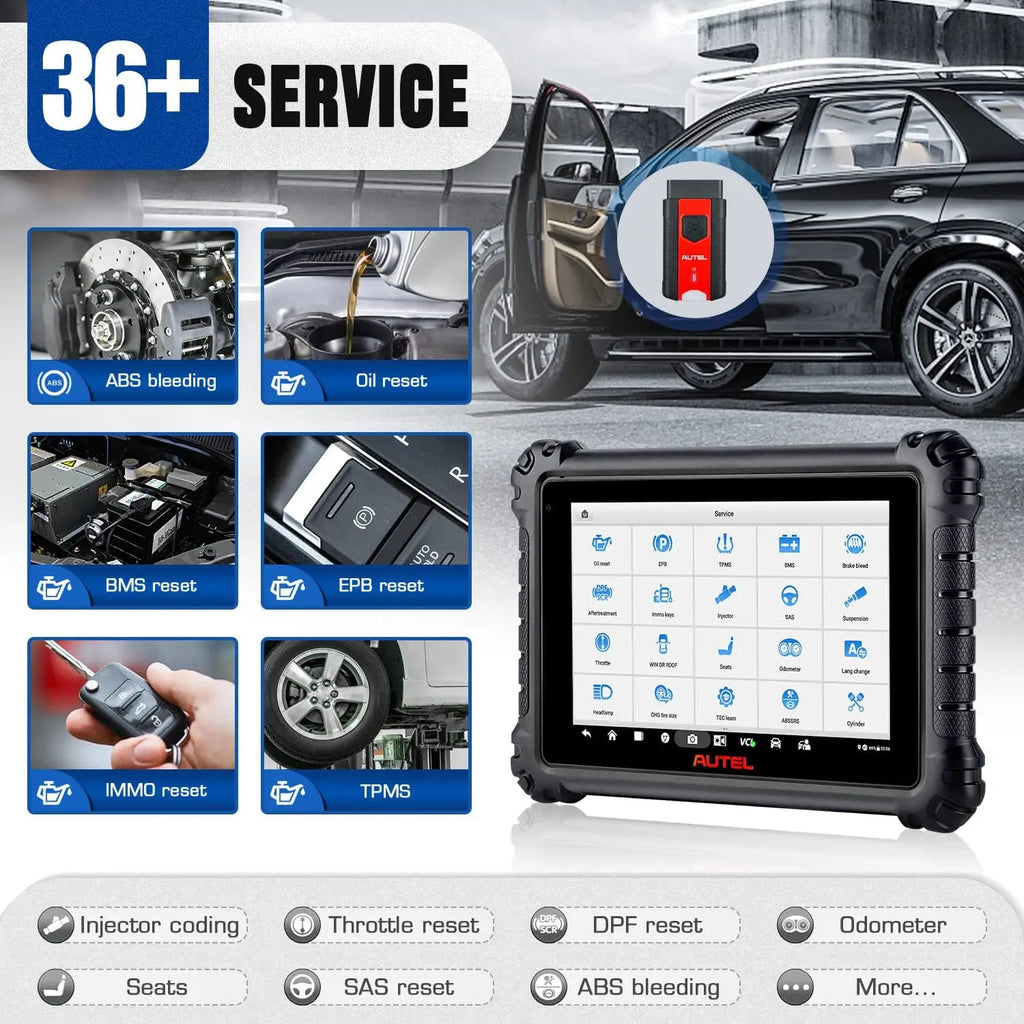

- ✦ 36+ specialized service functions: Oil Reset, EPB, SAS, DPF, BMS, ABS Bleed, Throttle Relearn, Injector Coding
- ✦ DoIP (Diagnostics over IP) and CAN FD protocol support for 2020+ vehicle platforms
- ✦ AutoAuth authenticated access for FCA/SGW vehicles — no separate bypass tool required
- ✦ Advanced ECU coding and programming for BMW, VW/Audi, Mercedes, Porsche, Toyota, Ford, GM
- ✦ Network topology mapping — visualize all ECUs and their communication pathways on-screen

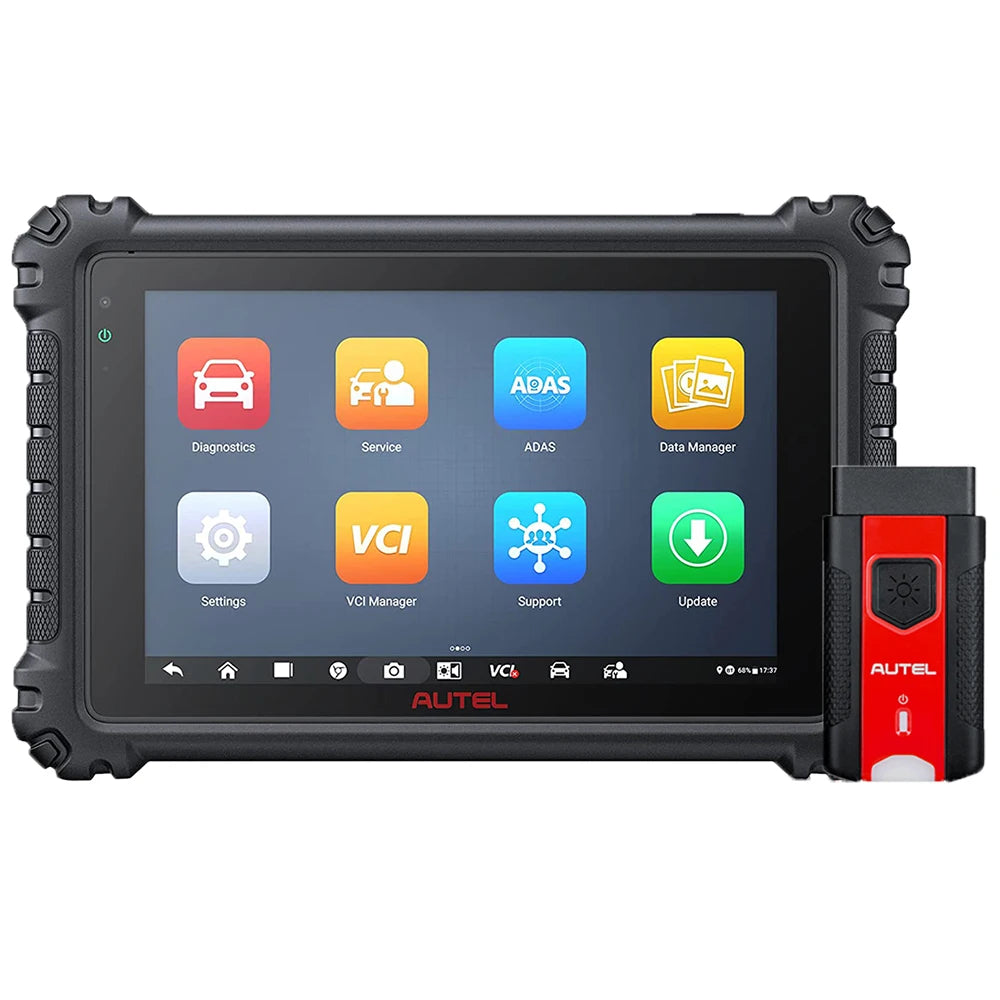

- ✦ 8-inch 1920x1200 sunlight-readable display with quad-core Android processor
Technical Specifications
- Brand: Autel
- Model: MaxiSYS MS906 Pro
- Display: 8.0" IPS LCD, 1920 x 1200, capacitive touch
- Processor: Quad-core, Android 10 OS
- Connectivity: Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, USB Type-C
- Protocols: OBDII, EOBD, DoIP, CAN FD, J2534 Pass-Thru, RP1210
- Vehicle Coverage: 80+ US, Asian, and European makes (1996-2025)
- Service Functions: 36+ including Oil Reset, EPB, SAS, DPF, BMS, ABS Bleed, Injector Coding, Throttle Relearn
- Battery: 11,600 mAh rechargeable Li-ion
- AutoAuth: Supported for FCA/Secure Gateway (SGWI) vehicles
Application Scenarios
Engineered for independent automotive repair shops, mobile diagnostic services, fleet maintenance operations, and master technicians who demand dealership-level capability without the dealership overhead. The MS906 Pro excels in multi-brand environments where a single tool must cover European luxury vehicles alongside domestic trucks and Asian imports. From pre-purchase inspection to advanced ECU programming, from diesel DPF regeneration to EV battery health assessment, this scanner consolidates a toolbox of specialty equipment into one platform. It is the tool you reach for when the customer's complaint cannot be reproduced — because the freeze-frame data captured it before they even pulled into your bay.
Frequently Asked Questions

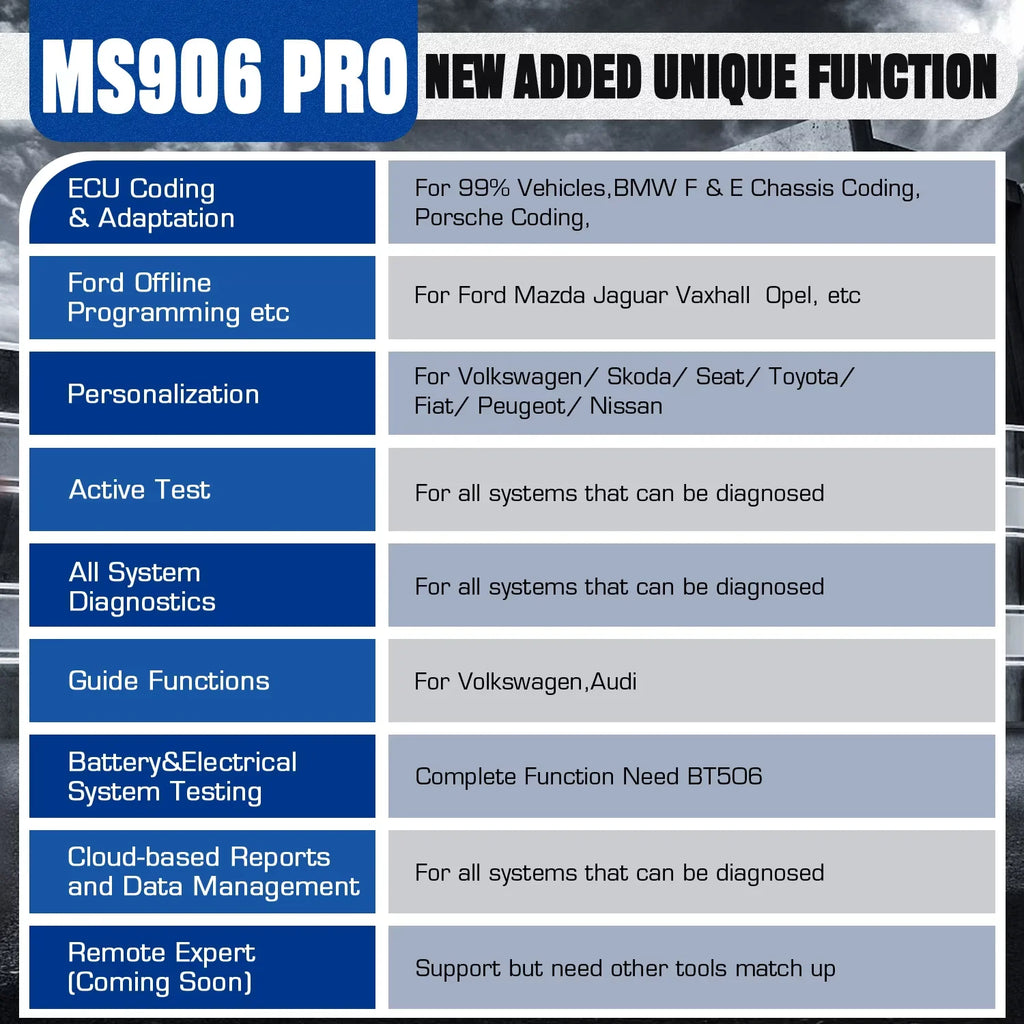

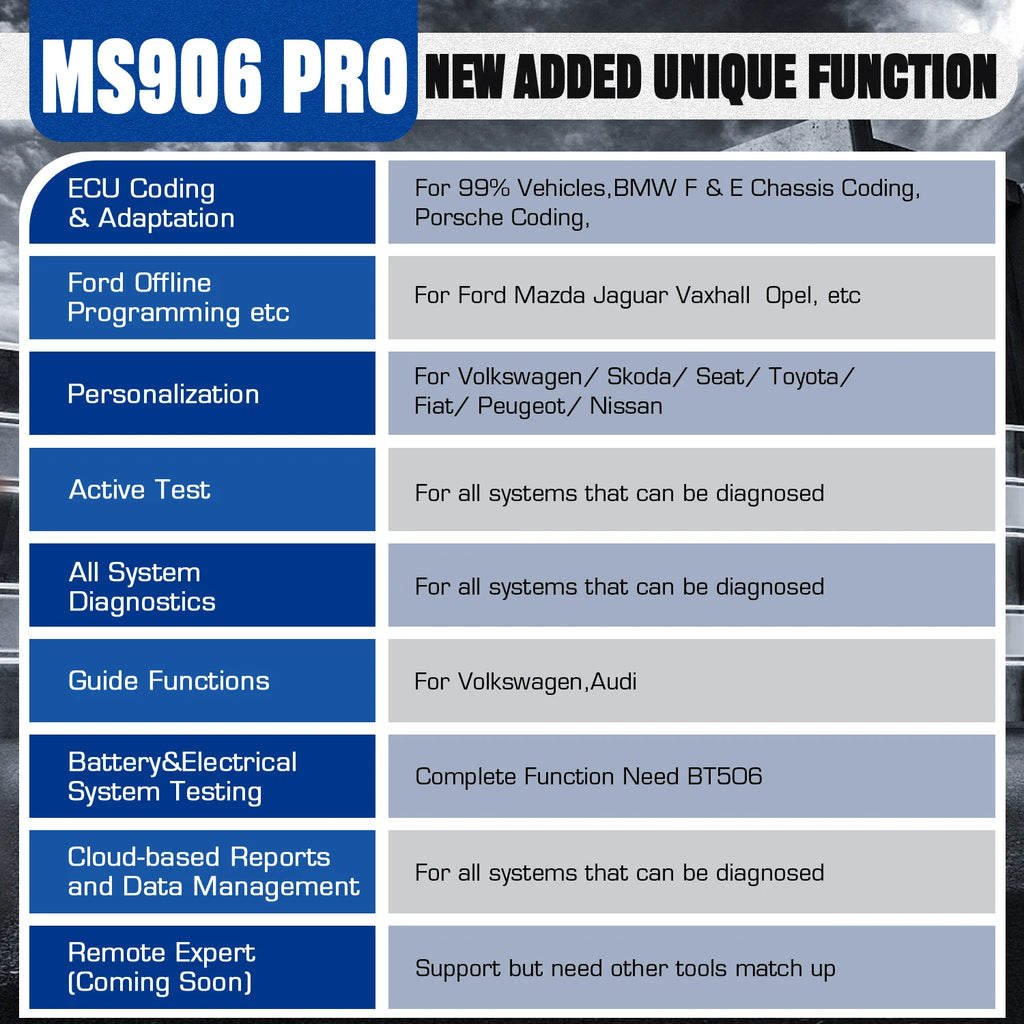

Q: What is the difference between the MS906 Pro and the standard MS906?
A: The MS906 Pro adds bi-directional active testing, DoIP and CAN FD protocol support, topology mapping, and AutoAuth for FCA vehicles. It is a generational leap in diagnostic capability, not a minor refresh.
Q: Can this perform ECU coding and programming?
A: Yes. The MS906 Pro supports advanced ECU coding and programming functions for BMW, VW/Audi, Mercedes-Benz, Porsche, Toyota, Ford, and General Motors, among others. Coverage depth varies by make and model year.
Q: Does it work with electric and hybrid vehicles?
A: Absolutely. The MS906 Pro covers EV and hybrid systems including battery management, high-voltage system diagnostics, and electric drive motor analysis for supported manufacturers.
Q: Are software updates included?
A: One year of free software updates is included with the device. Updates add new vehicle coverage, new service functions, and interface improvements via Wi-Fi download.
Q: What vehicles require AutoAuth authentication?
A: 2018+ FCA (Fiat Chrysler Automobiles) vehicles with Secure Gateway modules — including Jeep, Dodge, Ram, Chrysler, and Alfa Romeo — require AutoAuth. The MS906 Pro has this authentication built in.
Q: Can I use this for pre-purchase vehicle inspections?
A: It is one of the best tools available for PPIs. The topology map shows every ECU present, the health report flags hidden issues, and the freeze-frame data reveals problems the seller may not even know about.
Q: Is training or certification required to operate the MS906 Pro?
A: Professional automotive knowledge is assumed. The interface is intuitive, but bi-directional tests and coding functions should be performed by technicians who understand the systems they are controlling. Autel provides extensive onboard help files and online training resources.
