0-1200mm 木工平行导轨系统 雕刻机开槽轨道 电圆锯平行滑轨

节省20%
East Supplier PlatformSKU:1005007849451907-inch Type-United States

价格:
$191.30 $239.13

含税 运费在结账时计算

股票:
有现货(30 件),可随时发货

描述

规格

应用: 木工工具

品牌名称: 无品牌名称

DIY 用品: 木工

高关注化学品:

材料: 铝合金

型号: 铝合金平行导轨

产地: 中国大陆

包装:

类型: 组合

是否定制:

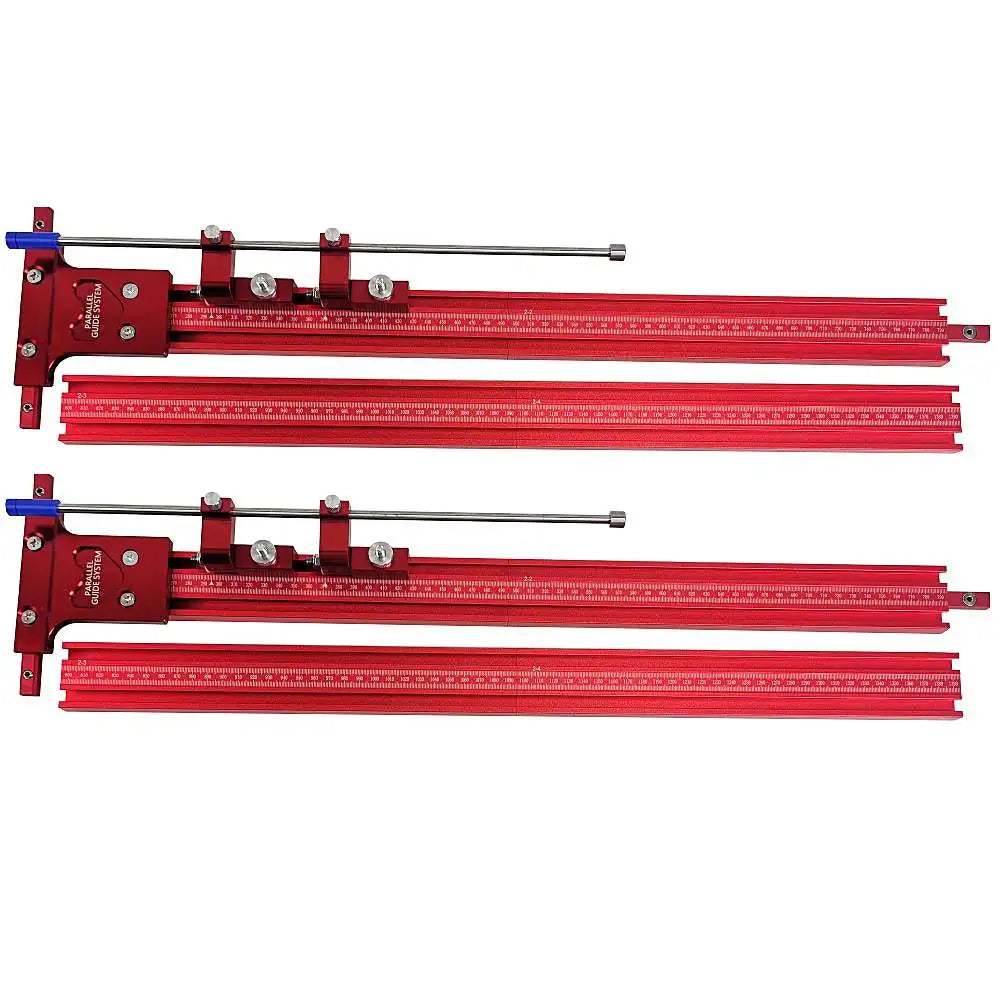

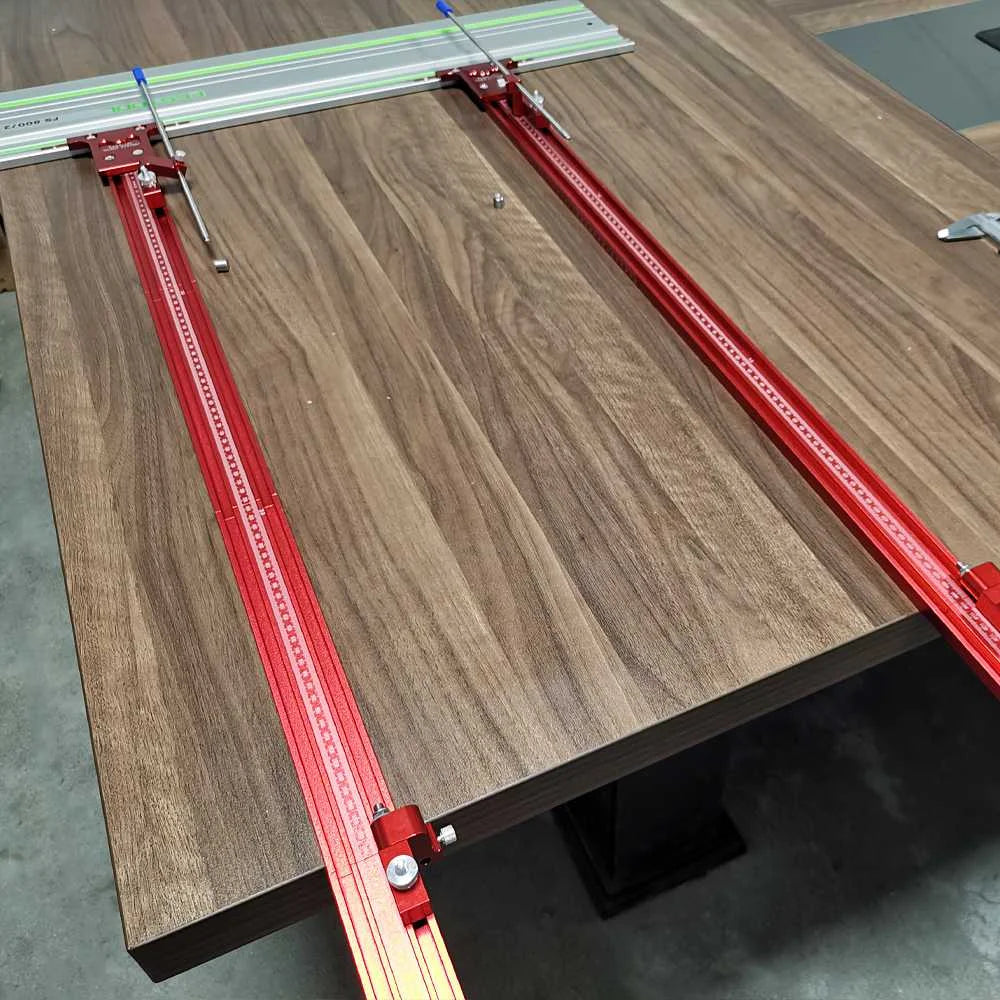

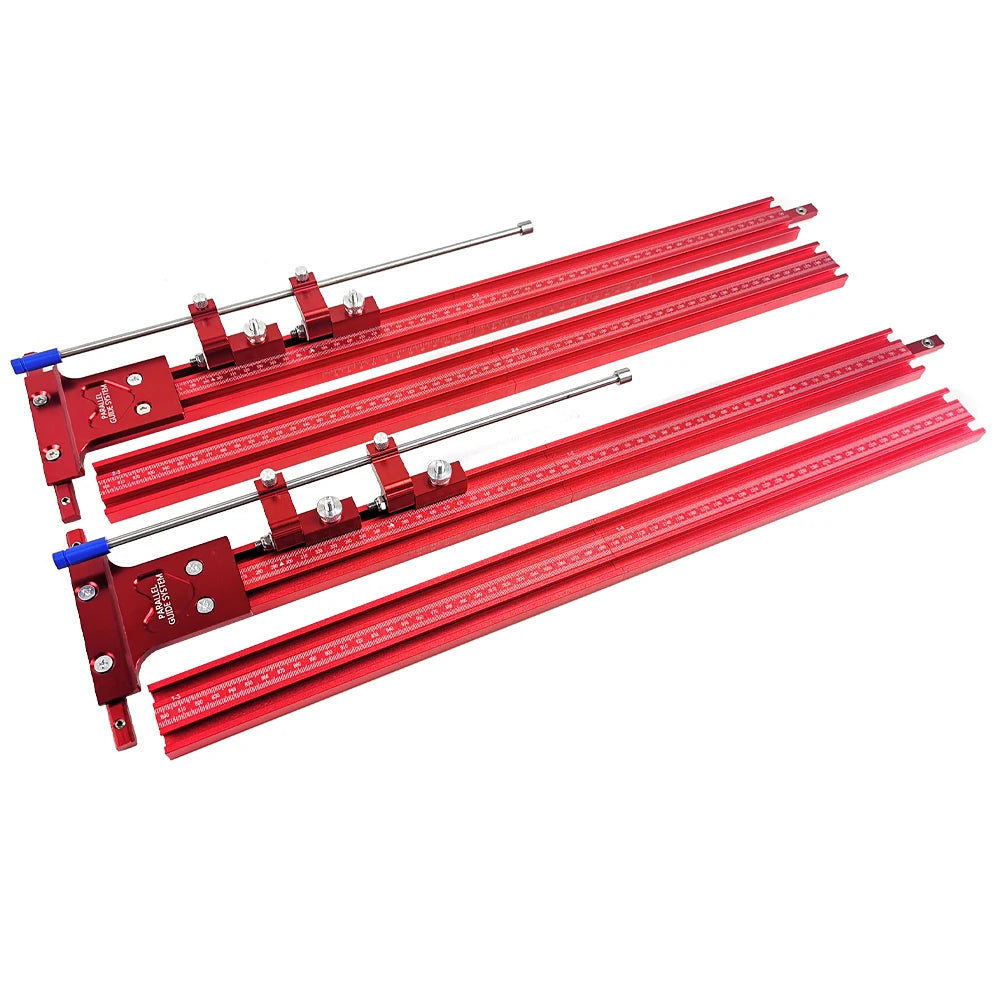

用于轨道锯导轨重复切割的平行导向系统,适用于 Festool 木工工具
1. 包括校准标记
2. 侧面刻度用于薄切
3. 刻度提高所有
4. 提供毫米和英寸版本


规格:
材质:铝合金
颜色:红色
选择:毫米类型/英寸类型
包装尺寸:398*288*77MM
轨道数量:8
总长度:1200MM


特点:

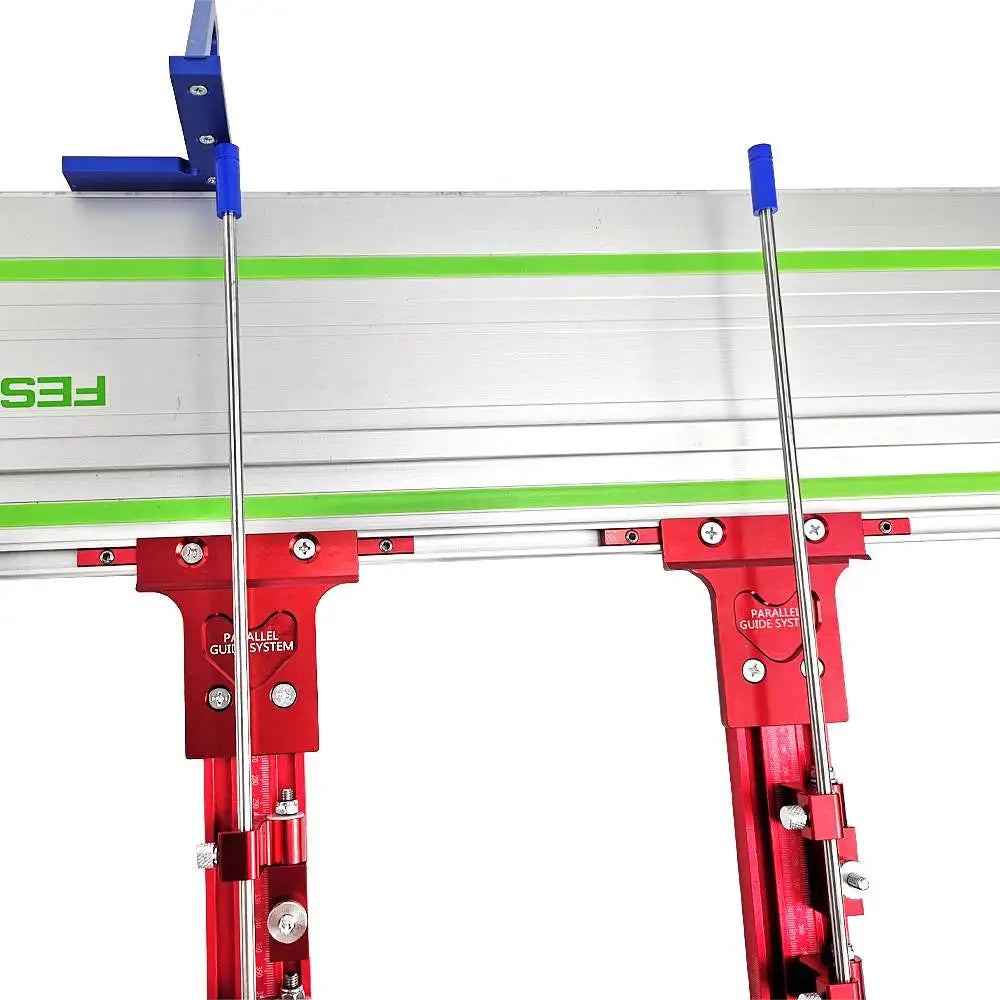

1. 适用于 festool 或Makita 导轨。
2. 轨道可拼接,刻度清晰。
3. 轨道出厂为 1200MM,由 4 小段拼接而成:0-300/300-600/600-900/900-1200MM。
4. 保护轨道,螺钉接触面积大,扳手可穿过螺钉预测位置,操作过程中轨道不会损坏。

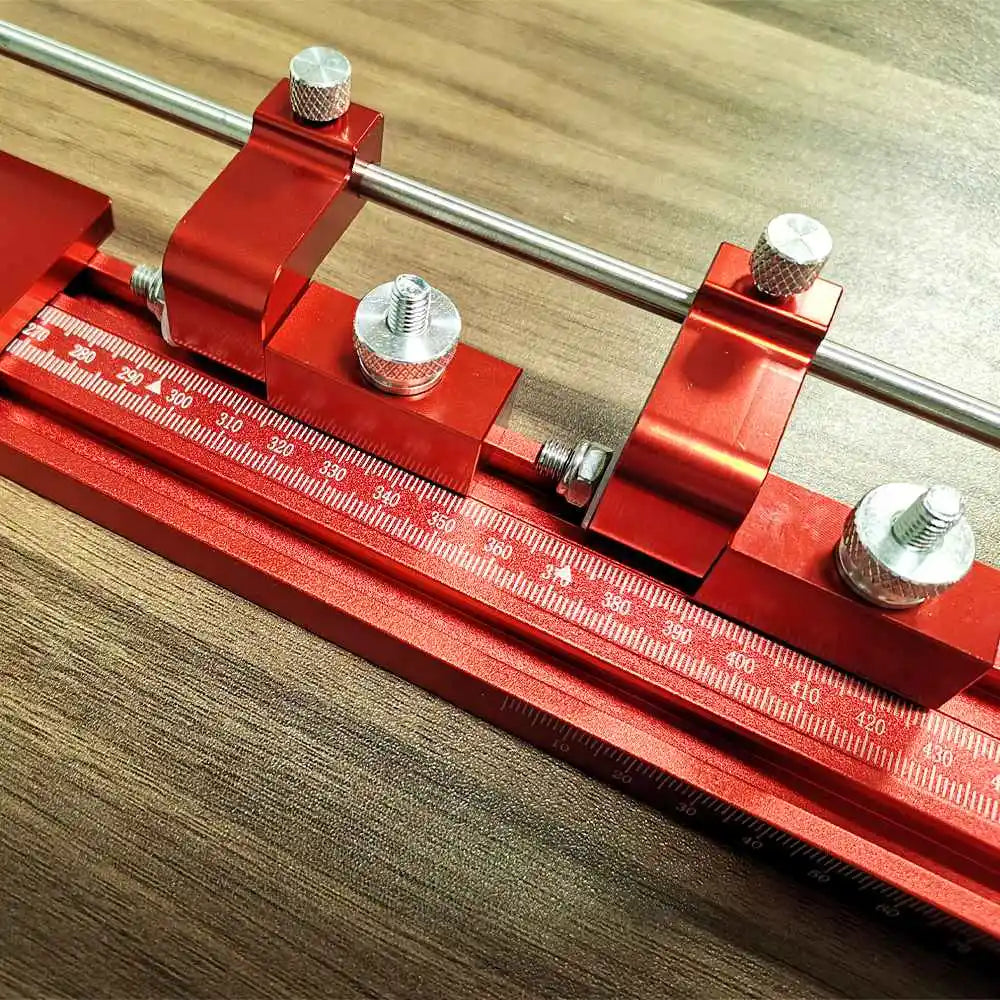

5. 限位挡块位置可随意调整,平行轨道,限位挡块。

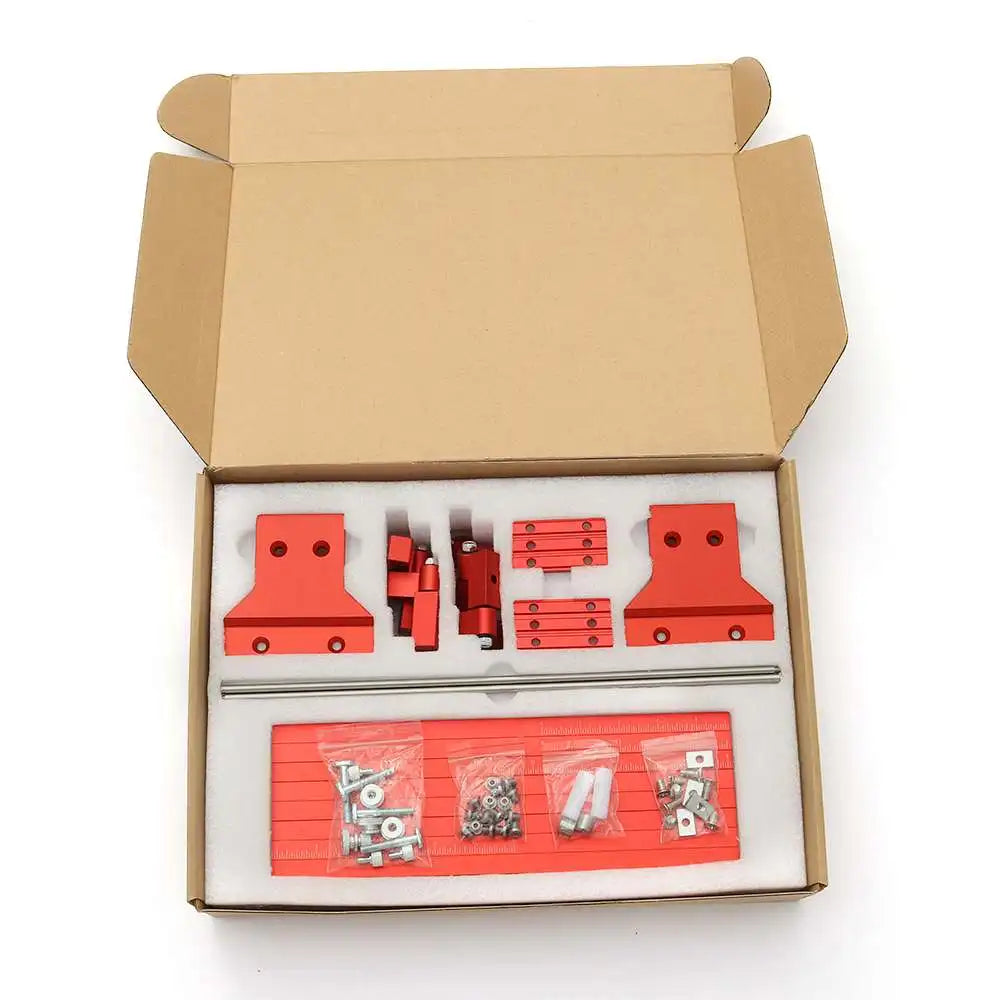

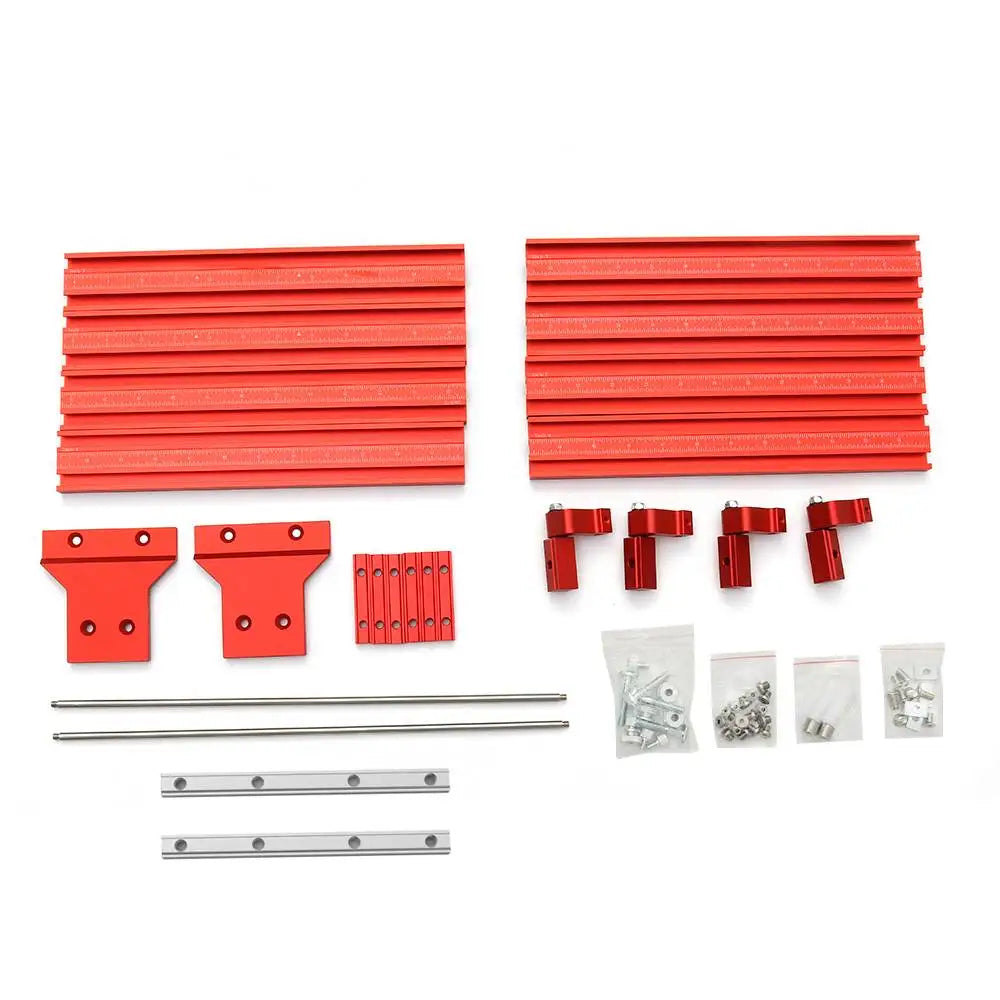

包装内含:
2 件 主体支架,用于安装平行导向系统
8 件 激光刻度两用轨道
2 件 375MM 滑块
4 件 17.8MM 滑块
6 件 63MM 滑块
2 件 153MM 滑块
4 件 M-16MM 螺钉
4 件 M-10MM 螺钉
2 件 蓝色塑料塞
2 件 不锈钢塞
1 件 十字螺丝刀
1 件 扳手
2 件 连接板
4 件 限位挡块


Customer Reviews

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Ryan Johnson
Huge upgrade from a clamped straight edge

Upgraded from using a aluminum straight edge and clamps for guided cuts. The difference is night and day — the bearing carriage eliminates the friction and wandering that happens when you're just following an edge by hand. Setup time is much faster. The router capability is a bonus I didn't expect to use as much. Only reason for 4 stars: the adapter plate mounting requires some trial-and-error to get the offset perfect. Once dialed in, it's rock solid.

L
Lisa Peterson
Perfect for on-site cabinet installation

As a kitchen installer, I'm constantly making final-fit cuts on site where bringing a table saw isn't practical. This guide rail with my cordless circular saw handles everything — filler strips, toe kicks, panel adjustments. The bearing carriage means consistent offset every single cut, no measuring and re-measuring. The anodized finish slides smoothly and doesn't mark the workpieces. Takes under a minute to set up and clamp. Best investment I've made this year for site work.

A
Andreas Mueller
Cut quality rivals a sliding table saw

I was skeptical that a guide rail could replace a panel saw for breaking down sheet goods, but this system proved me wrong. The aluminum extrusion is dead straight — I checked with a Starrett straightedge and couldn't find deviation. Mounted my Makita circular saw to the carriage and cut 18mm birch ply with edges clean enough for immediate edge-banding. The bearing-guided slide action is smooth and the clamping track on the underside prevents any shift during cuts. This has changed my workshop workflow completely.
